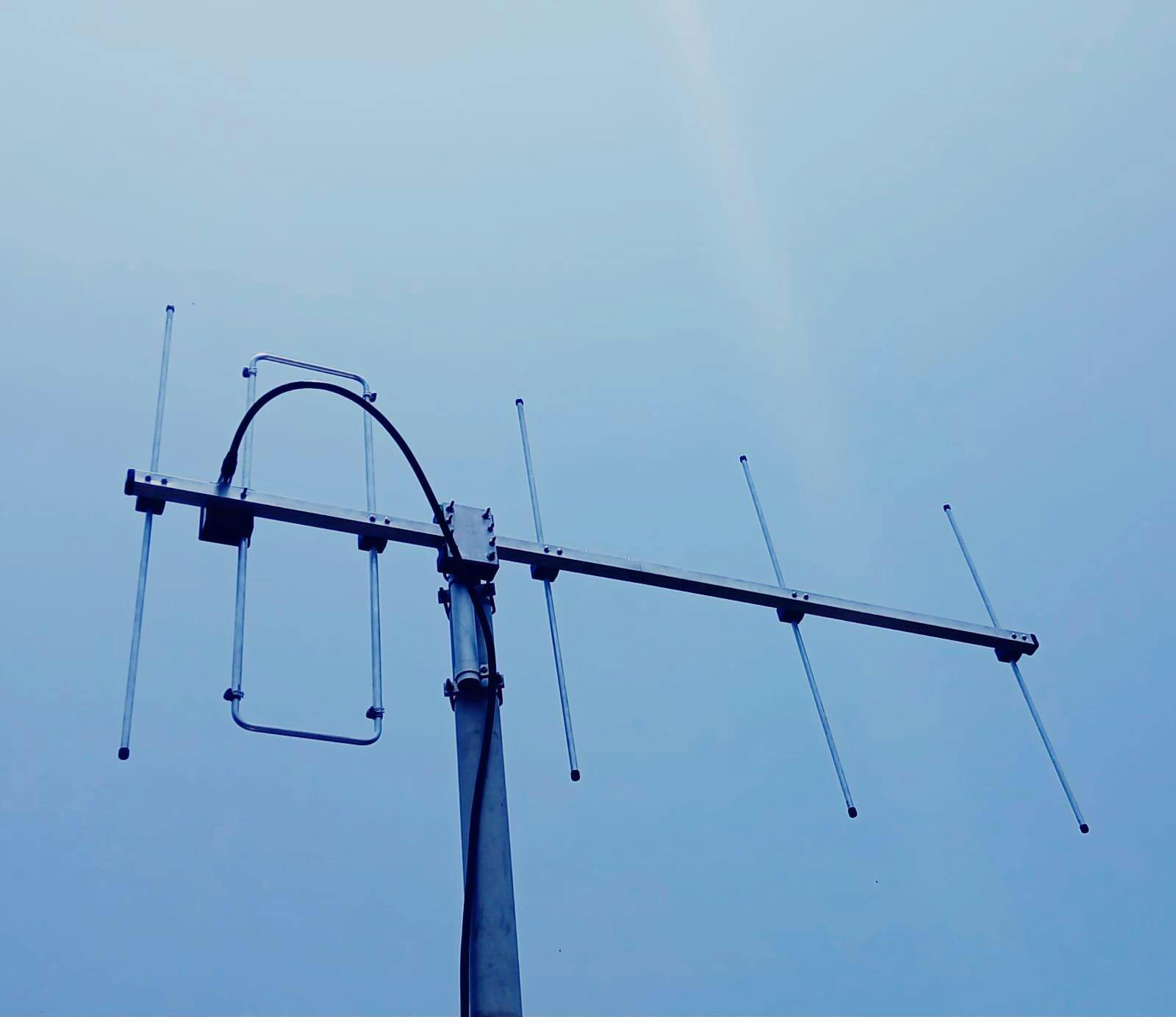

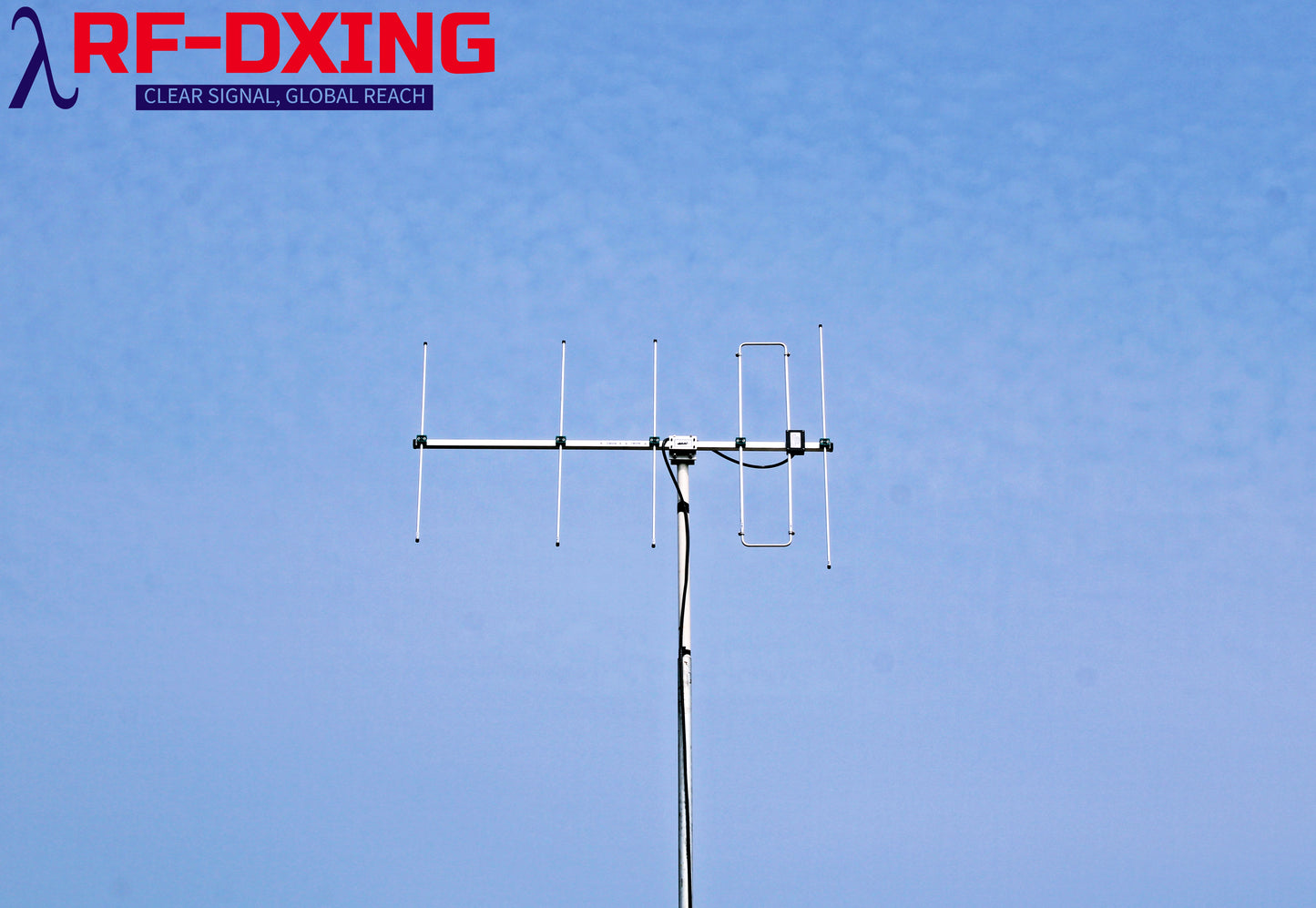

RFD-144RLF5, VHF 2M Band 5 Elements Rectangular Loop Feed( RLF) Yagi.
RFD-144RLF5, VHF 2M Band 5 Elements Rectangular Loop Feed( RLF) Yagi.
Couldn't load pickup availability
Description
Introducing new generation technology based low noise RLF Yagi for VHF 2M Band, RFD-144RLF5, RLF stands for Rectangular loop feed. Because we have used rectangular quad loop as a driven element of Yagi relacing traditional folded dipole and dipole. The reason behind using rectangular quad loop as driven element of Yagi is, its direct 50 Ohm so no matching transformer needed, it has more gain than folded dipole/dipole so when combining with parasitic elements of Yagi it becomes a high gain antenna and due to full wave loop its very low noise antenna. With hours of carefully simulation and optimization through latest electromagnetic code based simulation computer program we finally needed up with this interesting low noise antenna which is meant for this current situation of high electromagnetic interferences all over . You can hear the weakest station clearly due to low noise and at the same time you will be heard due to high forward gain. The antenna has gone numbers of optimization for best possible balancing between front back ratio , gain and lowest SWR.
Electrical Specifications
|
Bands/Frequency |
2M Band/144-148 MHz |
|

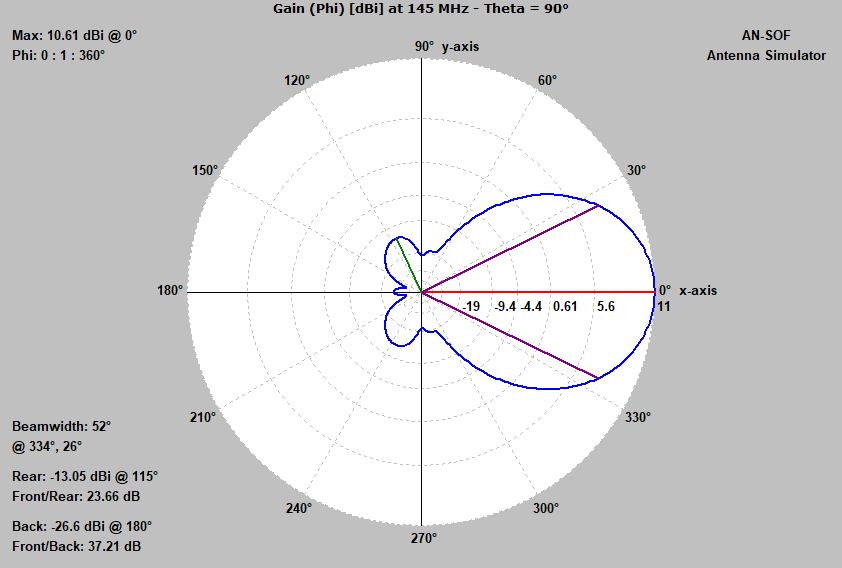

Gain( Free Space) |
10.22 dBi, Peak Gain: 10.5 dBi |
|
F/B |
35.5 dB |
|
VSWR |
Less than 1.2( 4 MHz) |
|
Impedance |
50 ohm |
|
Power rating/Matching |
300 Watts through 1:1 Current choke |
|

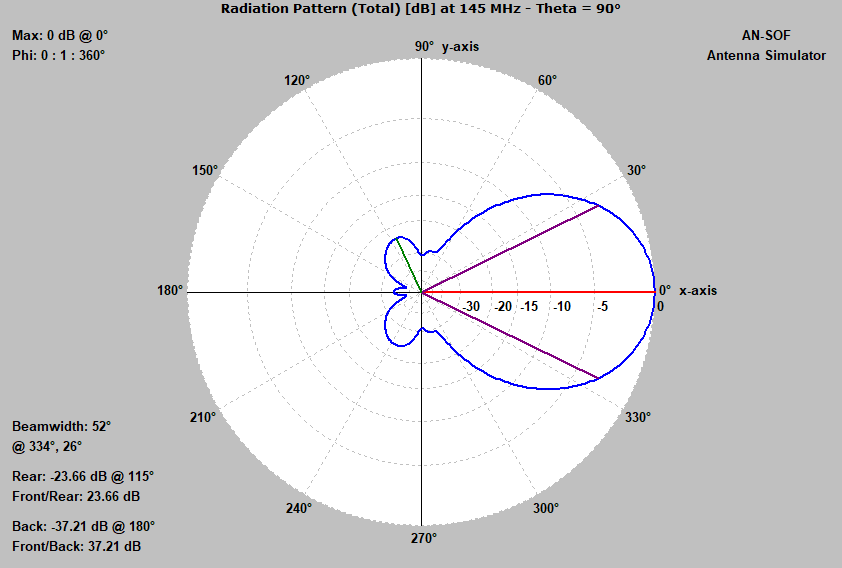

Radiation Pattern |
Directional |
Mechanical Specifications
|
Boom Length |
1.5 m |
|
Boom Dimension |
25mm*25mm*2mm |
|
Mounting Mast Diameter |
1.5 Inch to 2 Inch( For Side Mount Kits on Request) |
|
Longest Element length |
1.03 m |
|
Tapered Elements |
N/A |
|
Connector |
SO-239 |
|
Turning Radius |
0.76M |
|
Wind speed Survival |
175 Km/h |
|
Antenna Weight |
3.5 Kg |
|
Gross Weight Including Shipping Box |
4.7 Kg |
|
Shipping Box Dimension |
1.15 m |
|
Material used |
Aluminum 6063, 6061, SS-304, Industrial Grade PP Clamp and Injection molded ABS DE Box |
For Multiple Antenna Stacking Plan, Please write us at rfdxingantennas@gmail.com
Order processing Time
- International: 10 days
- Domestic: 5 days
