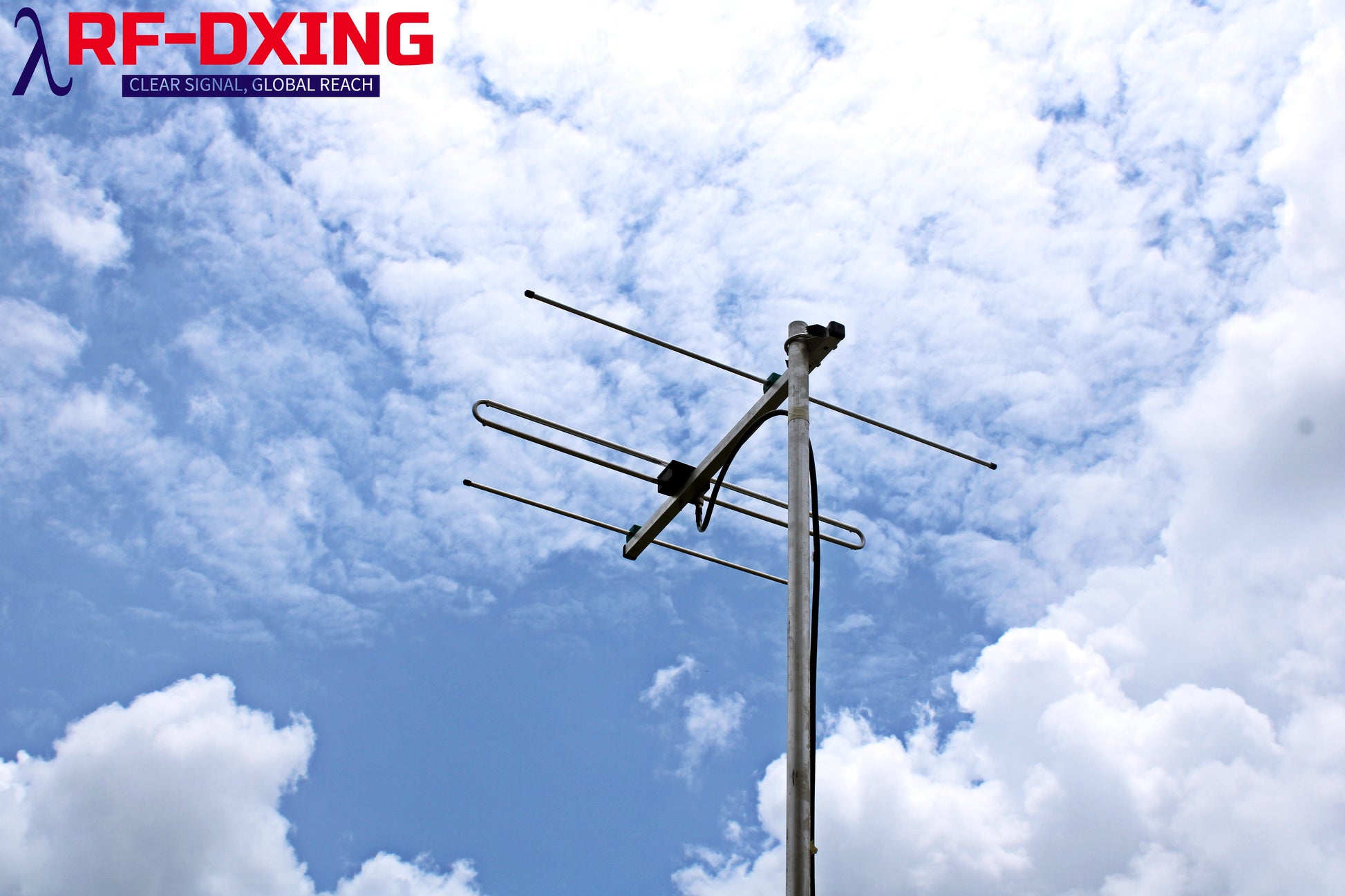

RFD-156FDL3, 3 Elements VHF Yagi ( Commercial and Military Applications)

Bands/Frequency

136 - 174 MHz

Gain( Free Space)

6.5 dBi

F/B

15 dB

VSWR

 1: 2.1 (38 MHz)

Impedance

50 ohm

Power rating/Matching

300 Watts through 4:1 Transformer

Radiation Pattern

Directional

Boom Length

0.8 m

Boom Dimension

25mm*25mm*1.6 mm

Mounting Mast Diameter

1.5 Inch

Longest Element length

0.992 m

Tapered Elements

N/A

Connector

SO-239( N- Type on request)

Turning Radius

0.5 m

Wind speed Survival

175 Km/h

Antenna Weight

0.850 Kg

Material used

Aluminum 6063, SS-304, Industrial Grade PP Clamp and Injection moulded ABS DE Box
