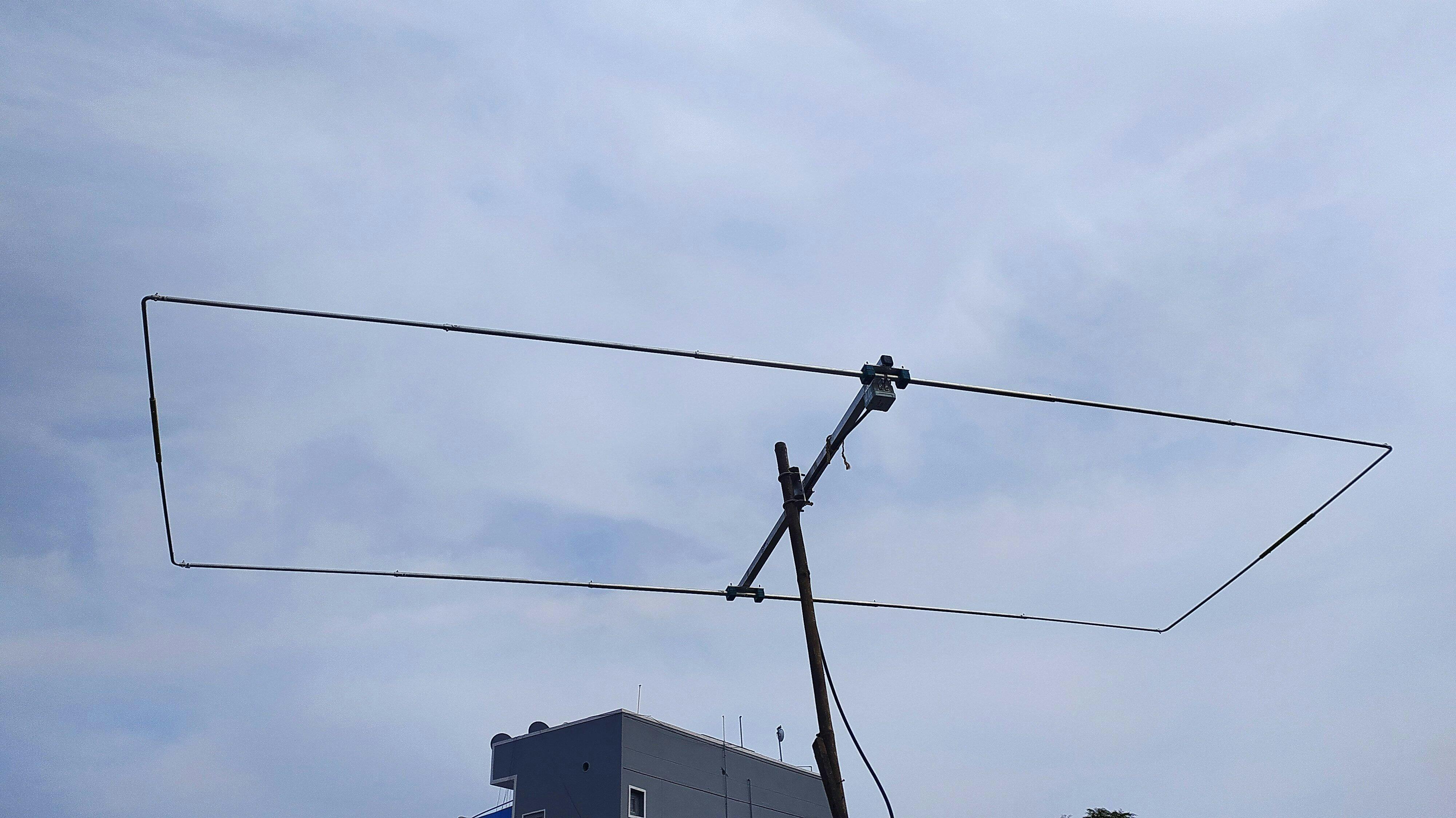

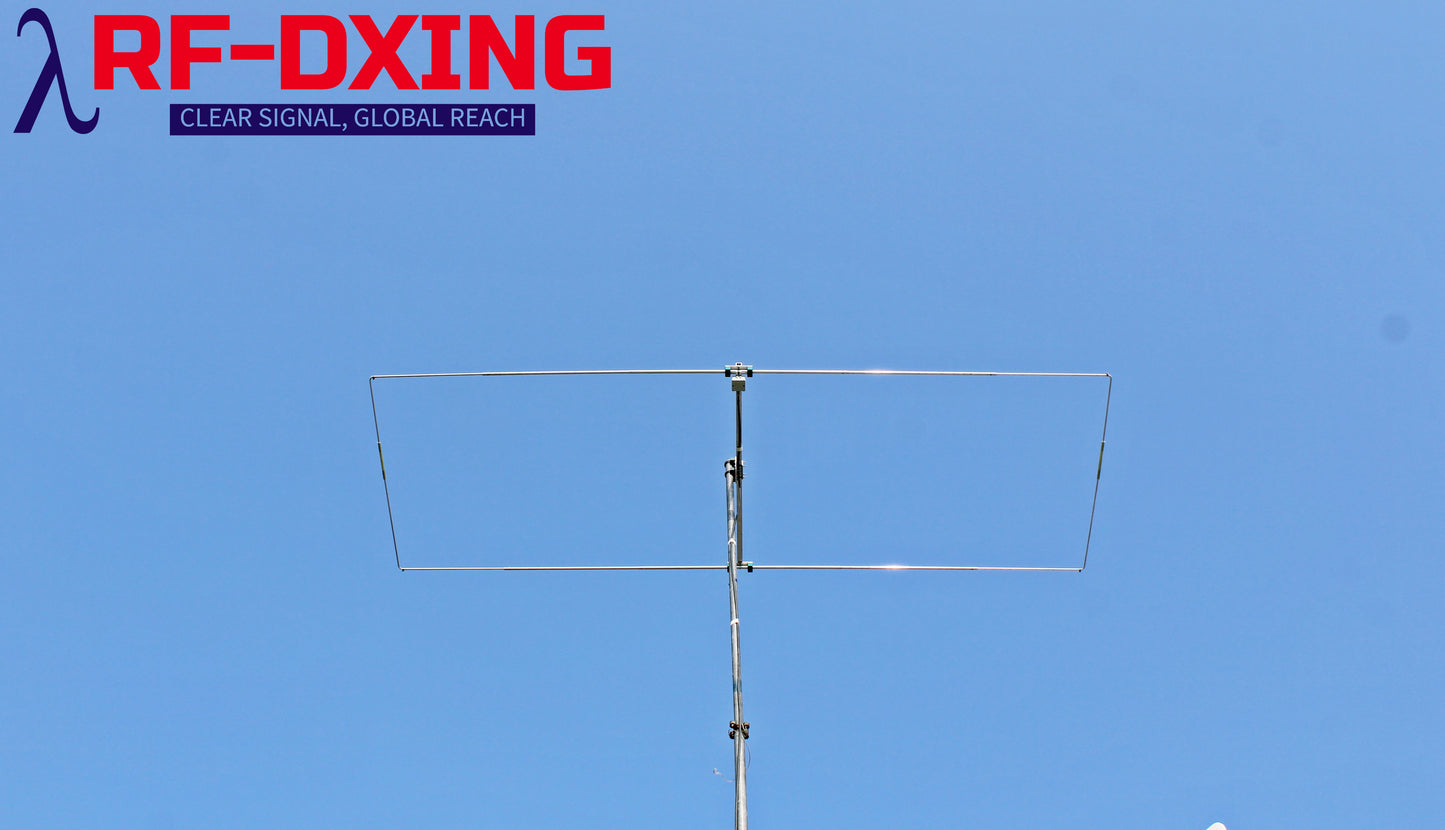

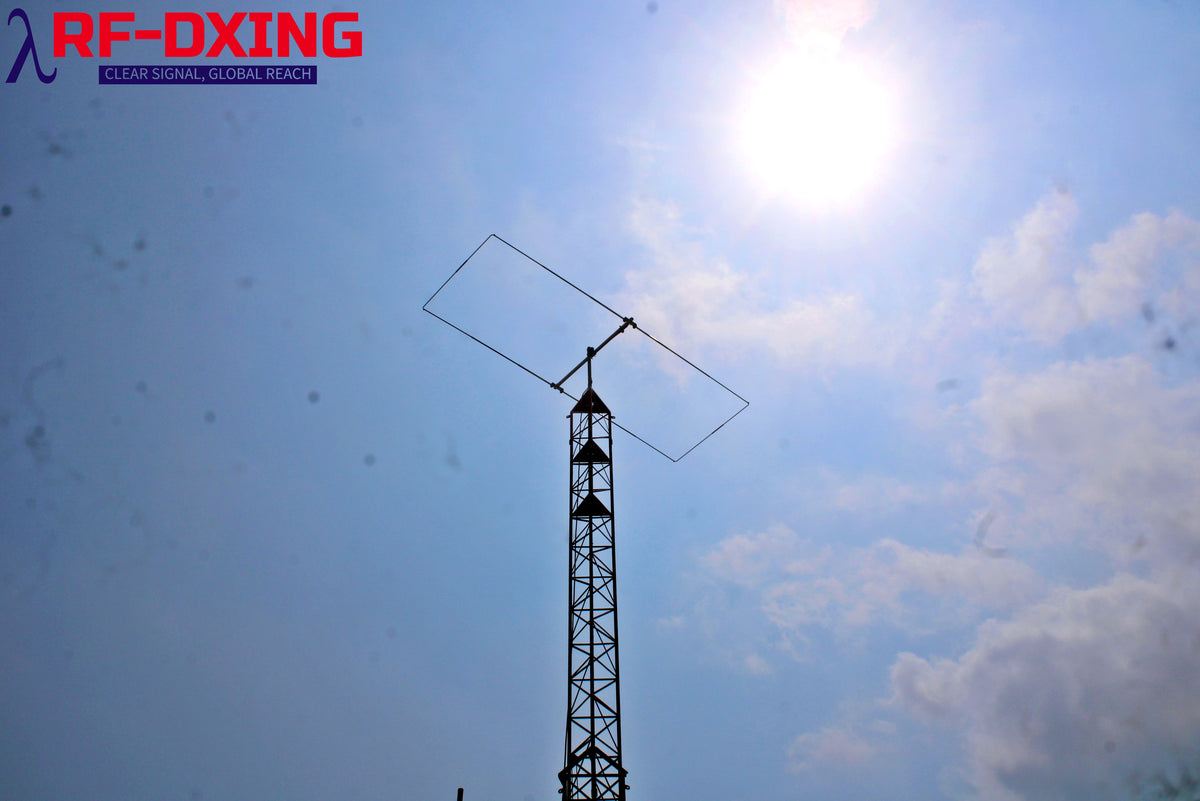

RFD-MX10, 10M/28MHz Mono Band Moxon.
RFD-MX10, 10M/28MHz Mono Band Moxon.
Couldn't load pickup availability
International Orders – Antenna Preparation & Payment Terms
We require 15 to 20 days to prepare antennas for international orders.
Please note that preparation time may vary depending on the antenna size.
For international buyers, we offer flexible payment options:
-
Option 1: Pay 50% in advance or any token amount, and the balance before shipping.
-
Option 2: Pay the full amount upfront, if preferred.
You’re free to choose the option that best suits your needs. Feel free to contact us with any questions or specific requirements.
Electrical Specifications
|
Bands/Frequency |
10m (28-29 MHz) |
|
Gain( Free Space) |
6.14 dBi ( 11.33 dBi at 10m AGL) |
|
F/B |
30 dB |
|

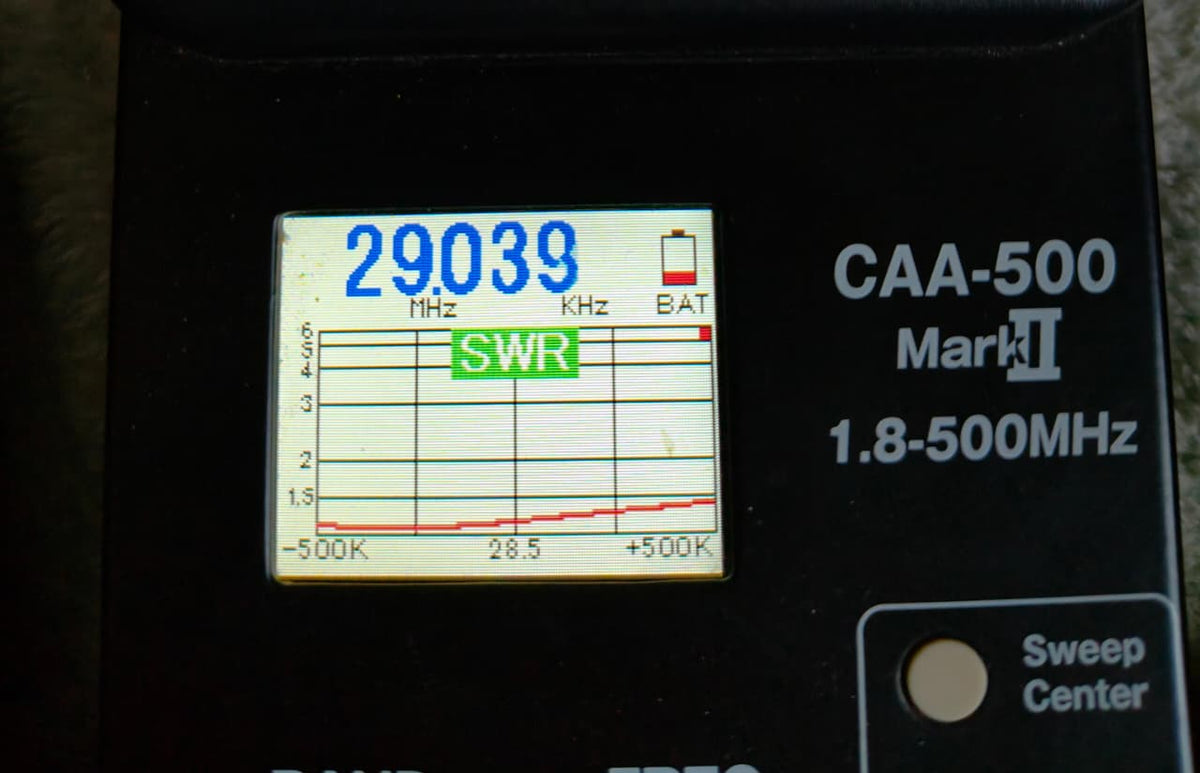

VSWR |
Less than 1.5 across the band |
|
Impedance |
50 ohm |
|
Power rating/Matching |
3 KW+/ 1:1 Maxwell choke |
|
Radiation Pattern |
Directional |
Mechanical Specifications
|
Boom Length |
1.42 m |
|
Boom Dimension |
30mm*30mm*3mm |
|
Mounting Mast Diameter |
1.5 Inch to 2 Inch |
|
Width of the Antenna |
4.05 m |
|
Tapered Elements |
19 mm to 9.5 mm |
|
Connector |
SO-239 |
|
Turning Radius |
2.03 m |
|
Wind speed Survival |
160 Km/h |
|
Antenna Weight |
5 kg |
|
Gross Weight Including Shipping Box |
6 kg |
|
Shipping Box Dimension |
1.3 m |
|
Material used |

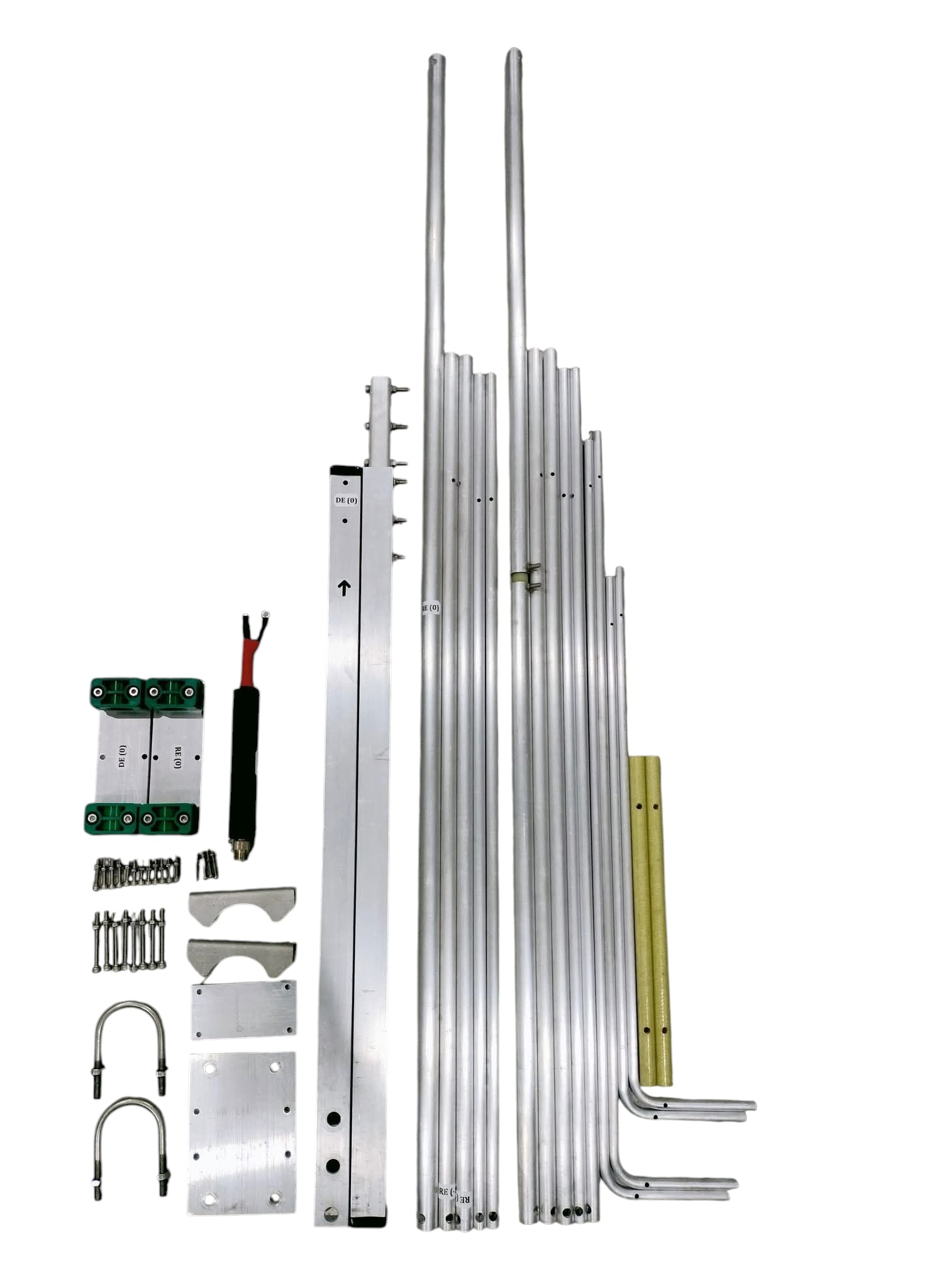

Aluminum 6063, 6061, SS-304, Industrial Grade Polyamide Clamp (Heavy Duty) |
Order processing Time
- International: 7 days
- Domestic: 5 days
Customer Reviews
This antenna (MOXON 10M MONOBAND) is capable of pulling DX. I can easily work European stations. Though I have not had the experience of working NORTH AMERICA with this antenna but I am sure I would be able to work when weather & propagation conditions are favourable. Working SOUTH AMERICA is an easy task with this antenna. I would suggest that if you are interested in working lots of DX then certainly go for this antenna. It's affordable. I do not have a proper mast and rotator and positioned it in the direction of Europe but still I get chance to work Australia & Oceania stations even though they fall behind my antenna. The performance of this antenna was tested using FT8 mode and no other mode was used such as SSB or CW.
Thank you dear friend, for your positive and valuable review.
