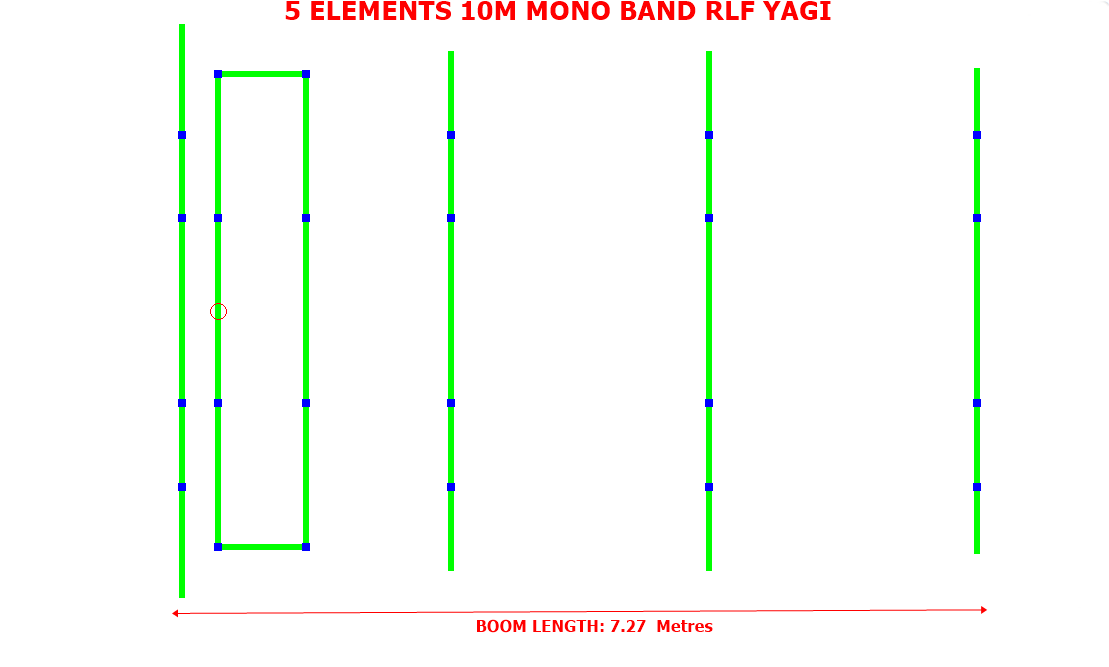

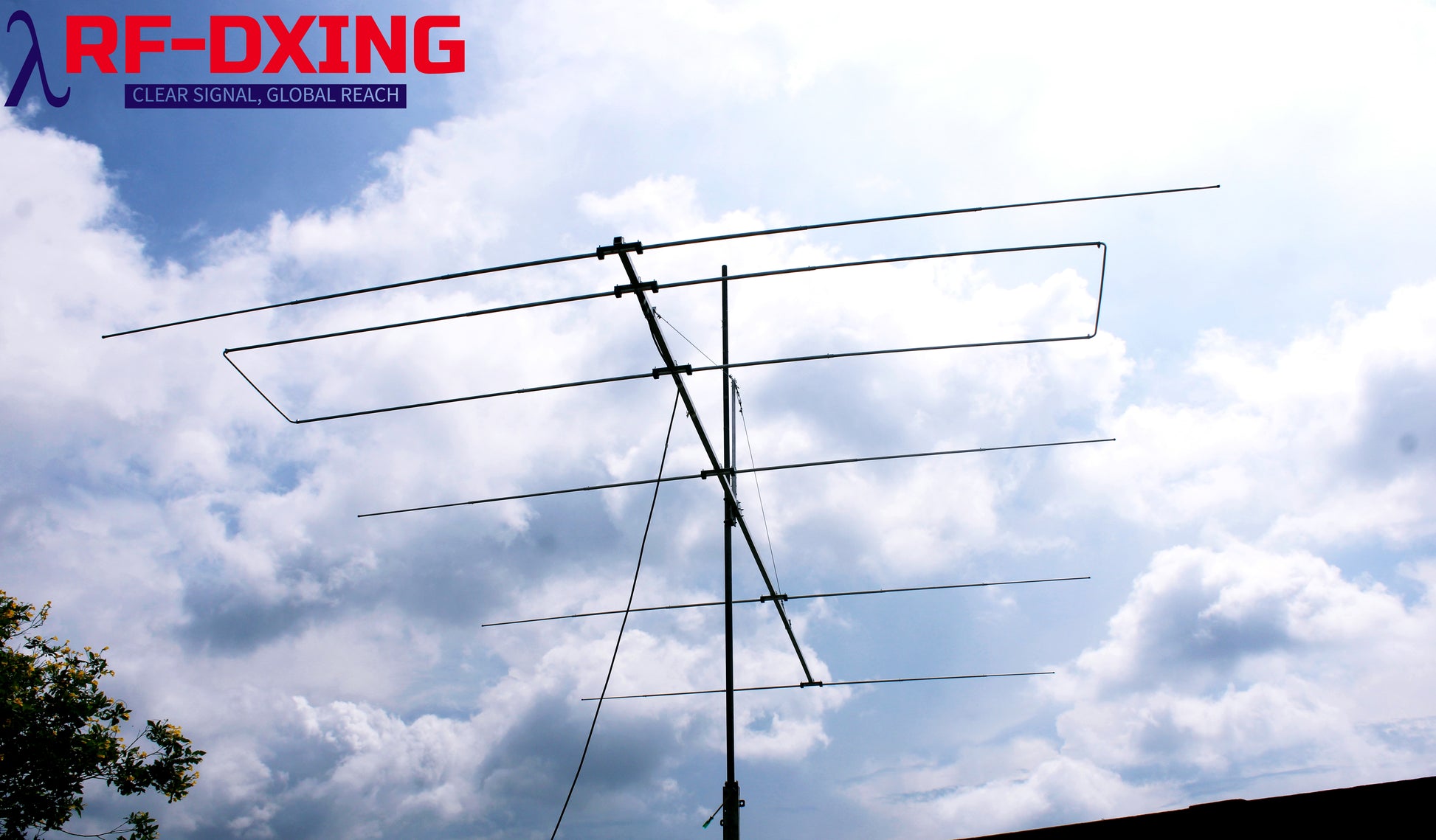

RFD-28RLF5, 5 Elements 28 MHz/10M RLF( Rectangular Loop Feed) Yagi
RFD-28RLF5, 5 Elements 28 MHz/10M RLF( Rectangular Loop Feed) Yagi
Couldn't load pickup availability
International Orders – Antenna Preparation & Payment Terms
We require 15 to 20 days to prepare antennas for international orders.
Please note that preparation time may vary depending on the antenna size.
For international buyers, we offer flexible payment options:
- Option 1: Pay 50% in advance or any token amount, and the balance before shipping.
- Option 2: Pay the full amount upfront, if preferred.
You’re free to choose the option that best suits your needs. Feel free to contact us with any questions or specific requirements.
Electrical Specifications
|
Bands/Frequency |
10M Band/ 28-29 MHz |
|
Gain( Free Space) |
10.22 dBi, Peak Gain: 10.56 dBi |
|
F/B |
29.3 dB, Peak F/B: 35 dB |
|
VSWR |
Less than 1.5, (700 KHz) |
|
Impedance |
50 ohm |
|
Power rating/Matching |
3 KW+/ 1:1 Maxwell choke |
|
Radiation Pattern |
Directional |
Mechanical Specifications
|
Boom Length |
7.27 m |
|
Boom Dimension |
38mm*38mm*3mm |
|
Mounting Mast Diameter |
1.5 Inch to 2 Inch |
|
Longest Element length |
5.426 m |
|
Tapered Elements |
20 mm to 12mm |
|
Connector |
SO-239 |
|
Turning Radius |
3.7 m |
|
Wind speed Survival |
175 Km/h |
|
Antenna Weight |
24 Kg |
|
Material used |
Aluminum 6063-T6,SS-304, Industrial Grade Polyamide Clamp (Heavy Duty) |
Customer Reviews

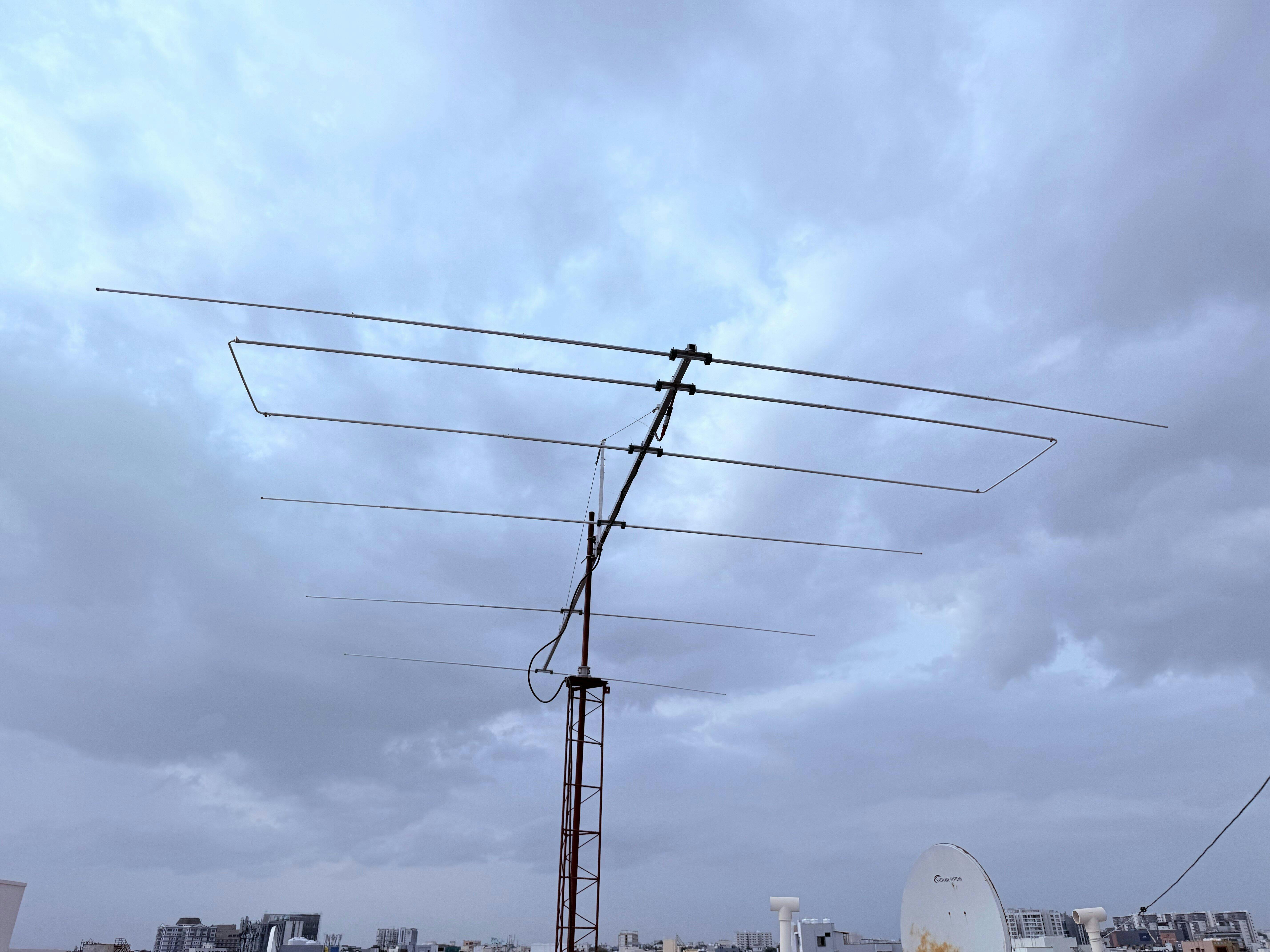

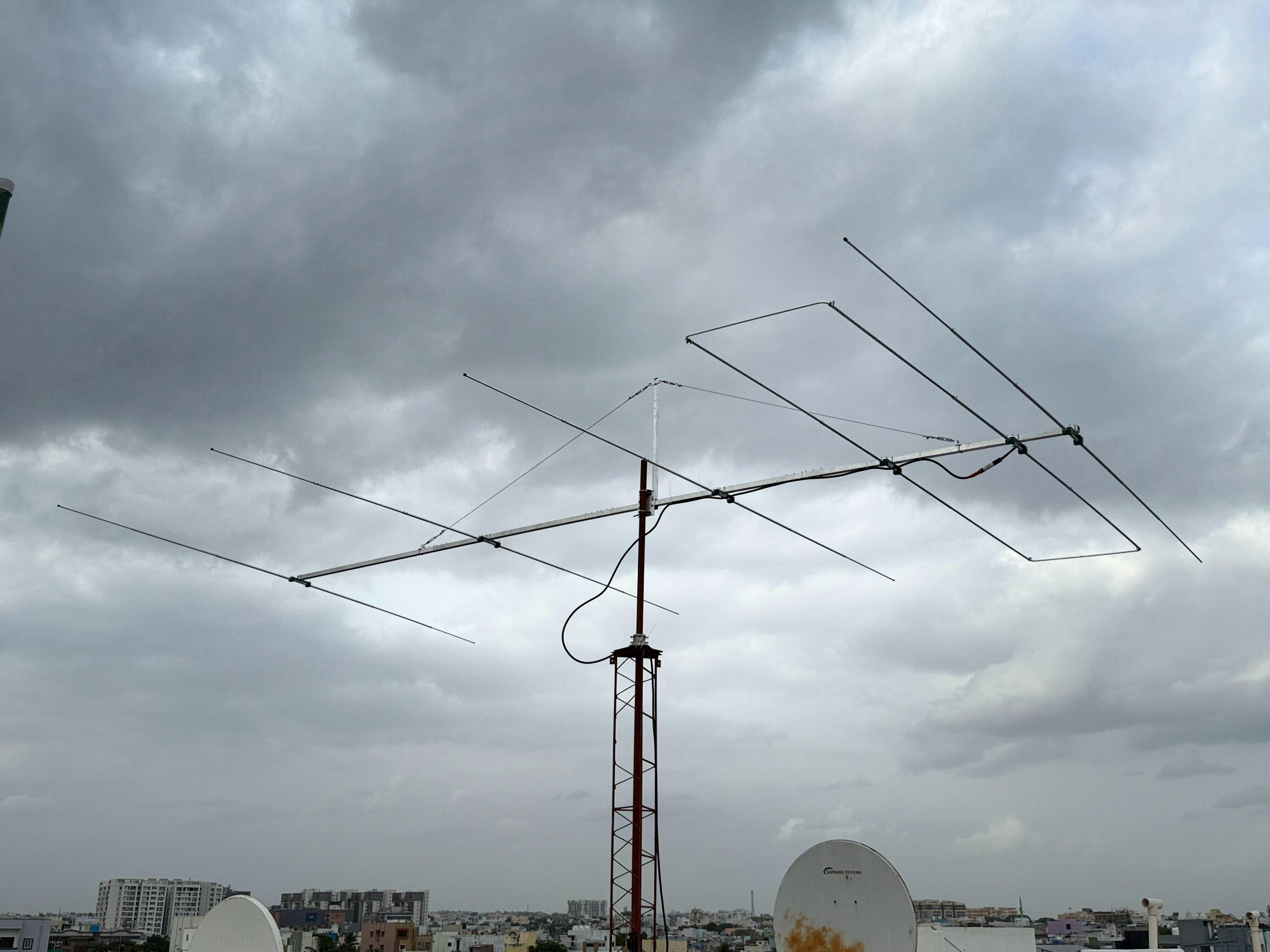

Nice Construction

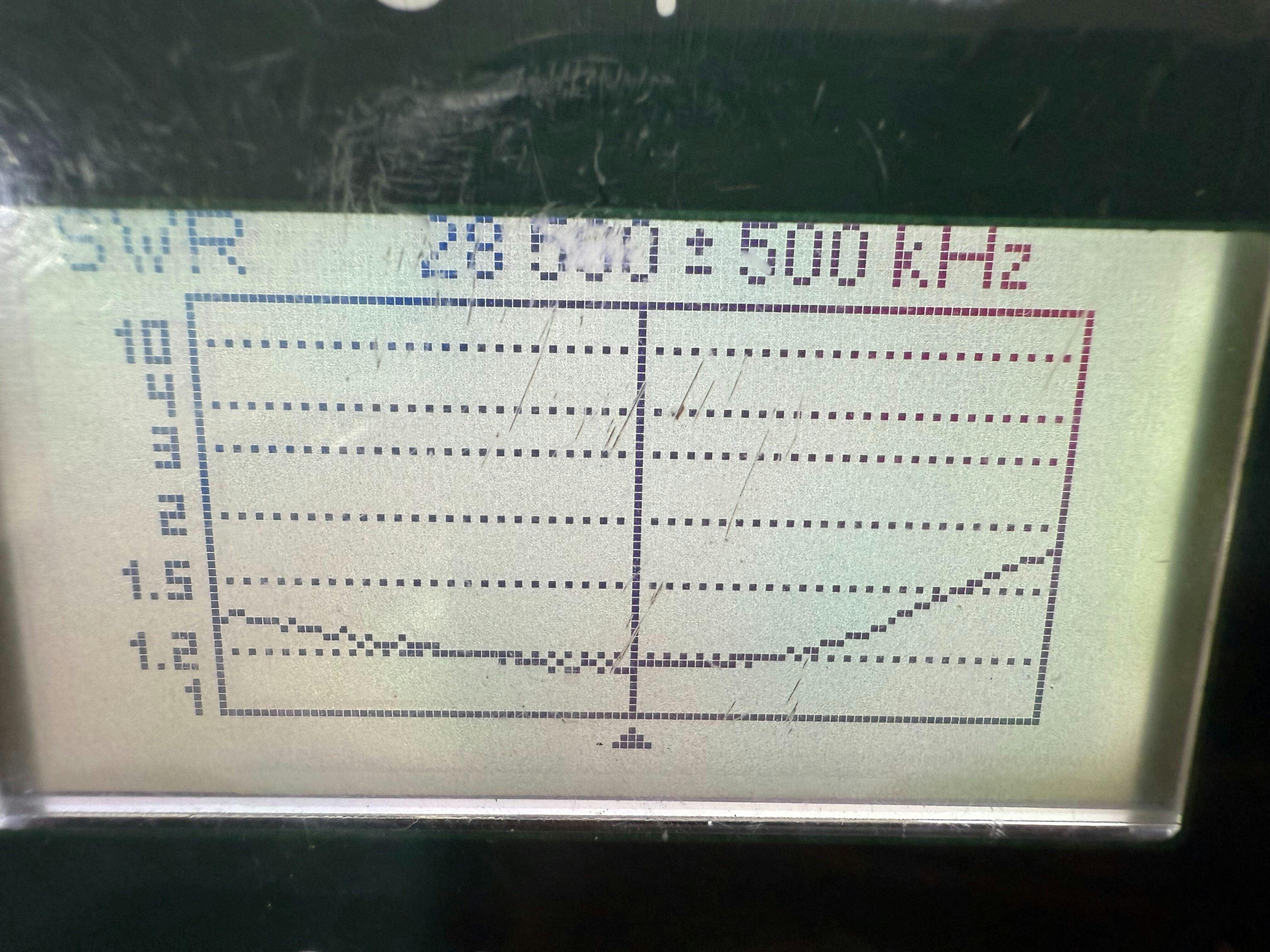

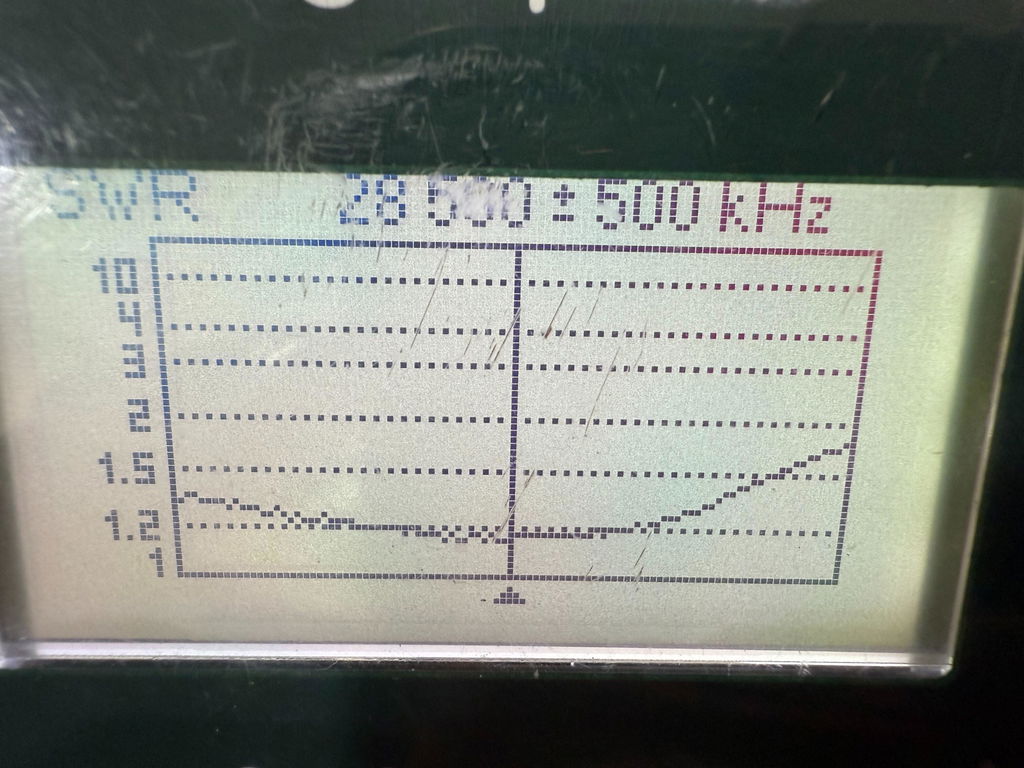

Supplied with a simple assembly manual. gave 1:1.1 on first assembly itself.No further tuning is required
Observed good directivity on initial checking.
Hi there! Thank you for leaving a review for our RFD-28RLF5 Yagi antenna. We're glad to hear that you found the construction to be nice and the assembly manual to be simple. It's great that you were able to achieve a 1:1.1 ratio on your first assembly and that no further tuning is required. We hope you continue to observe good directivity with your antenna. Thanks for choosing our product!
