RF-DXING

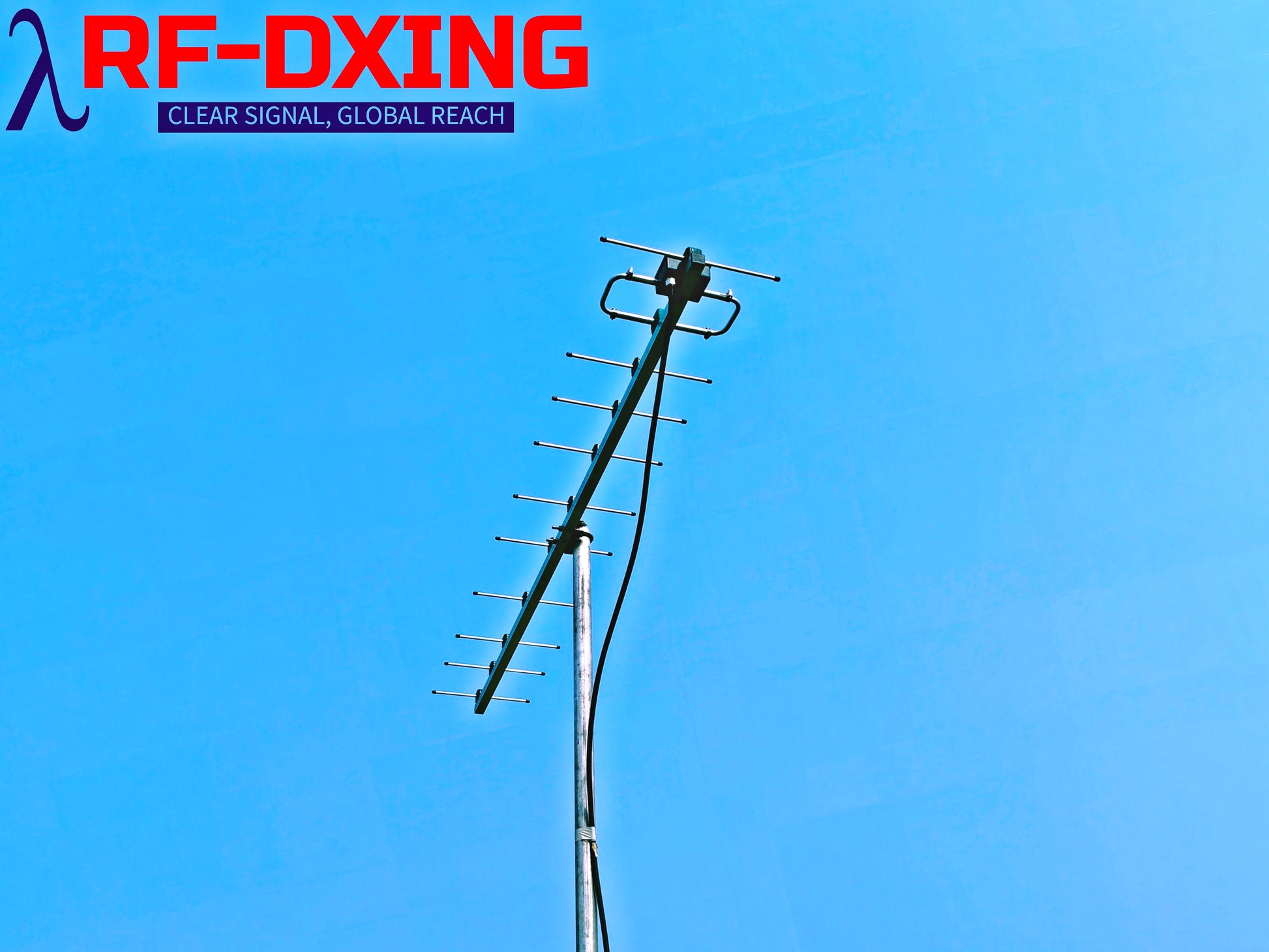

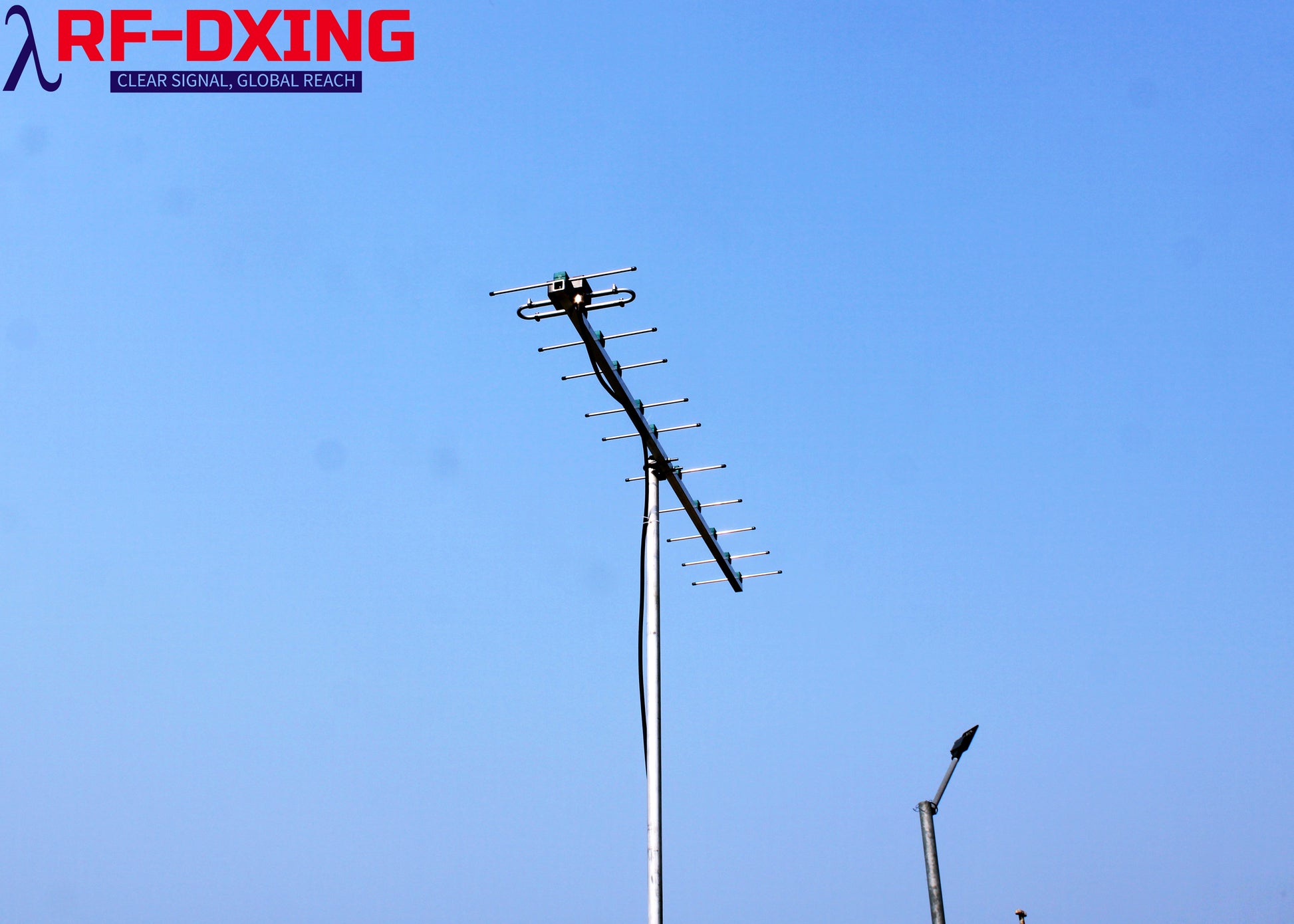

RFD-432RLF11, UHF 70CM Band 11 Elements Rectangular Loop Feed( RFL) Yagi.

RFD-432RLF11, UHF 70CM Band 11 Elements Rectangular Loop Feed( RFL) Yagi.

Regular price $78.00 USD
Regular price Sale price $78.00 USD
Sale Out of stock

Electrical Specifications

Bands/Frequency

70cm Band/430-440 MHz

Gain( Free Space)

14.58 dBi

F/B

30

VSWR

Less than 1.2( 4 MHz)

Impedance

50 ohm

Power rating/Matching

900 Watts through 1:1 Current choke, RG142

Radiation Pattern

Directional



Mechanical Specifications

Boom Length

1.8 m

Boom Dimension

25mm*25mm*1.6mm

Mounting Mast Diameter

1.5 Inch

Longest Element length

0.336 m

Tapered Elements

N/A

Connector

N-Type

Turning Radius

0.9 M

Wind speed Survival

175 Km/h

 Weight

Antenna: 1.7 kg

Including shipping box: 2.5 kg

Material used

Aluminum 6063, 6061, SS-304, Industrial Grade PP Clamp and Injection molded ABS DE Box
