RF-DXING ANTENNA

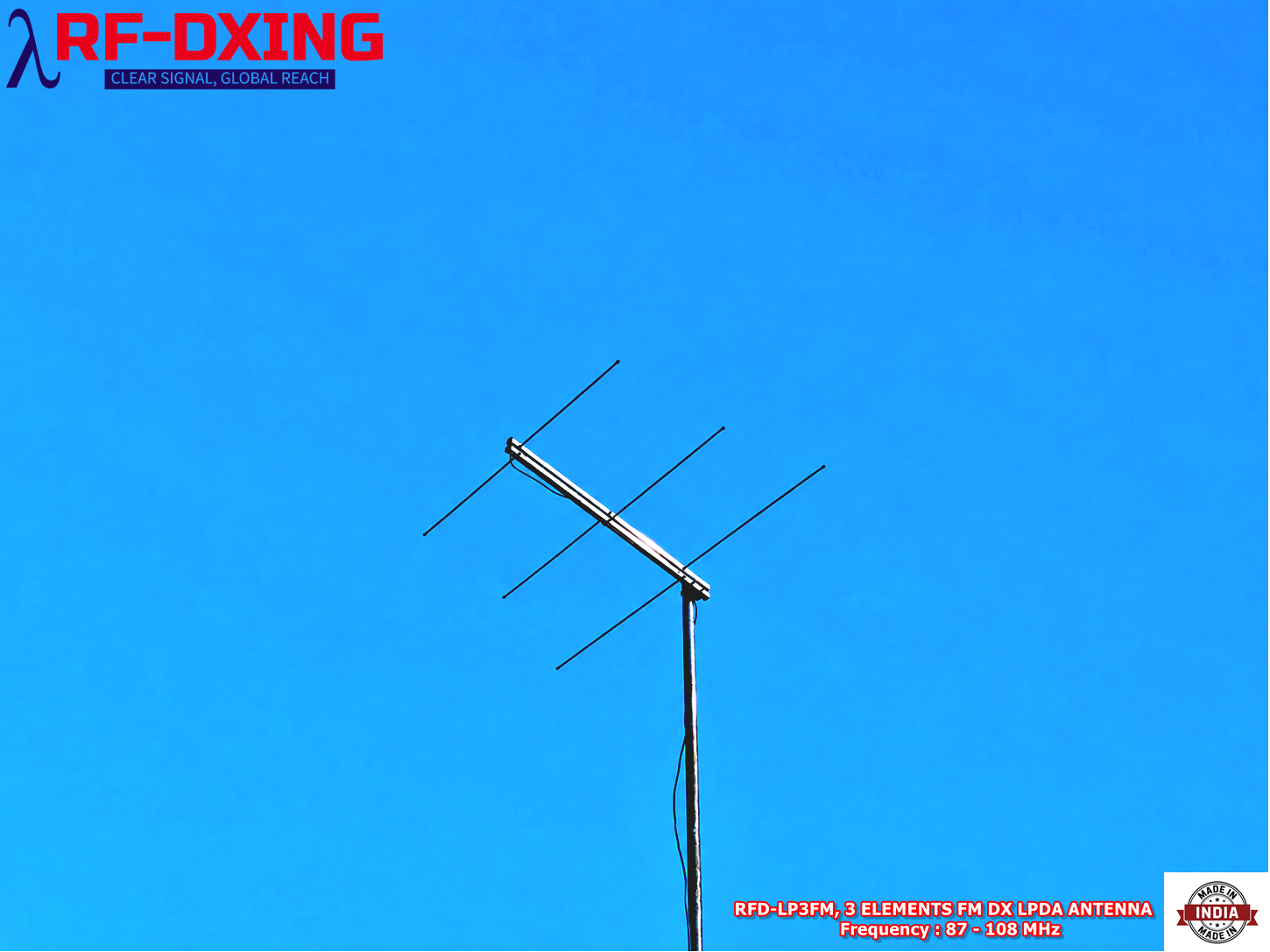

RFD-LP3FM,3 Elements FM Dxing Log Periodic Antenna.

RFD-LP3FM,3 Elements FM Dxing Log Periodic Antenna.

Regular price $63.00 USD
Regular price Sale price $63.00 USD
Sale Out of stock

Description:

The RFD-LP3FM is a wideband, compact, lightweight, and high-efficiency log periodic antenna designed specifically for FM DXing and FM broadcast listening.



Engineered to deliver excellent performance across the entire 87 108 MHz FM broadcast band, the antenna provides consistent gain and radiation characteristics over the full 21 MHz spectrum. Its optimized design offers high front-to-back ratio and excellent directivity, helping to reduce interference from unwanted signals while improving reception of weak and distant FM stations.



Despite its compact size and lightweight construction, the RFD-LP3FM delivers outstanding electrical performance, making it an excellent choice for fixed installations as well as portable DXing operations.



Electrical Specifications

Frequency

87 - 108 MHz

Gain( Free Space)

6 dBi

F/B

16-20 dB

VSWR

Less than 2( 21 MHz)

Impedance

50/75 ohm

Matching

1:1 choke

Radiation Pattern

Directional



Mechanical Specifications

Boom Length

1.1 m

Boom Dimension

25mm*25mm*1.1 mm(Twin Boom)

Mounting Mast Diameter

1.5 Inch

Longest Element length

1.74 m

Tapered Elements

NA

Connector

F-Type Female

Turning Radius

0.87 m

Wind speed Survival

175 Km/h

Antenna Weight

1.8 Kg

Material used

Aluminium 6063, 6061 & SS-304 and PVC
