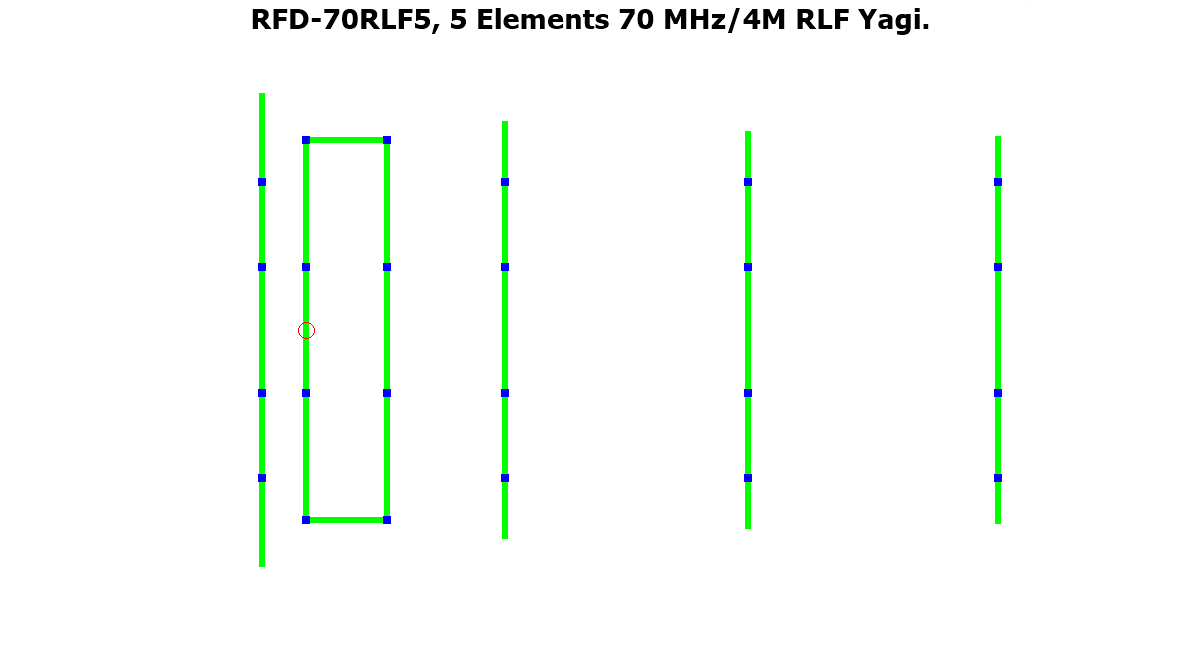

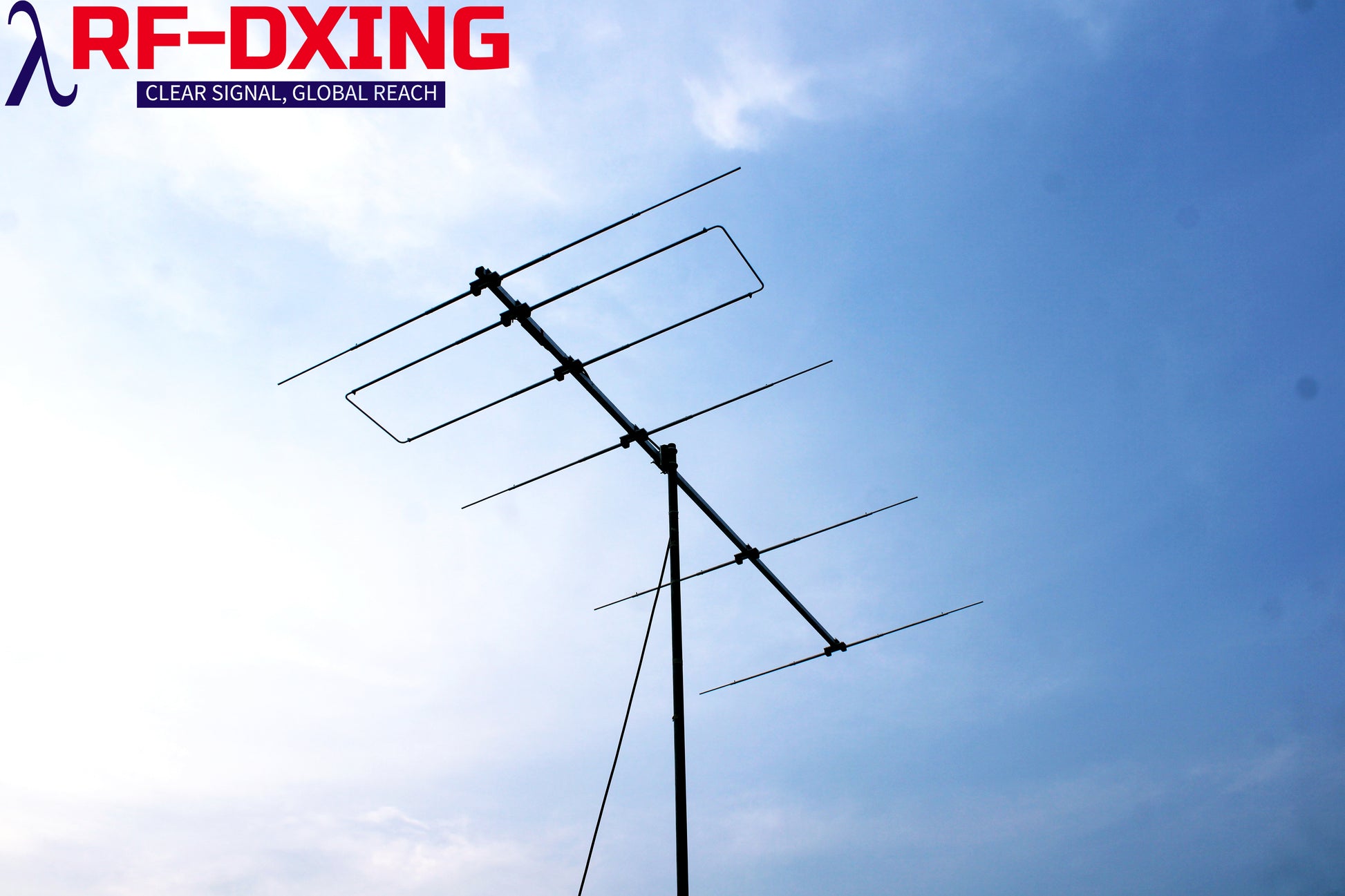

RFD-70RLF5, 5 Elements 70 MHz/4M RLF( Rectangular Loop Feed) Yagi.

Frequency

 70 – 71 MHz

Gain( Free Space)

 10.4 dBi

F/B

 30 dB

VSWR

 Less than 1.5 on all Bands

Impedance

 50 ohm

Power rating/Matching

 3 KW+/ 1:1 Maxwell choke

Radiation Pattern

 Directional

Boom Length

3.47 m

Boom Dimension

30mm*30mm*2mm

Mounting Mast Diameter

1.5 Inch to 2 Inch

Longest Element

2.23 m

Tapered Elements

16 mm to 9.5 mm

Connector

SO-239

Turning Radius

1.74 m

Wind speed Survival

175 Km/h

Antenna Weight

6 Kg

Material used

Aluminum 6063, SS-304, Industrial Grade Polyamide Clamp (Heavy Duty)
