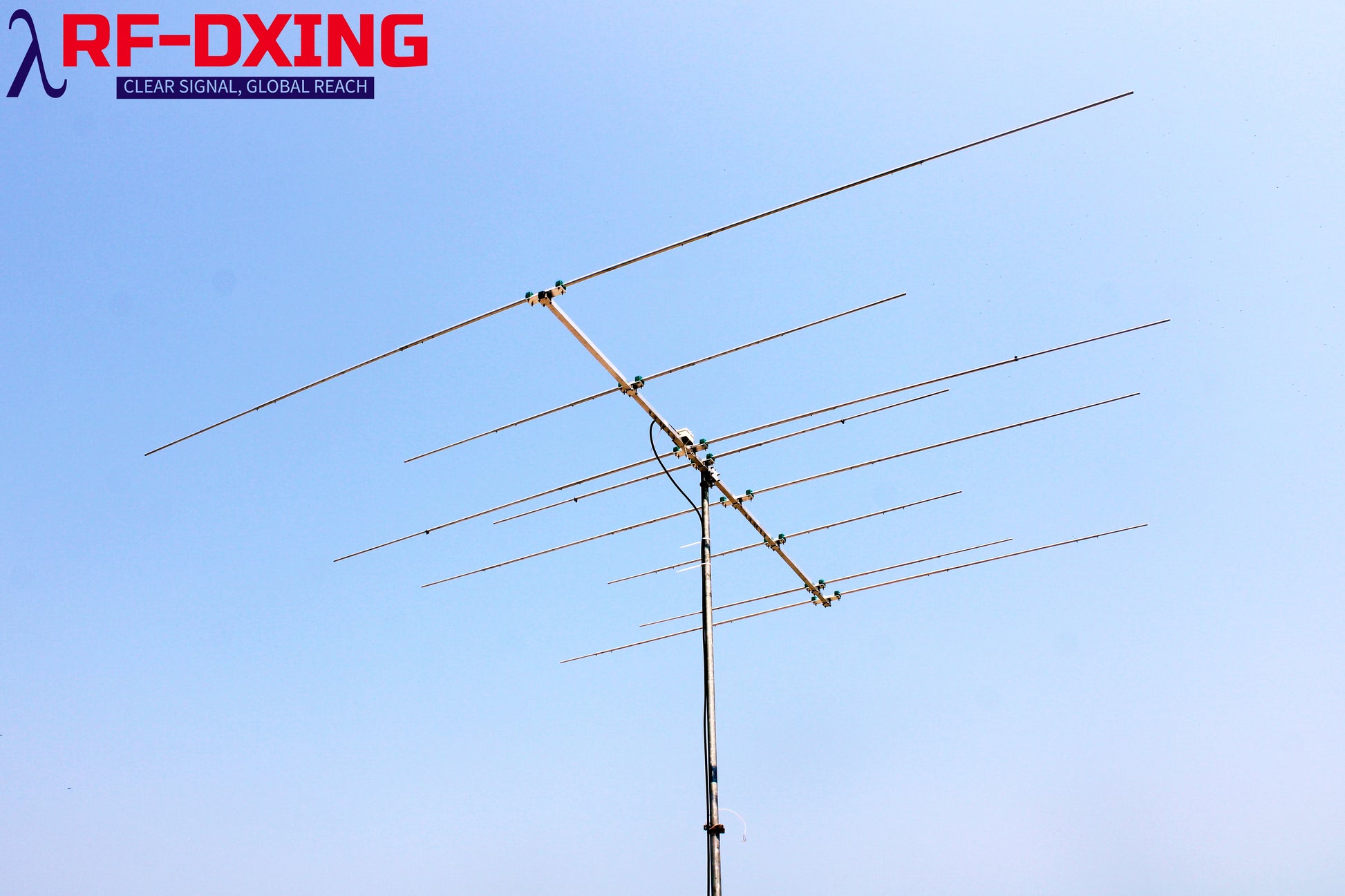

RFD-8E2B-16, 8 Elements Dual Band Yagi for 10/6
RFD-8E2B-16, 8 Elements Dual Band Yagi for 10/6
Couldn't load pickup availability
Description
Our RFD-8E2B-16 28/50 MHz Dual Band is a high performing dual Band yagi with just 3.6m Boom Length, RFD-8E2B-16 is specially destined to achieve high front back and good swr bandwidth and gain as well. We have given much priority to its front back ratio and side lobe suppression in the same time we have also given much priority to the SWR bandwidth . RFD-8E2B-16 is small size yagi with excellent performance for serious Dxing and contesting
Electrical Specifications
|
Bands/Frequency |
10m(28-29 MHz), 6m( 50-51 MHz) |
|
Gain( Free Space) |
7.3 dBi at 10m, 7.5 dBi at 6Mm |
|
F/B |
27.8 dB at 10m and 36.4 dB at 6m |
|
VSWR |
Less than 1.3 at 10m, less than 1.5 at 6m |
|
Impedance |
50 ohm |
|
Power rating/Matching |
3 KW+/ 1:1 Maxwell choke |
|
Radiation Pattern |
Directional |
Mechanical Specifications
|
Boom Length |
3.6 m |
|
Boom Dimension |
38mm*38mm*3mm |
|
Mounting Mast Diameter |
1.5 Inch to 2 Inch |
|
Longest Element length |
5.5 |
|
Tapered Elements |
19 mm to 12 mm |
|
Connector |
SO-239 |
|
Turning Radius |
3 m |
|
Wind speed Survival |
150 Km/h |
|
Antenna Weight |
16 Kg |
|
Gross Weight Including Shipping Box |
18 Kg |
|
Shipping Box Dimension |
1.85 m |
|
Material used |
Aluminum 6063, 6061, SS-304, Industrial Grade Polyamide Clamp (Heavy Duty) |
Order processing Time
- International: 20 days
- Domestic: 15 days
