RF-DXING ANTENNA

RFD-DQ106, 6 Elements Dual Band Quad for 10m and 6m Band.

RFD-DQ106, 6 Elements Dual Band Quad for 10m and 6m Band.

$445.00 USD
$445.00 USD
Sale Out of stock

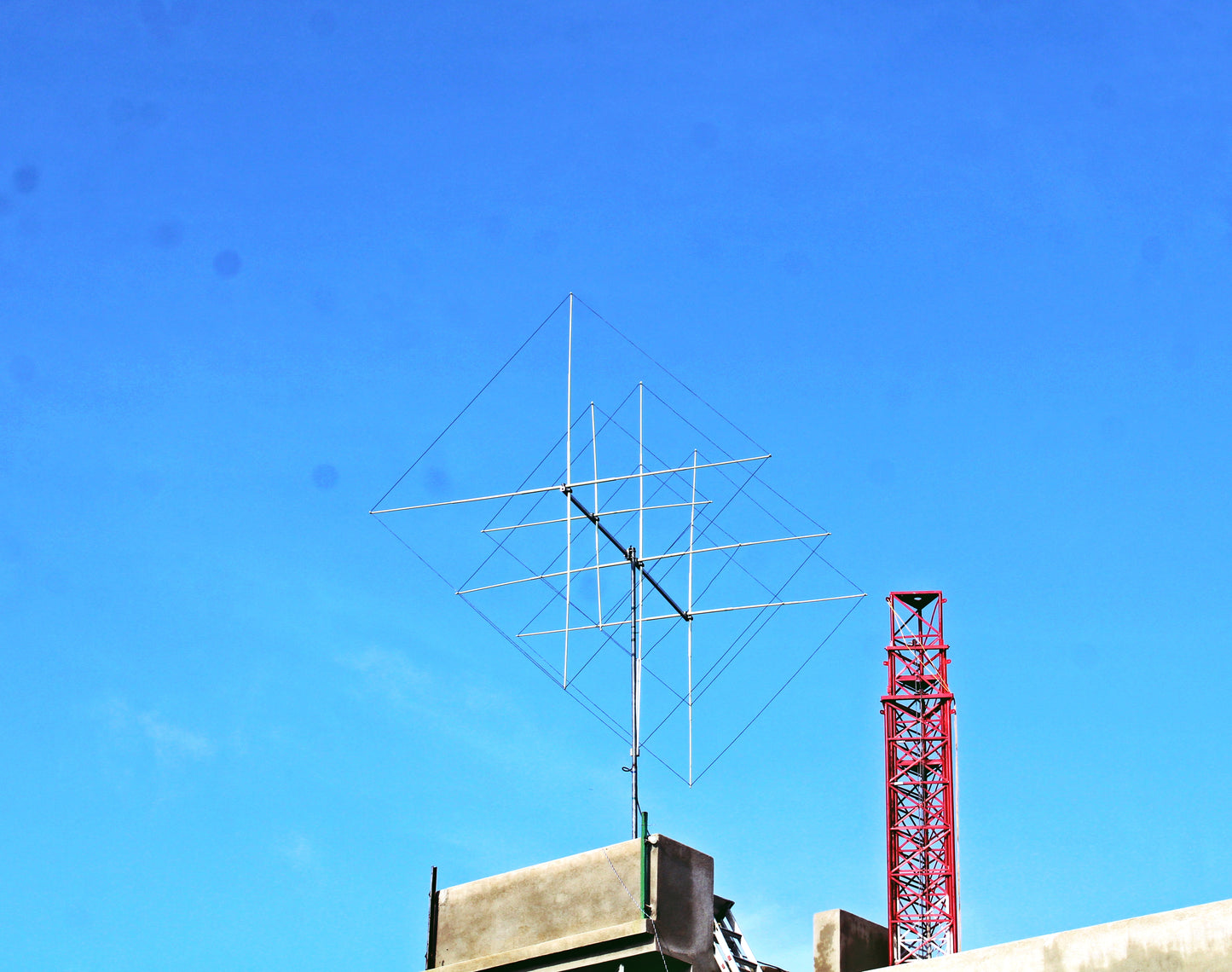

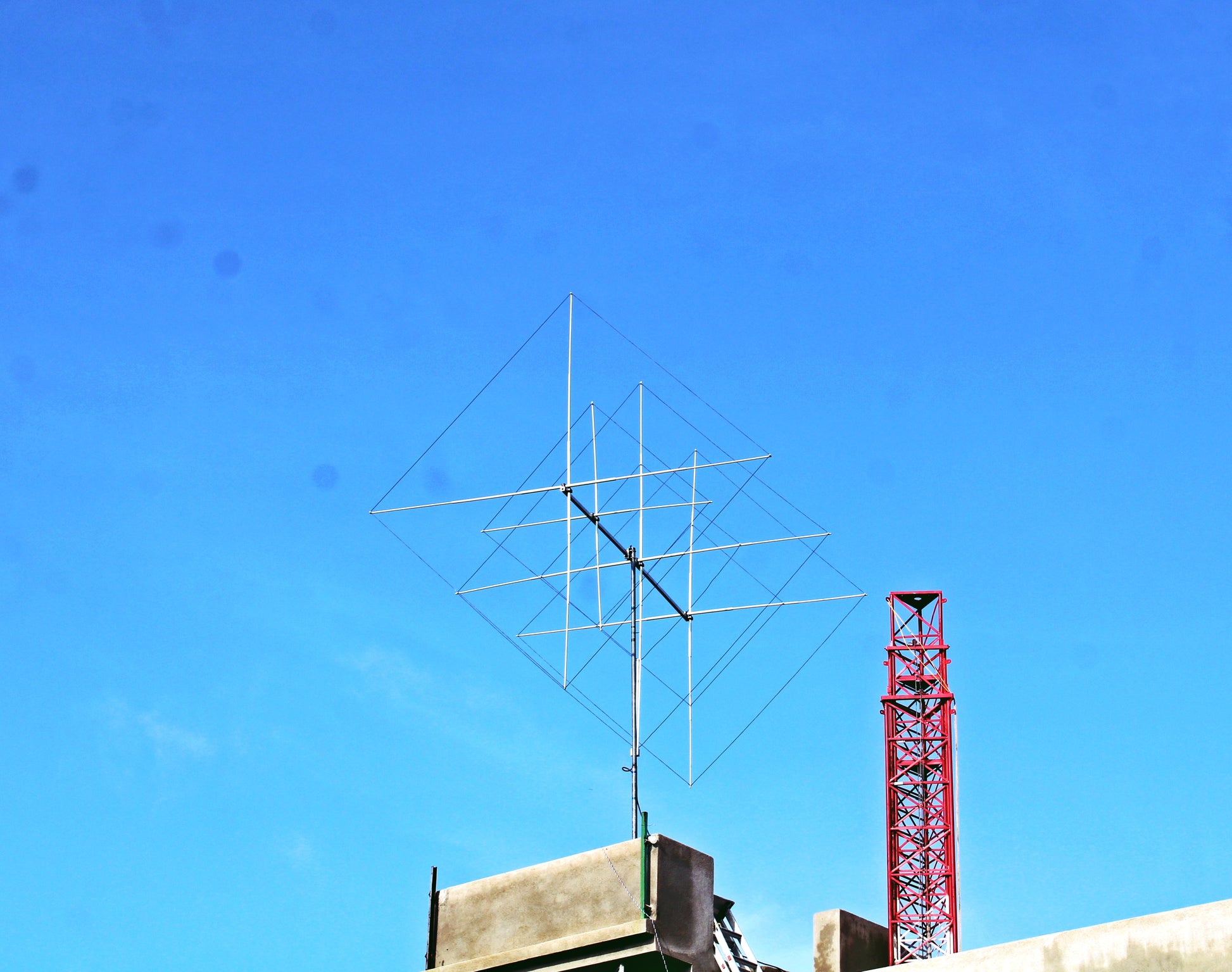

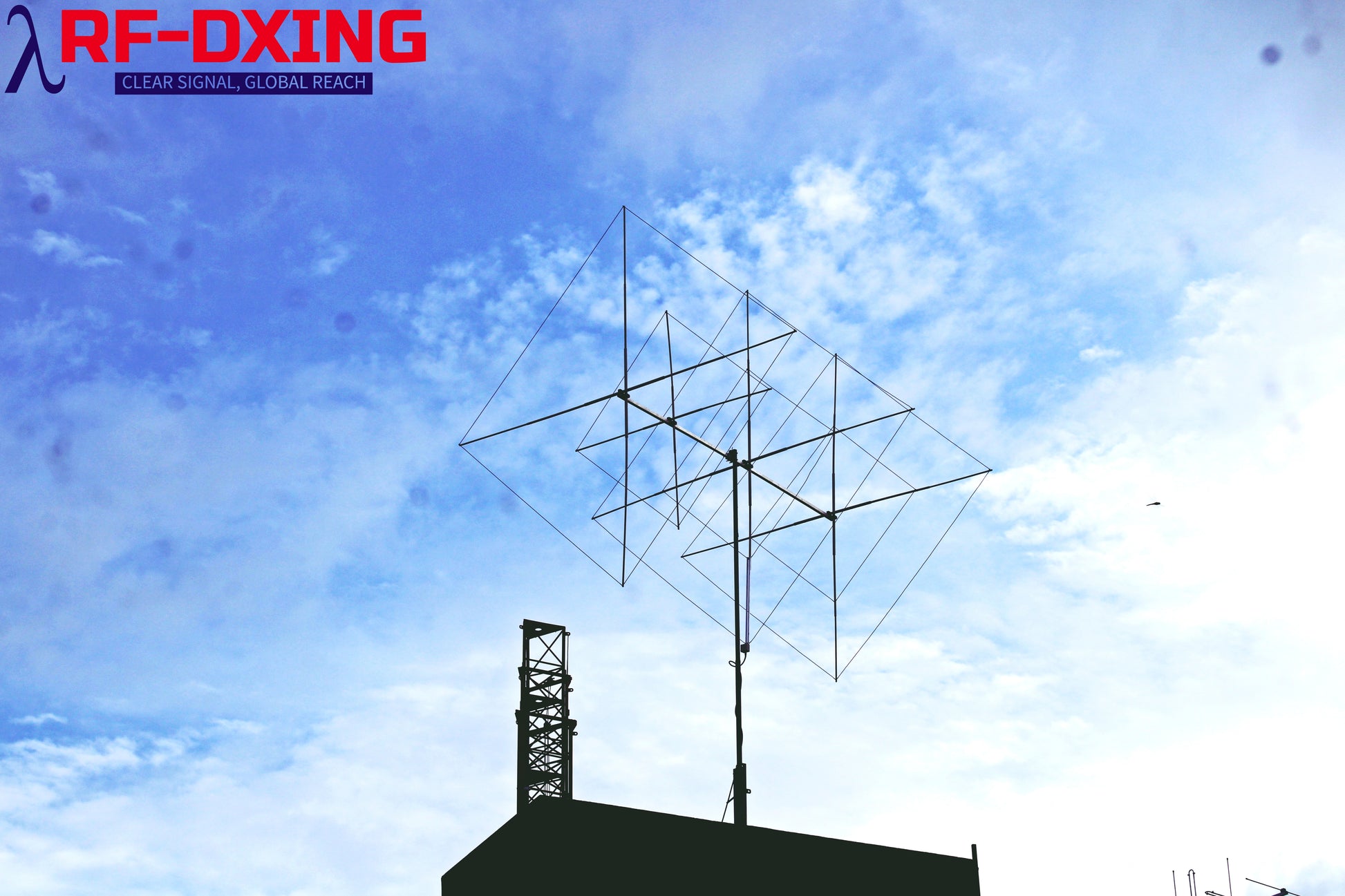

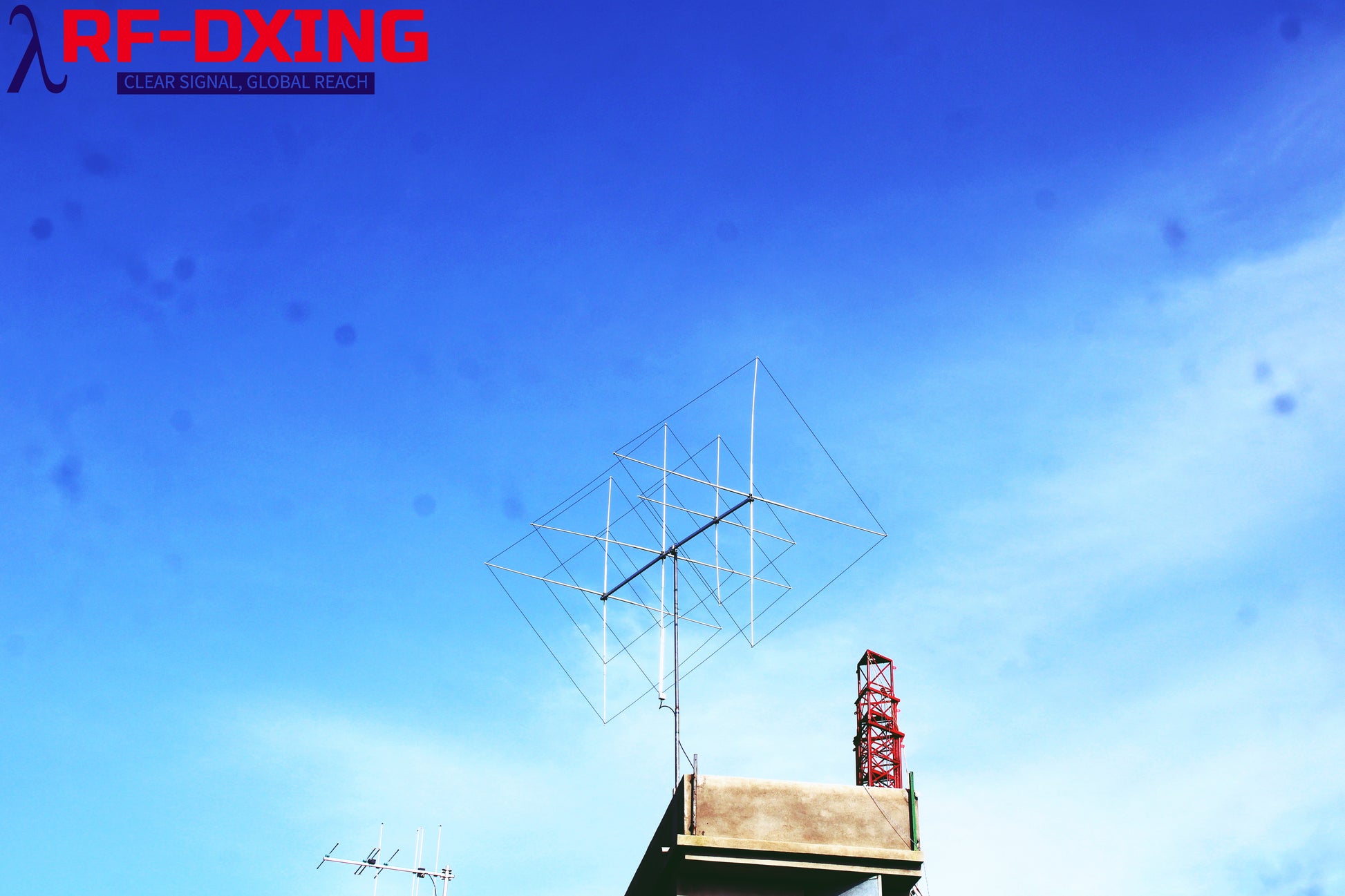

RFD-DQ106 is a high-gain, low-noise, full-wave dual-band Quad antenna covering the 10 m and 6 m amateur radio bands. It features 3 full-size elements on each band, delivering excellent forward gain, high front-to-back ratio, and outstanding signal-to-noise performance.

The antenna is constructed using high-strength fiberglass spreaders, a heavy-duty aluminium square boom, UV-resistant polypropylene (PP) clamps, and 2.5 sq. mm PVC-insulated pure copper radiators for long-term durability in harsh outdoor environments.

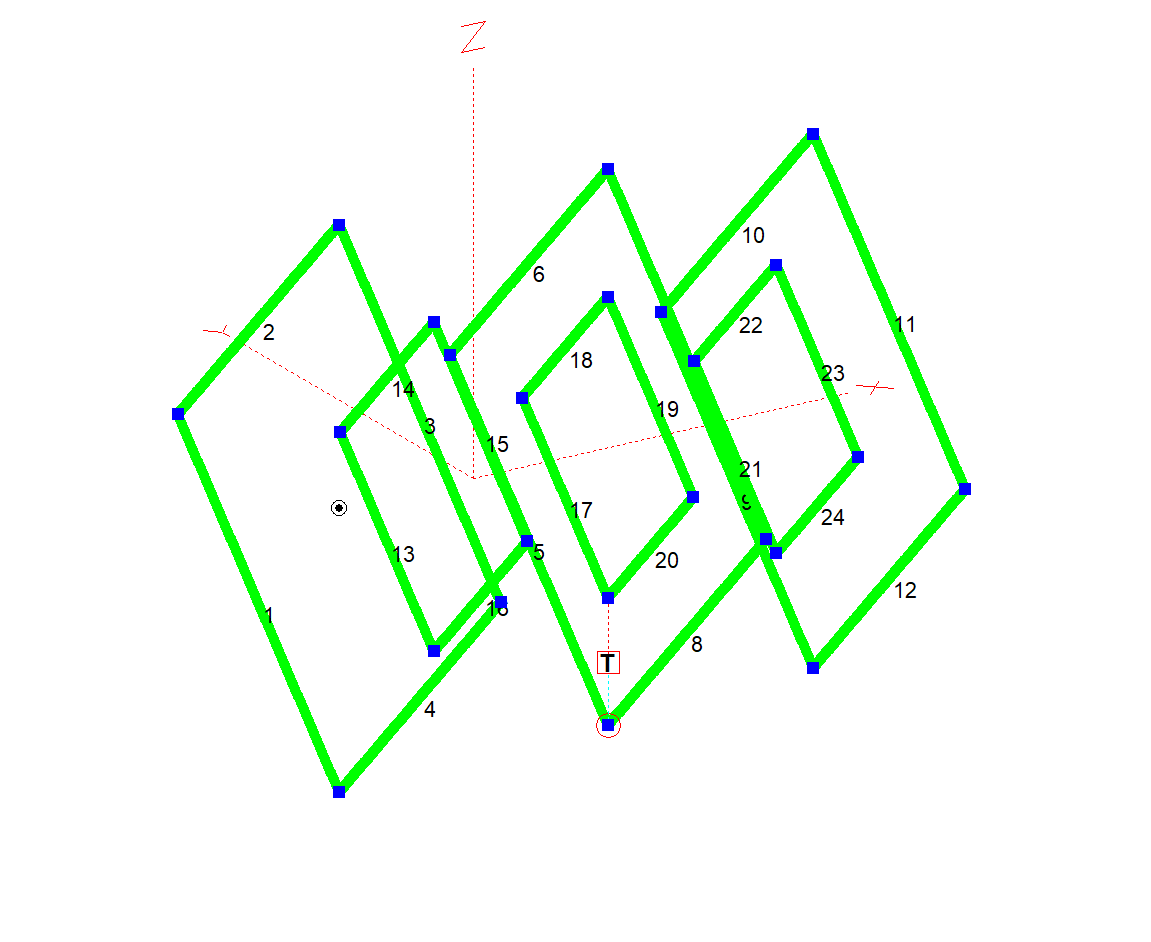

Designed and optimized using advanced electromagnetic simulation with the correct dielectric constant of the insulated conductors, the RFD-DQ106 provides accurate real-world performance with no tuning.

A single feed point efficiently excites both the 10 m and 6 m bands, allowing seamless dual-band operation without compromising gain, radiation pattern, impedance, or front-to-back ratio. The result is excellent performance on both bands with no noticeable pattern distortion or efficiency loss.

Electrical Specifications

Bands/Frequency

6m(50-51 MHz)

10m( 28- 28.7 MHz)

Gain( Free Space)

8.2 dBi

9.03 dBi

Gain( @ 10m AGL)

13.4 dBi

14 dBi

F/B

40 dB

28 dB

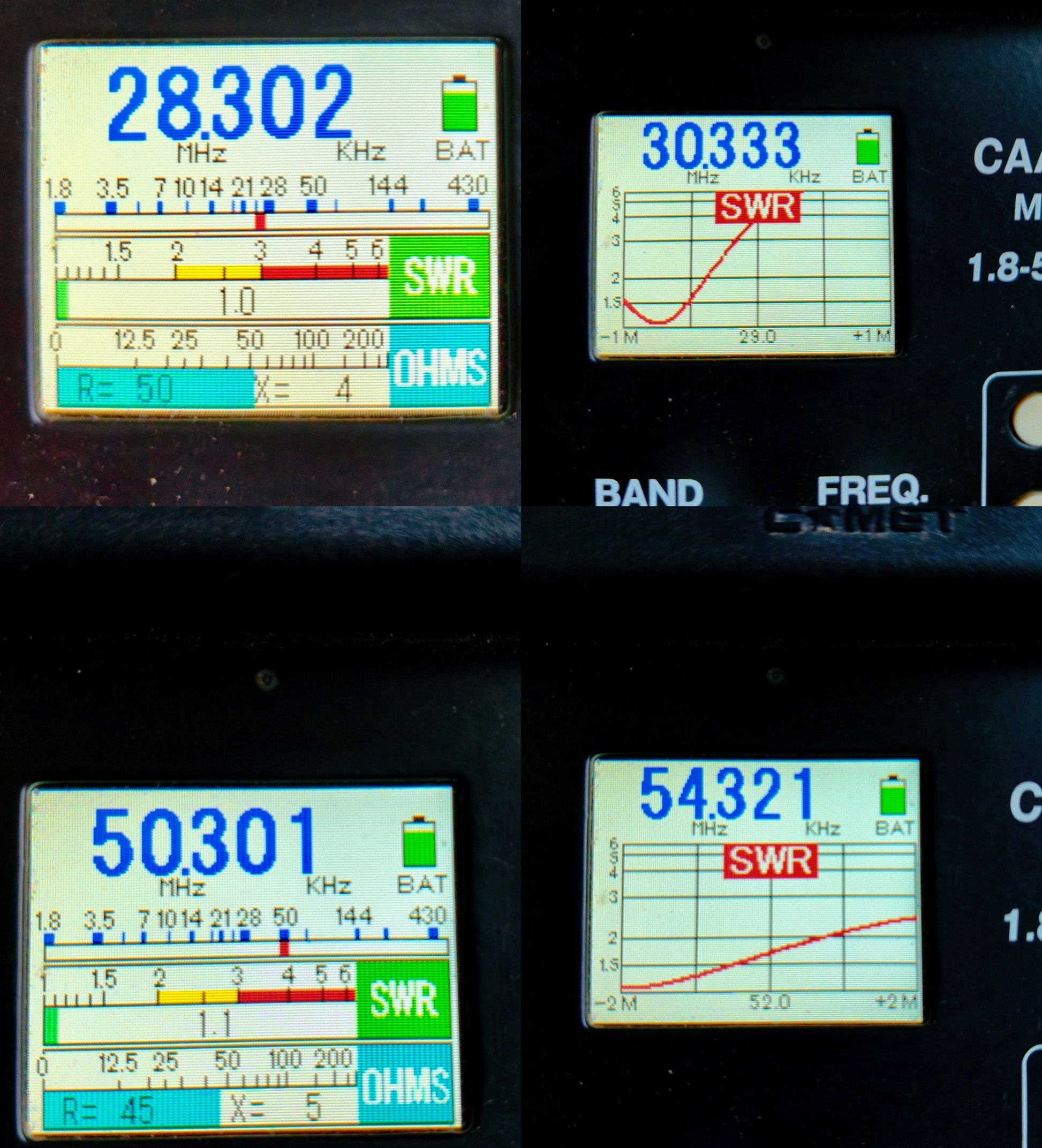

VSWR

 < 2.1( 700 KHz)

 < 1.5 ( 1 MHz)

Impedance

50 ohm

Power rating/Matching

3 kw+/ 1:1 Air core Choke

Radiation Pattern

Directional

Mechanical Specifications

Boom Length

3.6 m

Boom Dimension

38*38*2mm

Mounting Mast Diameter

50 mm

Longest Element Dimension( 10m Reflector)

2.79m*2.79m

Connector

SO-239

Turning Radius(Vertical and Horizontal)

2 m

Wind speed Survival

165 Km/h

Antenna Weight



Material used

Aluminum 6063 and 6061,SS-304, Industrial Grade Polyamide Clamp (Heavy Duty) & 2.5 Sq. MM PVC Enclosed Copper Wire
