RF-DXING ANTENNAS

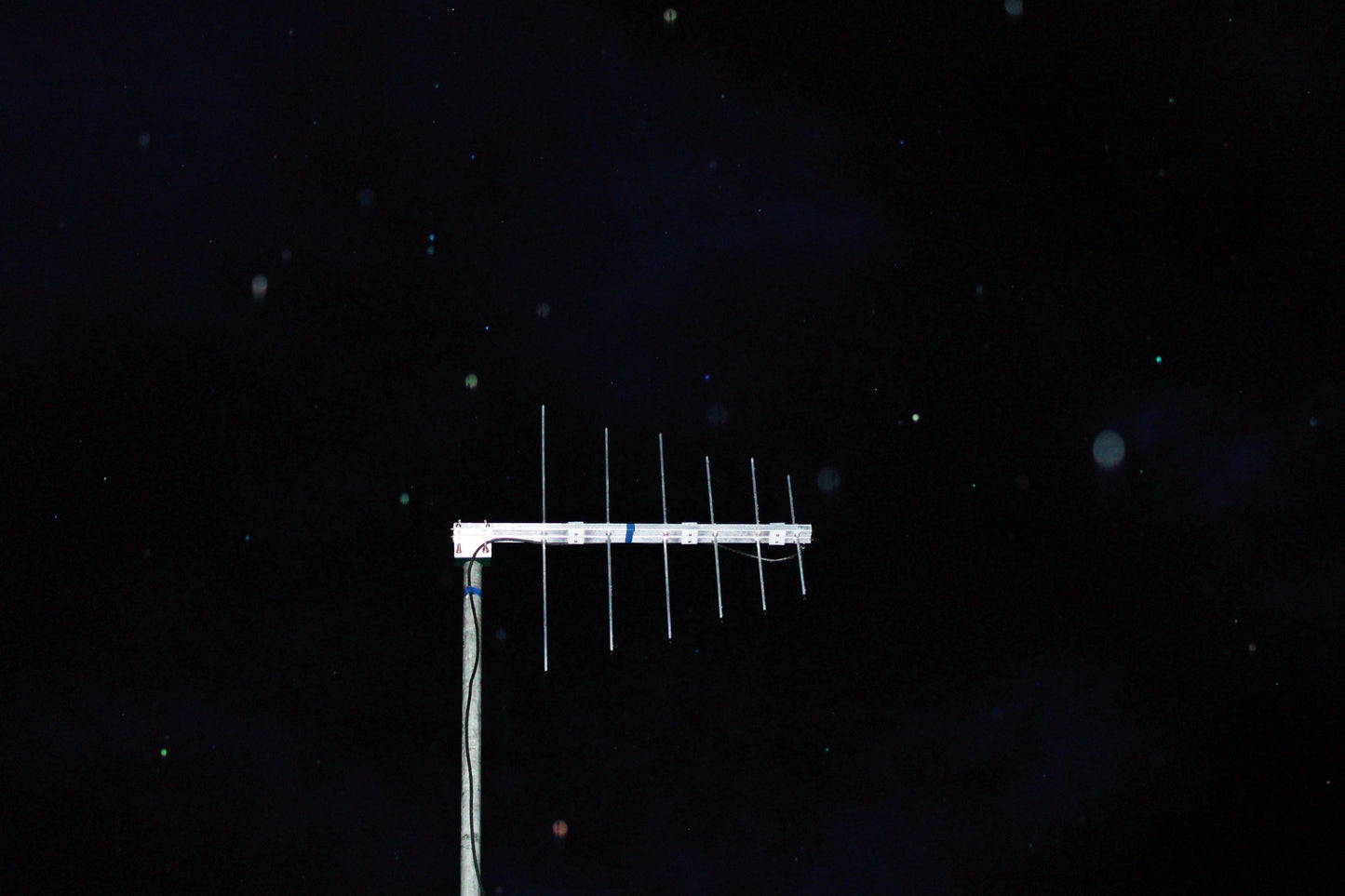

RFD-LP6DAB,6 Elements DAB/DAB+ Dxing Log Periodic Antenna.

RFD-LP6DAB,6 Elements DAB/DAB+ Dxing Log Periodic Antenna.

Regular price Rs10,000.00
Regular price Rs12,000.00 Sale price Rs10,000.00
Sale Out of stock

Electrical Specifications

Frequency

174-240 MHz

Gain( Free Space)

7.3 dBi

F/B

35 dB

VSWR

Less than 1.5

Impedance

75/50 ohm

Matching

1:1 Current choke

Radiation Pattern

Directional



Mechanical Specifications

Boom Length

0.84 m

Boom Dimension

19mm*19mm*2mm( Twin)

Mounting Mast Diameter

1.5 Inch to 2 Inch

Longest Element length

0.866 m

Tapered Elements

N/A

Connector

F-Female

Turning Radius

0.44 M

Wind speed Survival

175 Km/h

Antenna Weight

1 Kg

Gross Weight Including Shipping Box

1.8 Kg

Shipping Box Dimension

1.02 m

Material used

Aluminum 6063, 6061, SS-304, PP Clamp and Nylon
