RF-DXING ANTENNA

RFD-4MQ2010, 4 ELEMENTS 5 BANDS HF QUAD 20-10M BAND.

RFD-4MQ2010, 4 ELEMENTS 5 BANDS HF QUAD 20-10M BAND.

$1,895.00 USD
$1,895.00 USD
Sale Out of stock

Meet the RFD-4MQ2010, Ultra High Gain and Ultra Low Noise 4-Element, 5-Band HF Quad

Engineered for serious DXers and competitive contesters, the RFD-4MQ2010 delivers outstanding performance across the five major HF amateur radio bands from 20m through 10m. Designed for demanding operating environments, it combines a robust mechanical structure with an innovative multiband feeding system.

Advanced Engineering. One Reliable Feed.

While many conventional multiband quad antennas depend on band-switching arrangements, separate feed systems, or quarter-wave stub matching, the RFD-4MQ2010 uses our Parallel Transmission Line Single-Feed System.

This architecture provides a common single-coax feed across all five bands, supporting consistent, dependable multiband operation without switching between separate feed systems.

Heavy-Duty Construction for Long-Term Performance

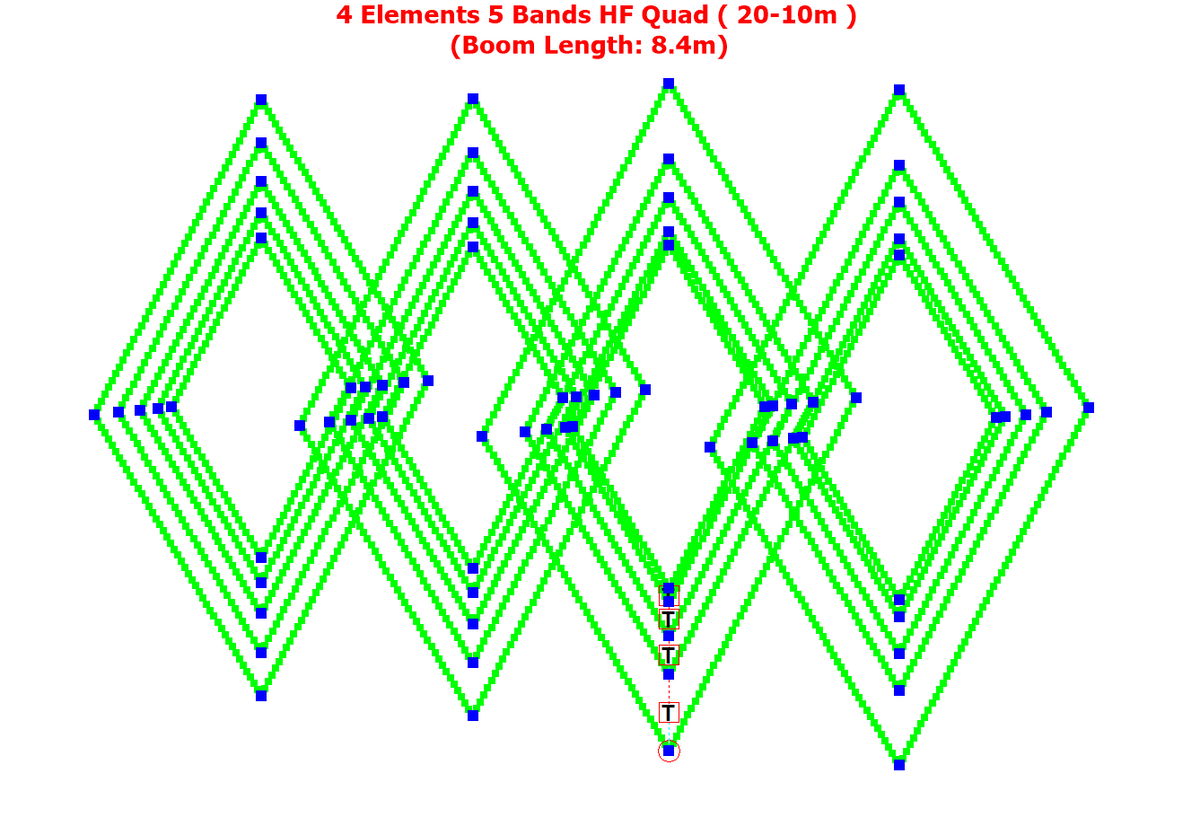

Radiating Elements

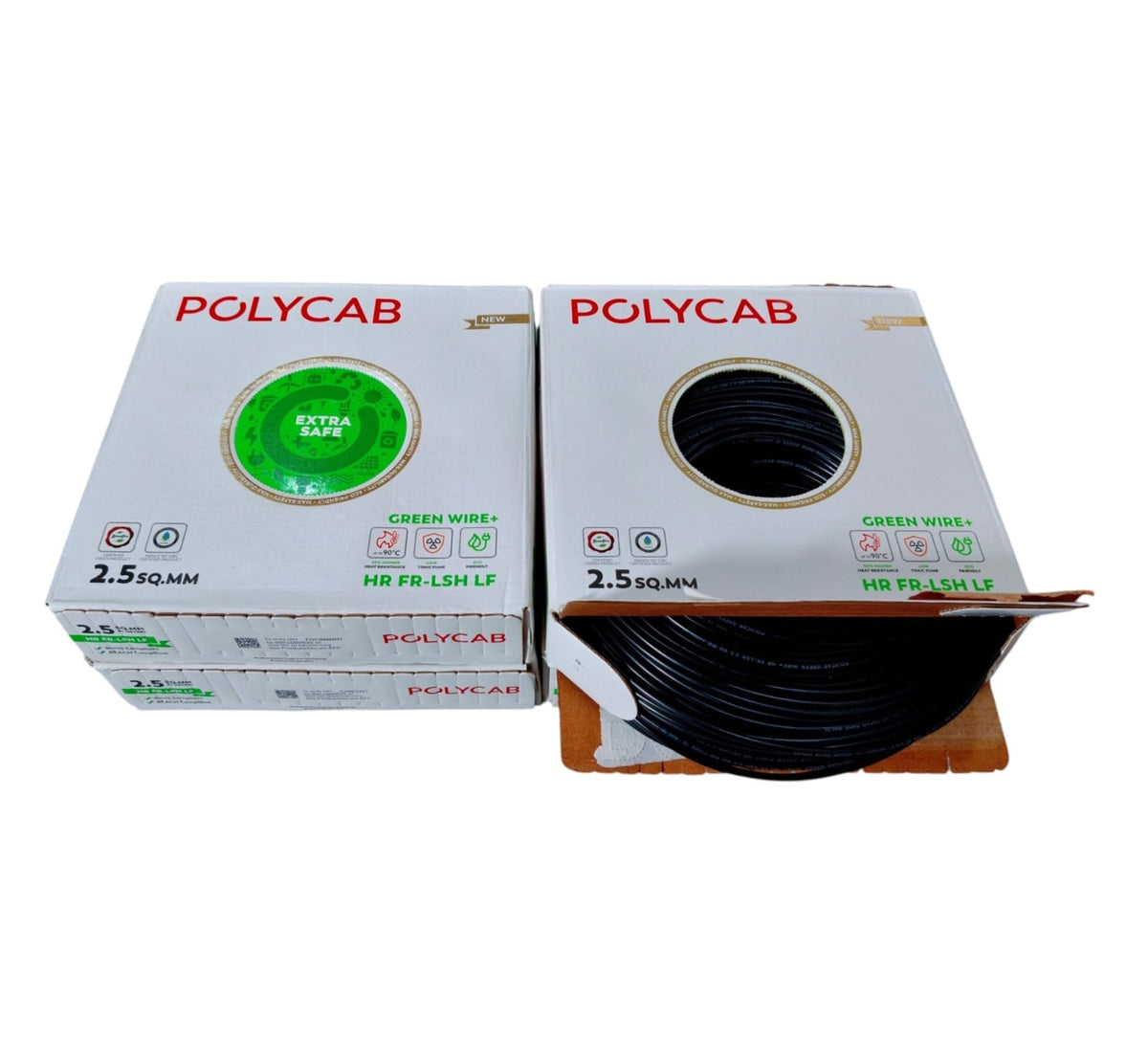

  • 2.5 mm² pure copper wire with 0.8 mm PETG insulation for enhanced outdoor protection.
  • Approximately 9 kg of copper wire used across all five bands.

Telescopic Fibreglass Spreaders

  • Telescopic construction ranging from 32 mm to 22 mm outside diameter.
  • 2 mm wall thickness for a strong, practical structural design.

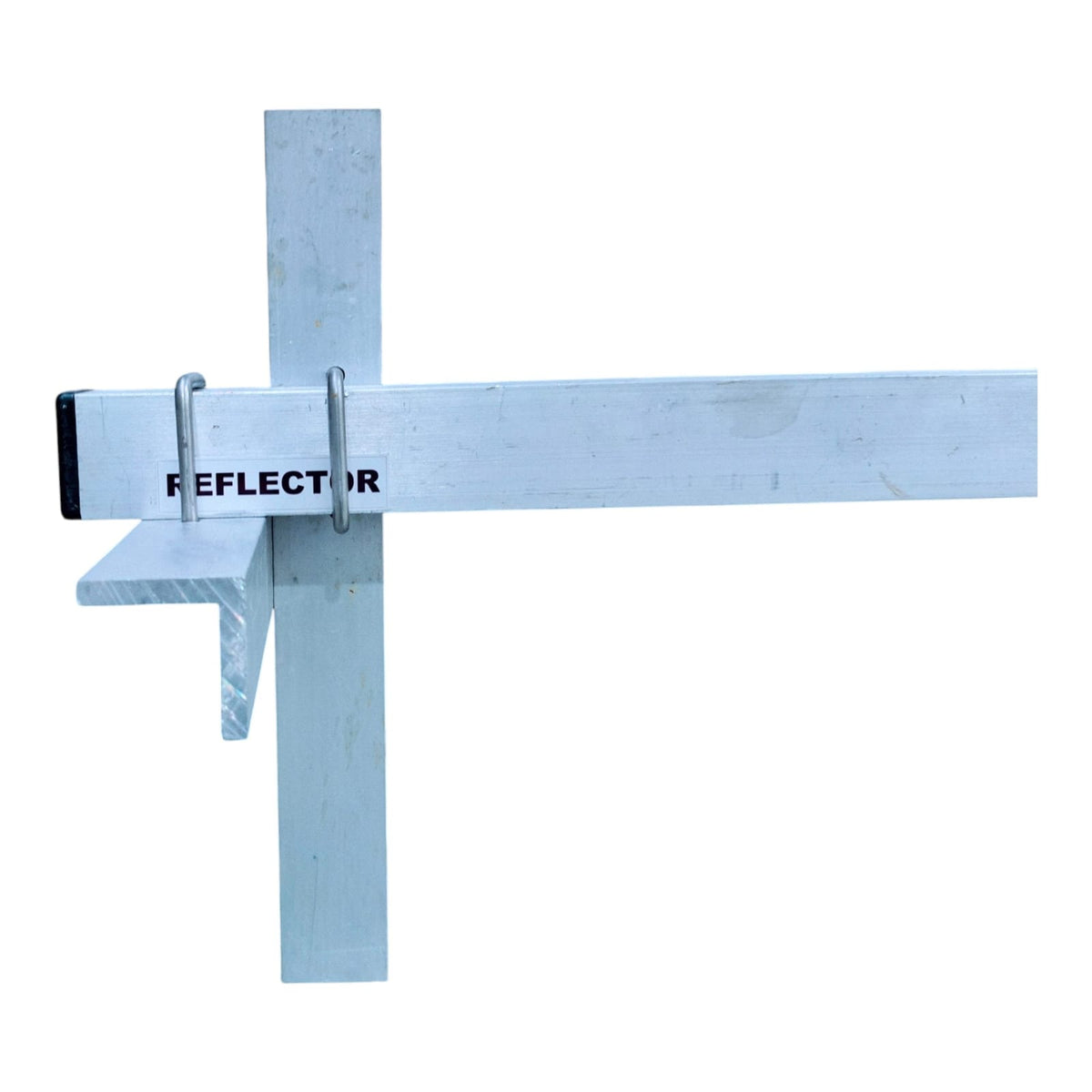

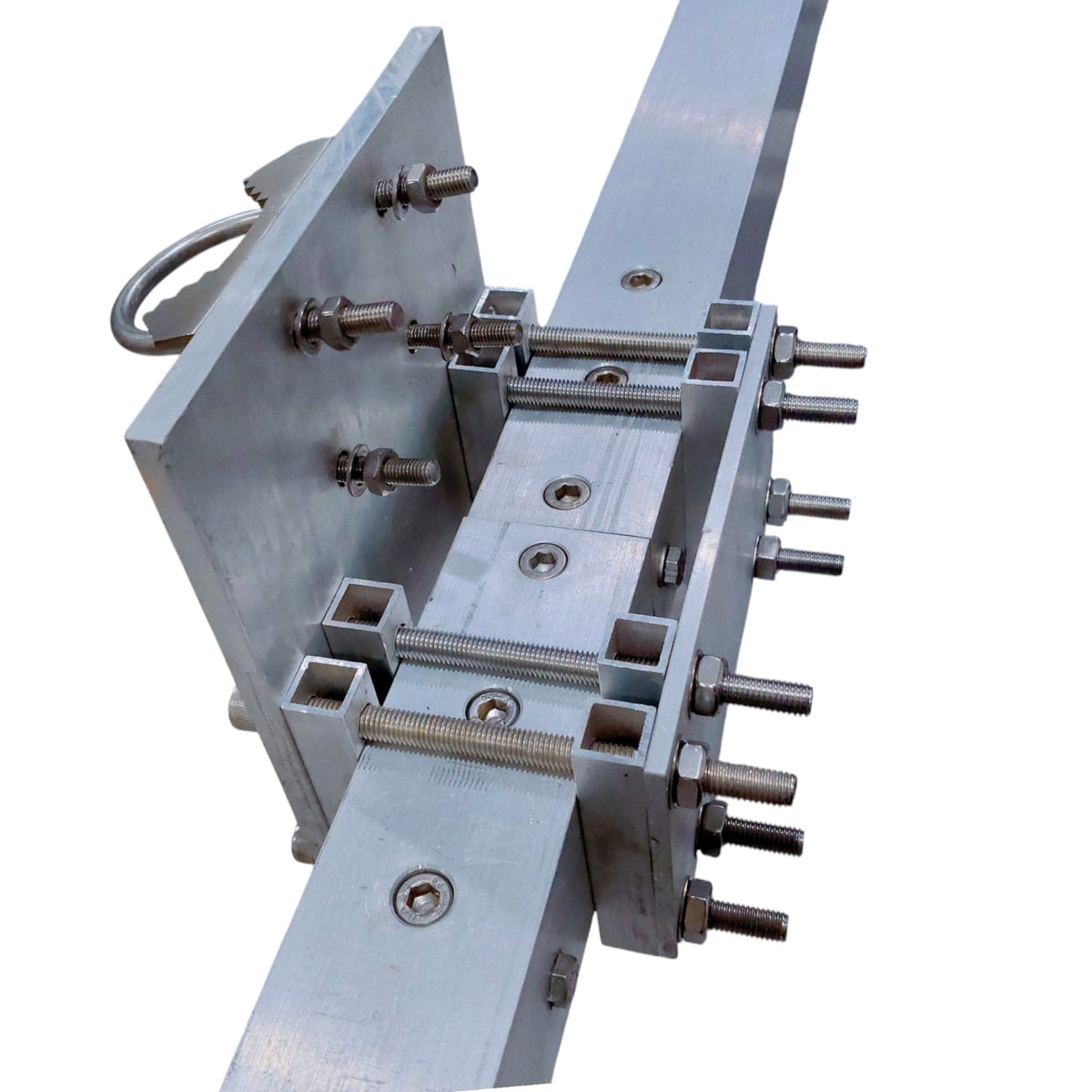

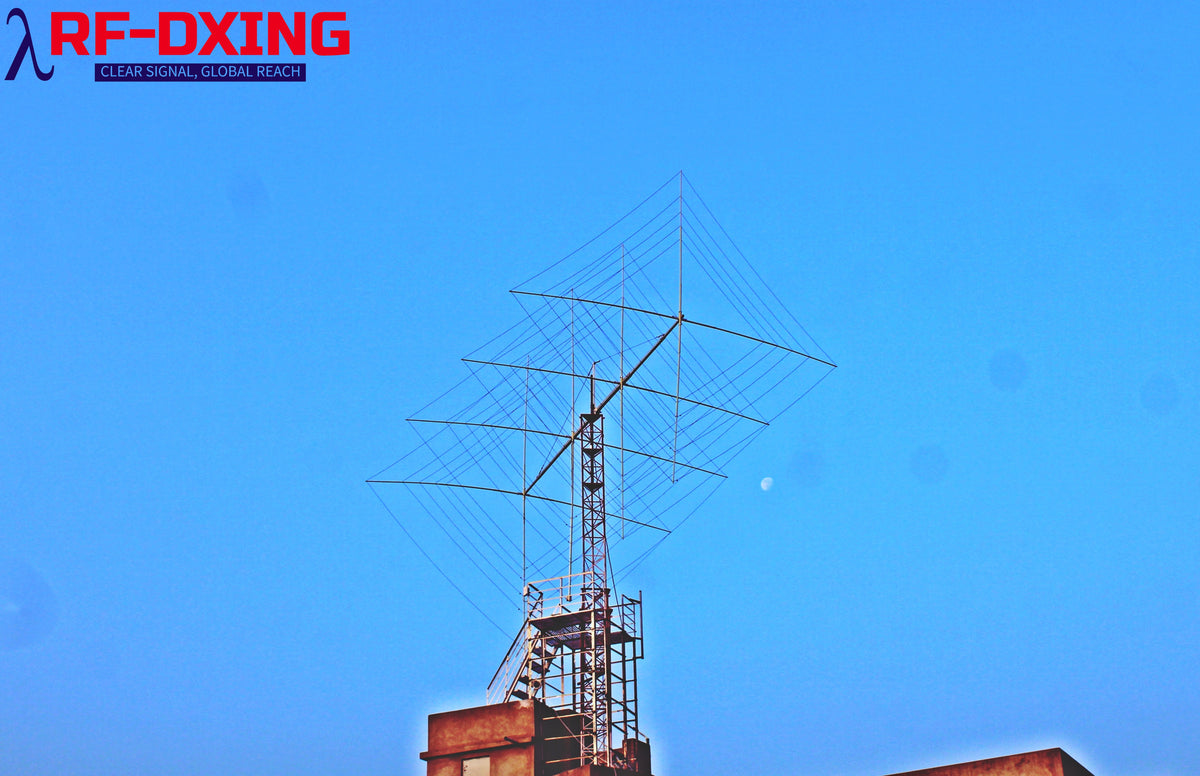

Heavy-Duty Aluminium Boom

  • Three aluminium square-tube sizes: 60 × 60 × 3 mm, 50 × 50 × 3 mm, and 40 × 40 × 2 mm.
  • Approximately 30 kg of aluminium boom structure alone, built to meet demanding mechanical requirements.

Professional-Grade Hardware

  • SS-304 stainless-steel boom truss support wire.
  • SS-304 stainless-steel fasteners and fittings throughout.

Built for Serious DXing and Contesting

The RFD-4MQ2010 is designed for operators who want to capitalize on every opening, overcome challenging propagation conditions, and compete confidently in crowded pile-ups.

Whether you are pursuing rare DX stations, taking part in major contests, or maximizing the potential of low-power operation, this antenna is engineered to provide a capable and dependable station presence.

When propagation is challenging and every contact matters, your antenna system can make the difference.

Electrical Specifications

Bands/Frequency

20m

    17M

15M

12M

10M

Gain( Free Space)

8.5 dBi

9.51 dBi

9.7 dBi

9.5 dBi

10.25 dBi

Gain at 20m AGL

13.5 dBi

14.6 dBi

15 dBi

14.52 dBi

15.3 dBi

Front Back Ratio

22 dB

23 dB

  38 dB

  35 dB

  25 dB

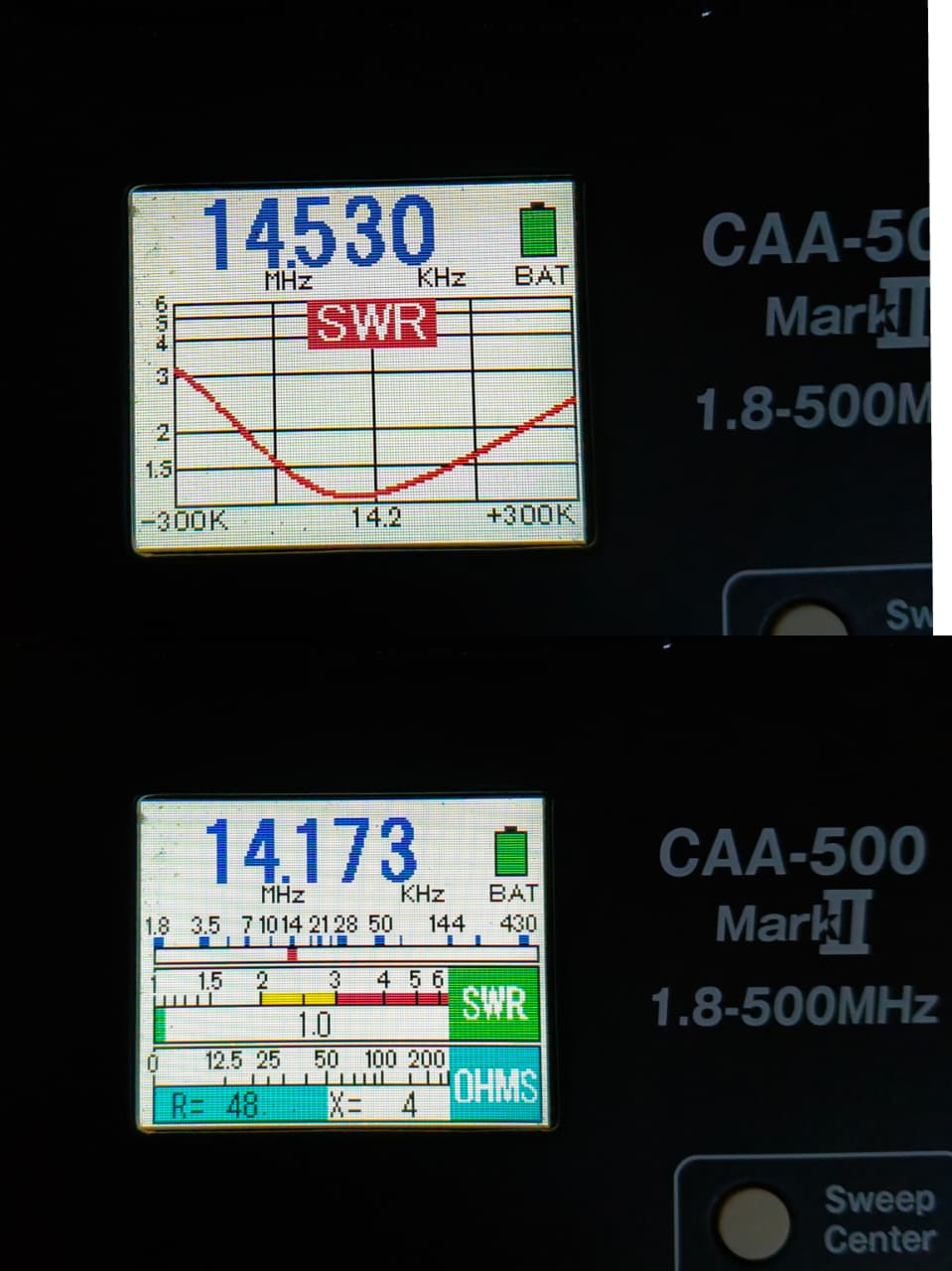

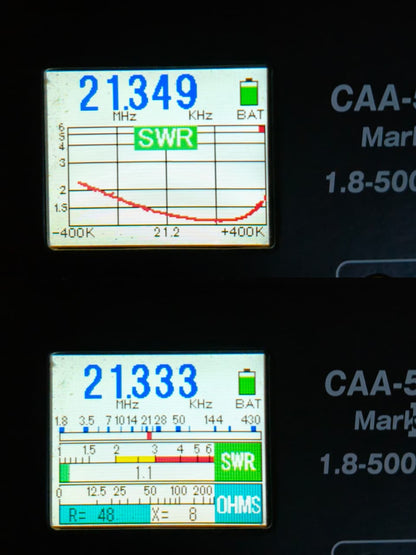

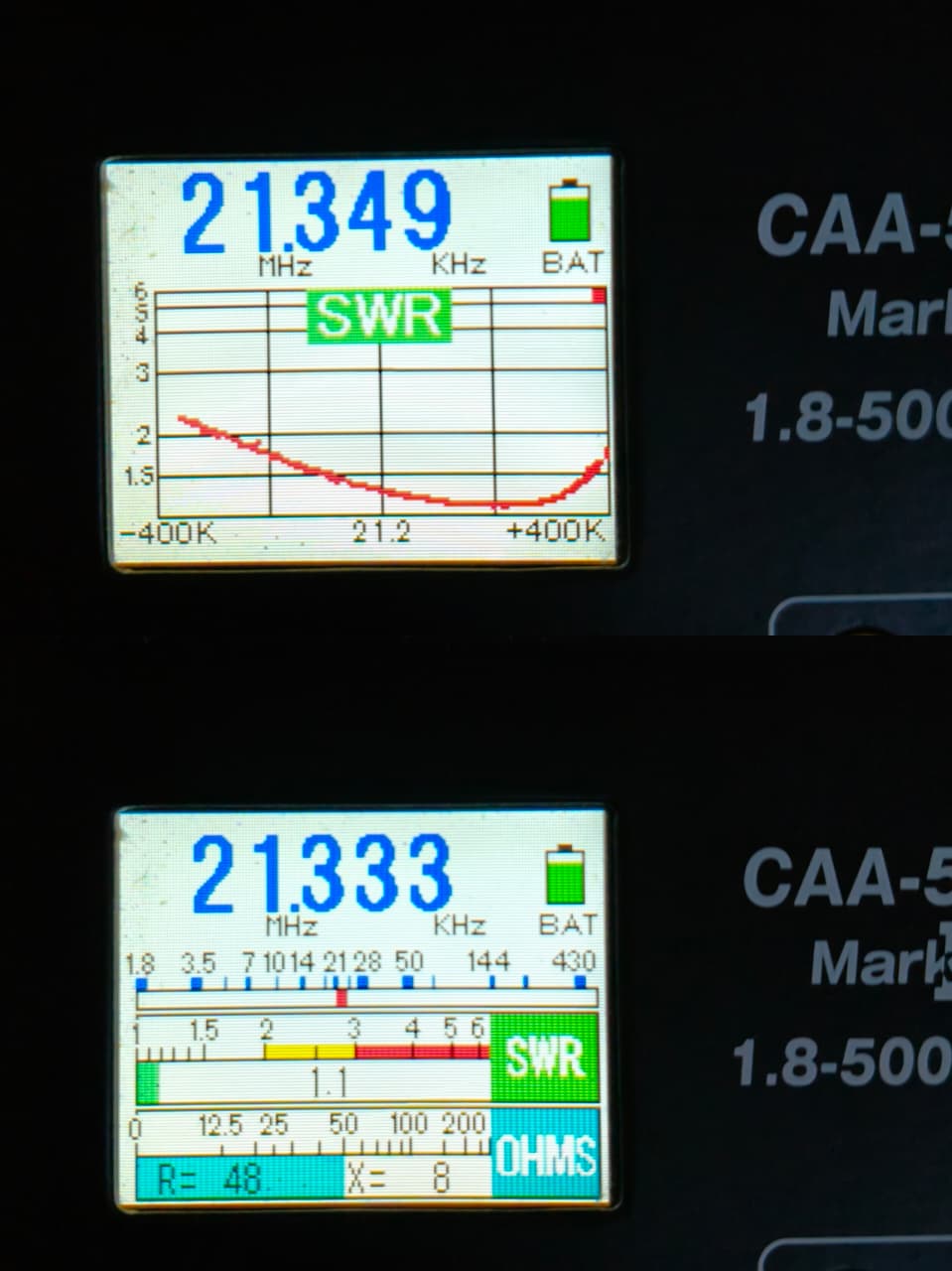

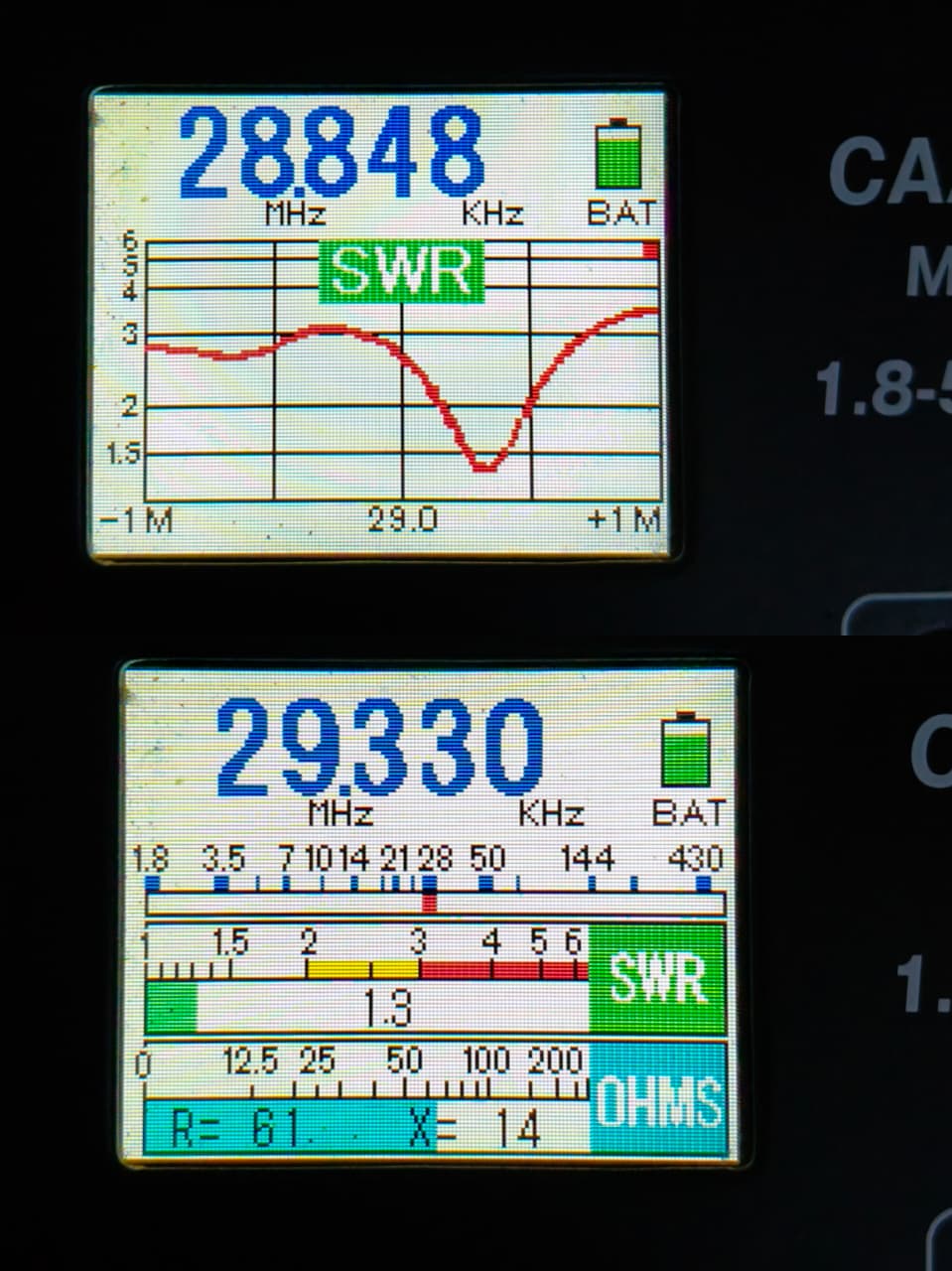

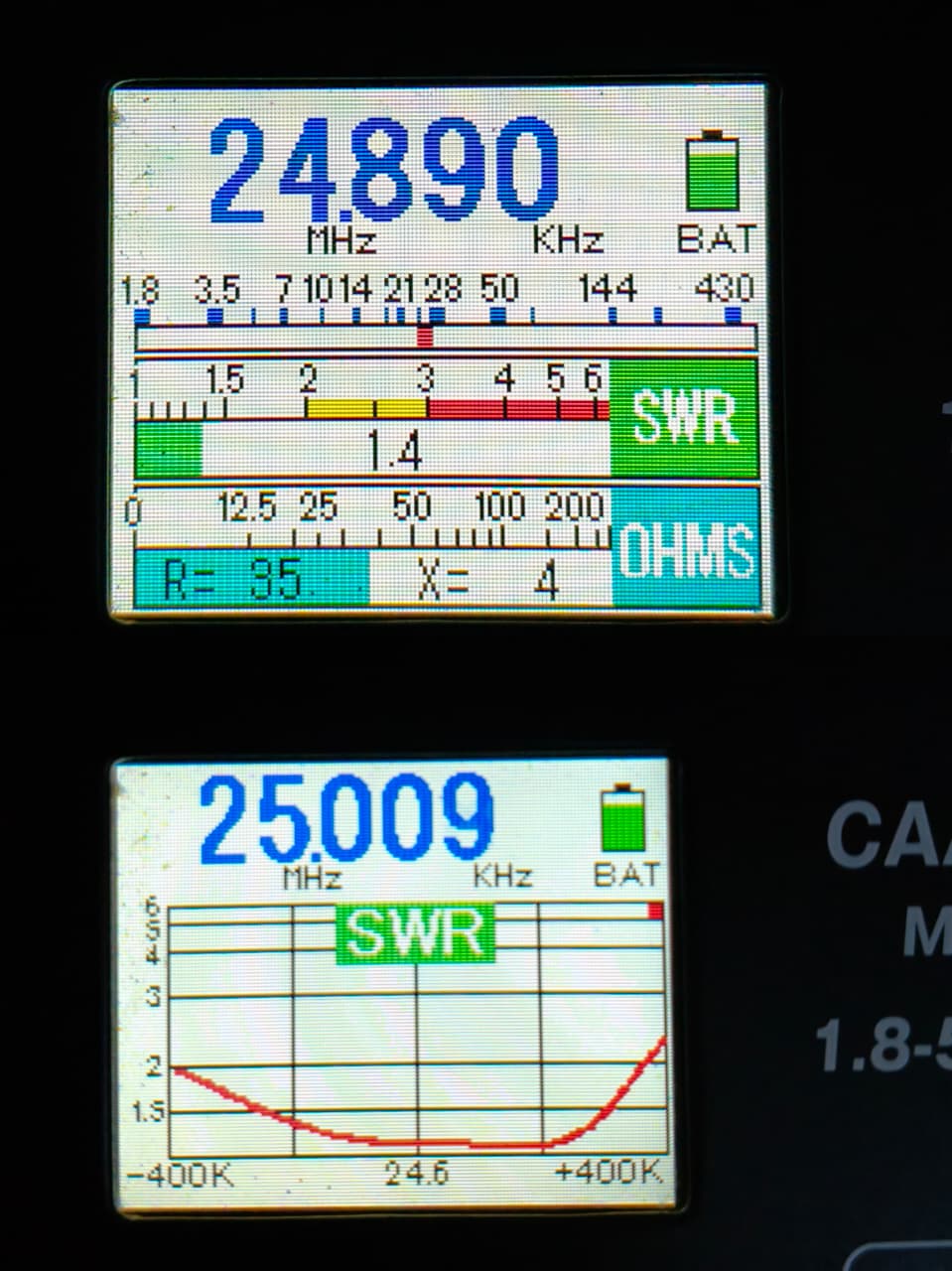

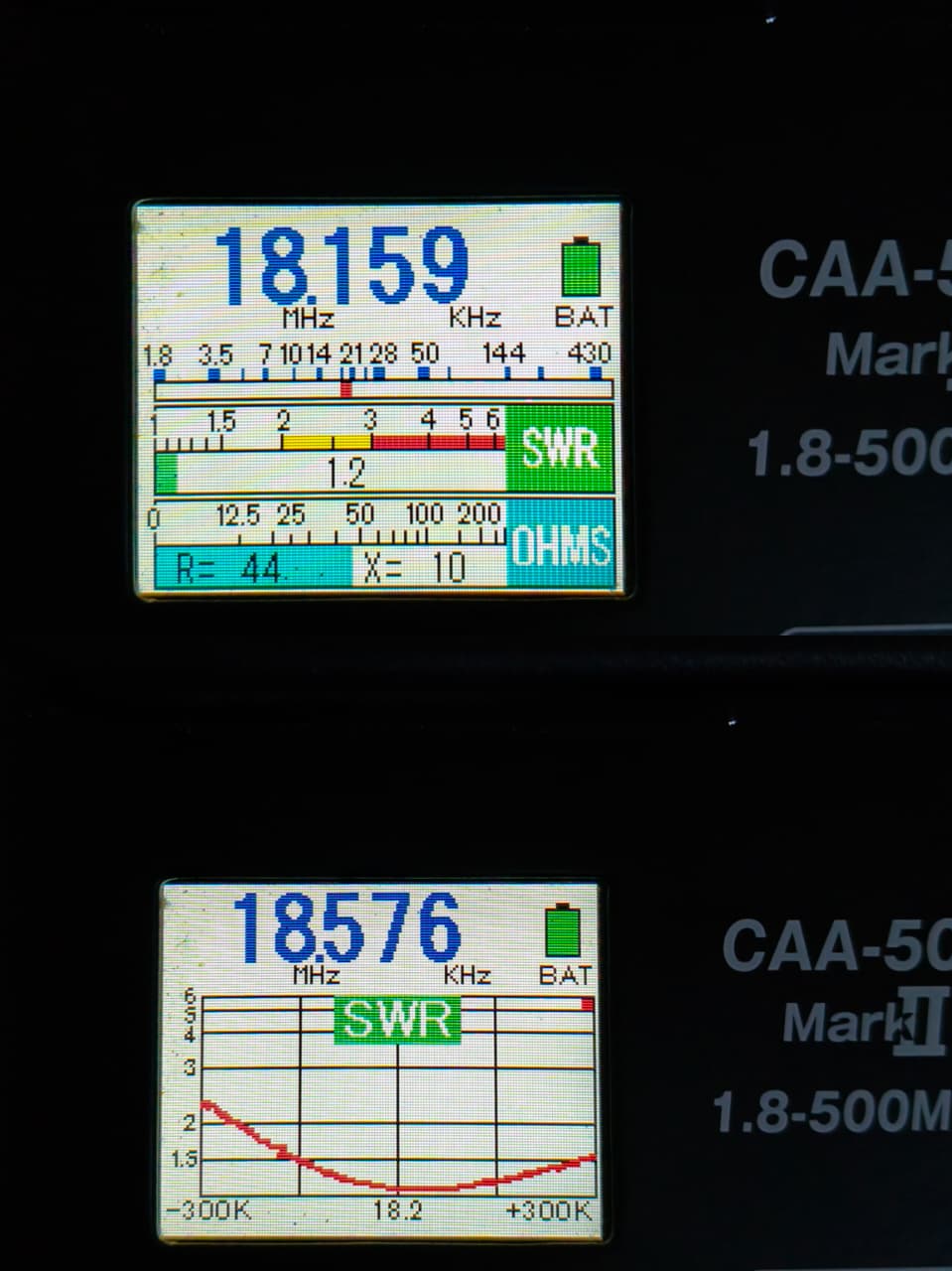

VSWR

Less than 1.9 on all Bands

Feed Point

Single Feed for all 5 Bands( All Driven Elements are Connected through 12mm OD aluminium Tube parallel transmission lines with specific characteristic impedance)

Impedance( Final Output)

50 ohm

Power rating/ Matching

2 K.W through 2:1 Current Bal-Un

Radiation Pattern

Directional



Mechanical Specifications

Mounting Mast Diameter

2 Inch

Boom Length

8.4 m

Wire Elements

2.5 sq.  mm with 0.8 mm PETG Insulation

Connector

SO-239

Turning Radius

4.2 m

Wind speed Survival

150 Km/h

Antenna Weight

                              60 kg

Material used

Aluminium 6063,6061,FRP Tubes, SS-304 & 2.5 sq. mm PETG enclosed pure copper wire
