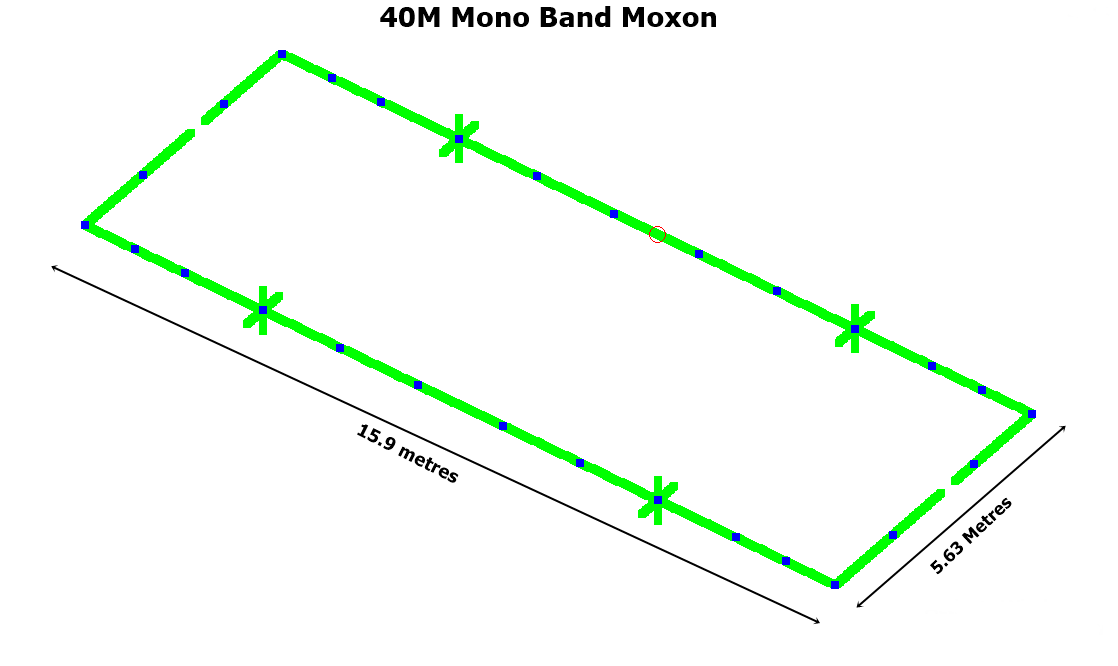

RFD-MX40, 40M/7 MHz Mono Band Moxon Antenna.
RFD-MX40, 40M/7 MHz Mono Band Moxon Antenna.
Couldn't load pickup availability
International Orders – Antenna Preparation & Payment Terms
We require 15 to 20 days to prepare antennas for international orders.
Please note that preparation time may vary depending on the antenna size.
For international buyers, we offer flexible payment options:
-
Option 1: Pay 50% in advance or any token amount, and the balance before shipping.
-
Option 2: Pay the full amount upfront, if preferred.
You’re free to choose the option that best suits your needs. Feel free to contact us with any questions or specific requirements.
Electrical Specifications
|
Frequency |
7 - 7.200 MHz |
|
Gain( Free Space) |
6.02 dBi @ 7.1 MHz( Peak 6.48 dBi) |
|
F/B |
27 dB |
|
VSWR |
Less than 1.5 ( 200 KHz) |
|
Impedance |
50 ohm |
|
Power rating/Matching |
3 KW+/ 1:1 Maxwell choke |
|
Radiation Pattern |
Directional |
Mechanical Specifications
|
Boom Length |
5.63 m |
|
Boom Dimension |
60mm*60mm*3mm and 50mm*50mm*3mm |
|
Mounting Mast Diameter |
1.5 Inch to 2 Inch |
|
Width of the Antenna |
15.9 m |
|
Tapered Elements |
40 mm to 9.5 mm |
|
Connector |
SO-239 |
|
Turning Radius |
7.95 m |
|
Wind speed Survival |
150 Km/h |
|
Antenna Weight |
Confirmation after Build |
|
Material used |
Aluminum 6063 SS-304, Industrial Grade Polyamide Clamp (Heavy Duty) |
