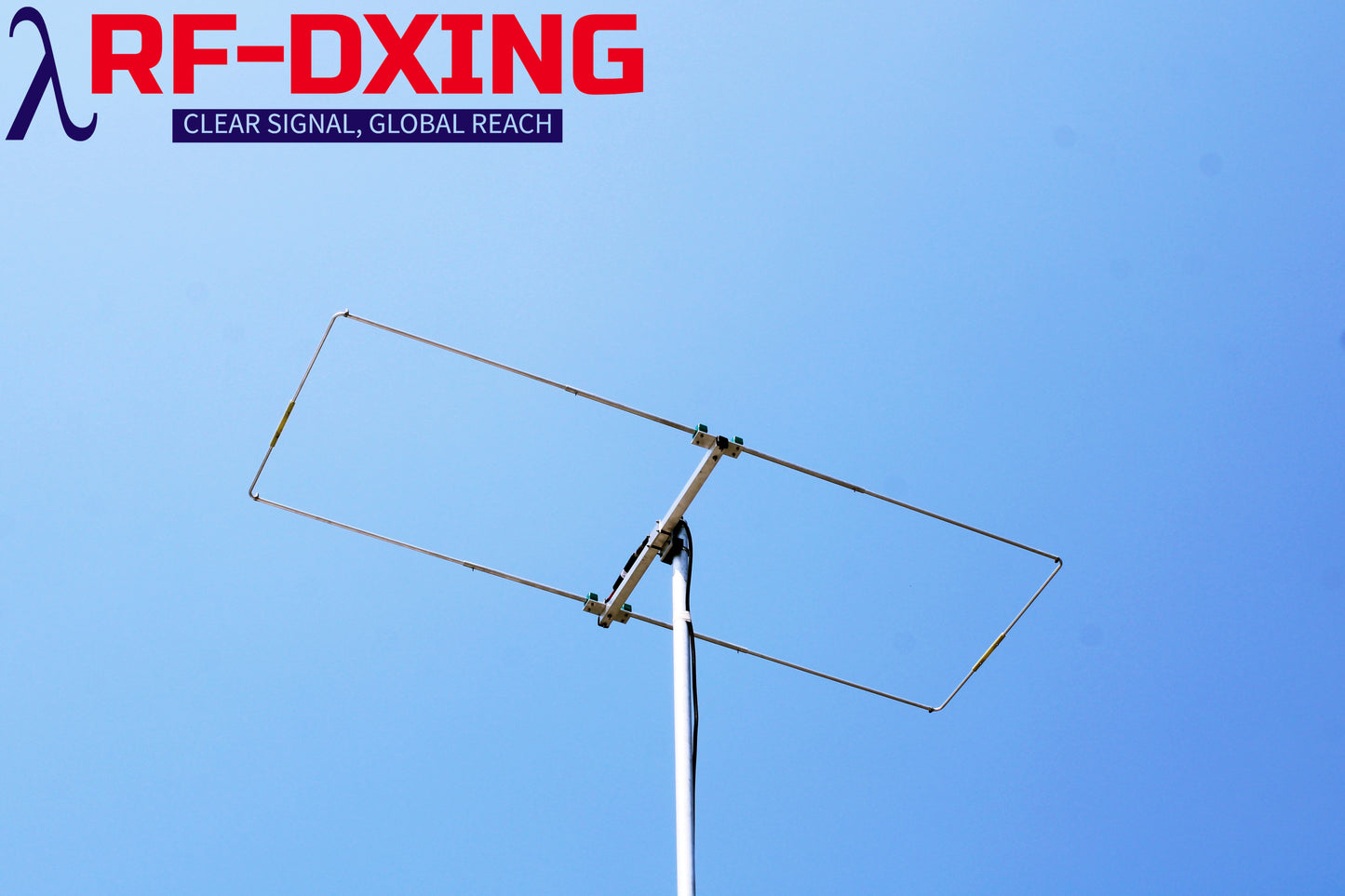

RFD-MX50, 6M/50 MHz Mono Band Moxon Antenna.

Bands/Frequency

6M Band/ 50-51 MHz

Gain( Free Space)

6.1 dBi

F/B

30 dB

VSWR

Less than 1.3 (1 MHz)

Impedance

50 ohm

Power rating/Matching

3 KW+/ 1:1 Maxwell choke

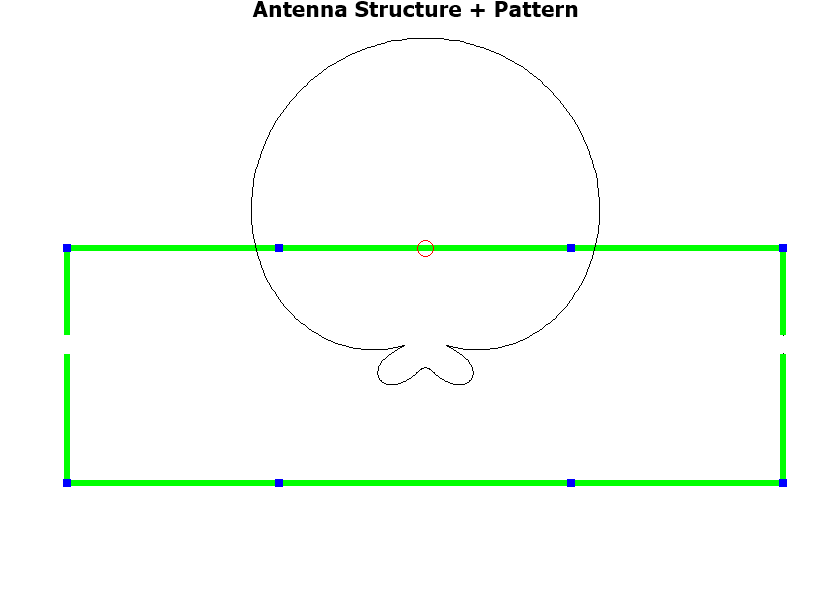

Radiation Pattern

Directional

Boom Length

0.85 m

Boom Dimension

30mm*30mm*3mm

Mounting Mast Diameter

1.5 Inch to 2 Inch

Width of the Antenna

2.1m

Tapered Elements

16mm to 9.5mm

Connector

SO-239

Turning Radius

1.05m

Wind speed Survival

200 Km/h

Antenna Weight

3.5 Kg

Gross Weight Including Shipping Box

4.3 Kg

Shipping Box Dimension

1.2 M

Material used

Aluminum 6063, 6061, SS-304, Industrial Grade Polyamide Clamp (Heavy Duty)
