RF-DXING ANTENNAS

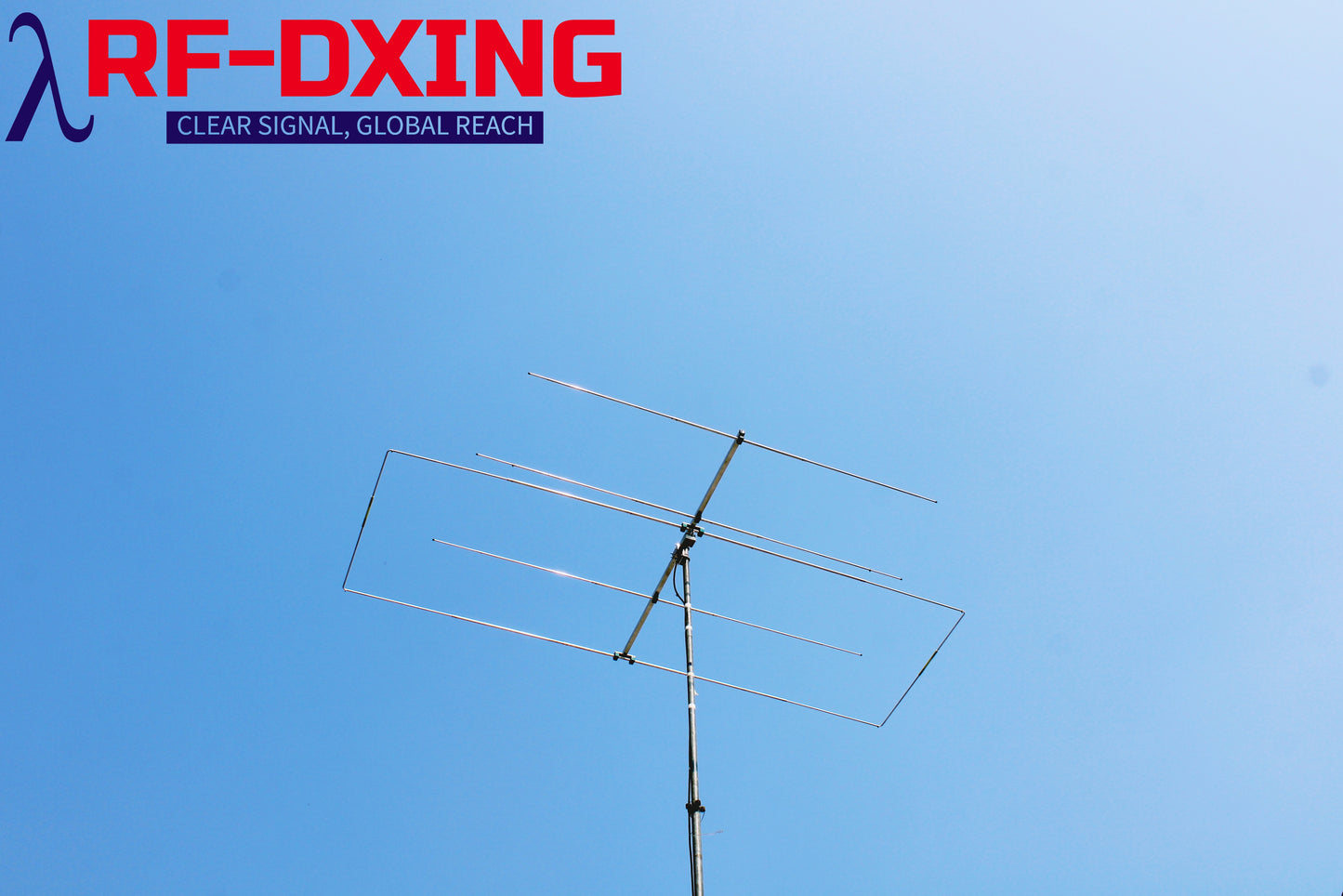

RFD-MXY2B-16, Dual Band Moxon-Yagi for 10m, 6m

RFD-MXY2B-16, Dual Band Moxon-Yagi for 10m, 6m

Regular price Rs0.00
Regular price Sale price Rs0.00
Sale Out of stock

Electrical Specifications

Bands/Frequency

10m(28-29 MHz), 6m(50-51 MHz)

Gain( Free Space)

6.19 dBi at 10m & 7.48 dBi at 6m

F/B

29 dB at 10m & 32 dB at 6m

VSWR

Less than 1.5 at 10m(1 MHz), less than 1.5 at 6m ( 700 KHz)

Impedance

50 ohm

Power rating/Matching

3 KW+/ 1:1 Maxwell choke

Radiation Pattern

Directional



Mechanical Specifications

Boom Length

2.17 m

Boom Dimension

30mm*30mm*3mm

Mounting Mast Diameter

1.5 Inch to 2 Inch

Width of the Antenna

4.06 m

Tapered Elements

19 mm to 9.5 mm

Connector

SO-239

Turning Radius

2.03 m

Wind speed Survival

150 Km/h

Antenna Weight

7 Kg

Gross Weight Including Shipping Box

8 Kg

Shipping Box Dimension

1.3 m

Material used

Aluminum 6063, 6061, SS-304, Industrial Grade PP Clamp (Heavy Duty)
