RF-DXING ANTENNA

RFD-Q271, 27 MHZ (11/10M) SIGNLE ELEMENT QUAD ANTENNA.

RFD-Q271, 27 MHZ (11/10M) SIGNLE ELEMENT QUAD ANTENNA.

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Out of stock

Electrical Specifications

Bands/Frequency

11m/ 27 – 27.7 MHZ & 10m 28 - 29 MHz

Gain( Free Space)

3.2 dBi ( 8.21 dBi @ 10m AGL)

F/B

0

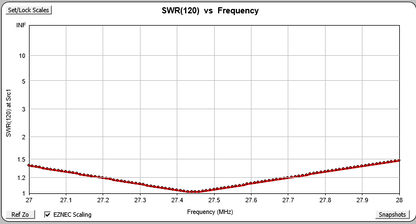

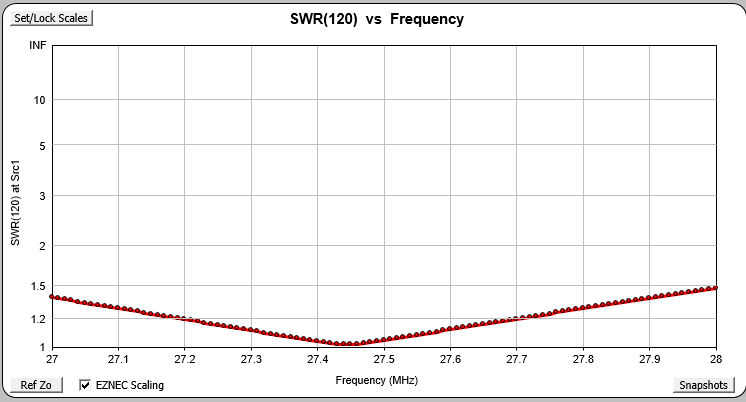

VSWR

  • < 1.5 ( 1 MHz) - 11m
  • < 3.1 ( 1 MHz) - 10m

Impedance

50 ohm

Power rating/Matching

3 kw+/ 1:1 Air core Choke

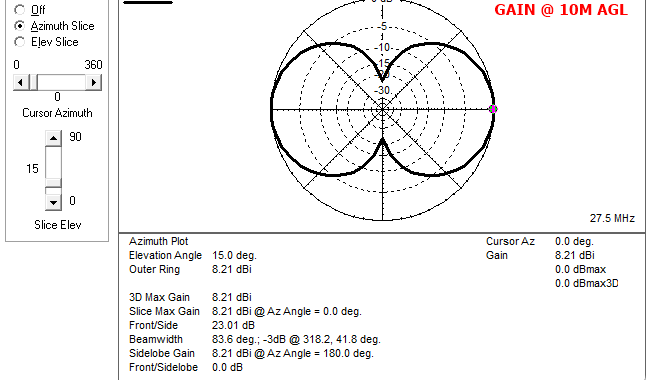

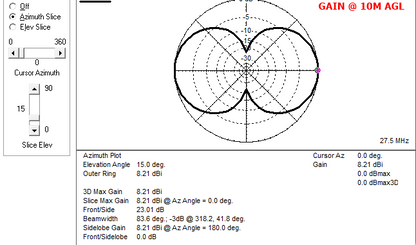

Radiation Pattern

Directional

Mechanical Specifications

Boom Length

0.33 m

Boom Dimension

30*30*2mm

Mounting Mast Diameter

38 - 50 mm

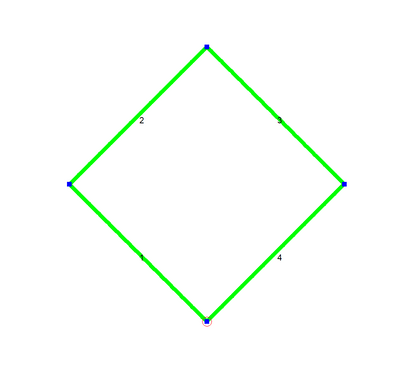

Quad Frame Dimension



Connector

SO-239

Turning Radius(Vertical and Horizontal)



Wind speed Survival

165 Km/h

Antenna Weight

Material used

Aluminium 6063 and 6061,SS-304, Industrial Grade Polyamide Clamp (Heavy Duty) & 2.5 Sq. MM PVC Enclosed Copper Wire
