RF-DXING ANTENNA

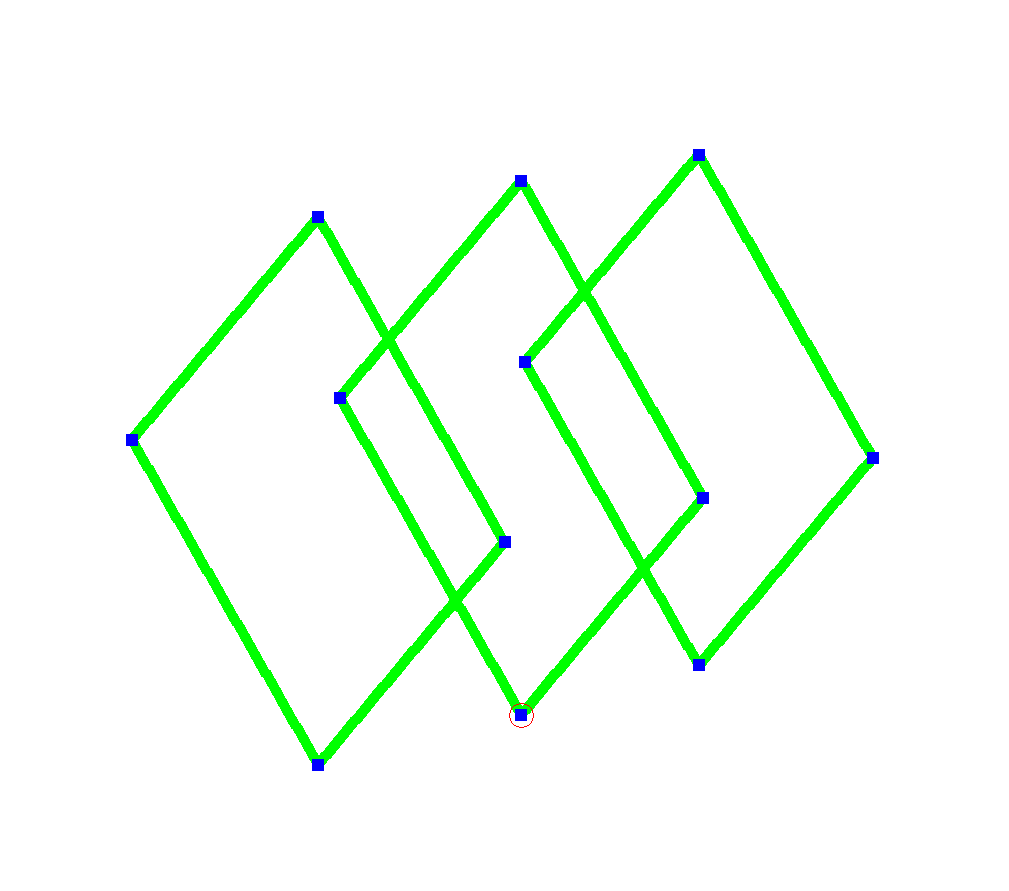

RFD-Q273, 27 MHZ (11 M) 3 ELEMENTS QUAD ANTENNA.

RFD-Q273, 27 MHZ (11 M) 3 ELEMENTS QUAD ANTENNA.

Regular price $370.00 USD
Regular price Sale price $370.00 USD
Sale Out of stock

Description

The RFD-Q273 is a compact, lightweight, and exceptionally high-gain 3-element quad antenna designed for the 11m CB band. Despite having three elements, it delivers performance comparable to a 4-element Yagi antenna while maintaining excellent efficiency.

Its ultra-low-noise characteristics help operators receive extremely weak signals with remarkable clarity. At the same time, the antenna's high gain ensures your transmitted signal is heard louder and farther, improving overall communication performance.

Constructed from high-quality materials and featuring a heavy-duty design, the RFD-Q273 is built to withstand strong winds and demanding outdoor conditions, ensuring reliable long-term operation.

Key Features:

  • Compact and lightweight design
  • High gain comparable to a 4-element Yagi
  • Ultra-low-noise reception for weak-signal work
  • Enhanced transmit performance and signal strength
  • Heavy-duty construction for high-wind environments
  • Made from premium-quality materials for durability and reliability
  • This antenna is an excellent choice for 11m CB enthusiasts seeking outstanding performance, durability, and ease of installation in a compact package.

Electrical Specifications

Bands/Frequency

11m/ 27 – 27.7 MHZ

Gain( Free Space)

8.9 dBi

F/B

20 dB

VSWR

< 2.1( 700 KHz)

Impedance

50 ohm

Power rating/Matching

3 kw+/ 1:1 Air core Choke

Radiation Pattern

Directional

Mechanical Specifications

Boom Length

3.64 m

Boom Dimension

38*38*2mm

Mounting Mast Diameter

50 mm

Reflector Corner Length( Longest)

3.96m

Connector

SO-239

Turning Radius(Vertical and Horizontal)

Vertical: 1.98m, Horizontal: 1.82m

Wind speed Survival

165 Km/h

Antenna Weight

Material used

Aluminium 6063 and 6061,SS-304, Industrial Grade Polyamide Clamp (Heavy Duty) & 2.5 Sq. MM PVC Enclosed Copper Wire
