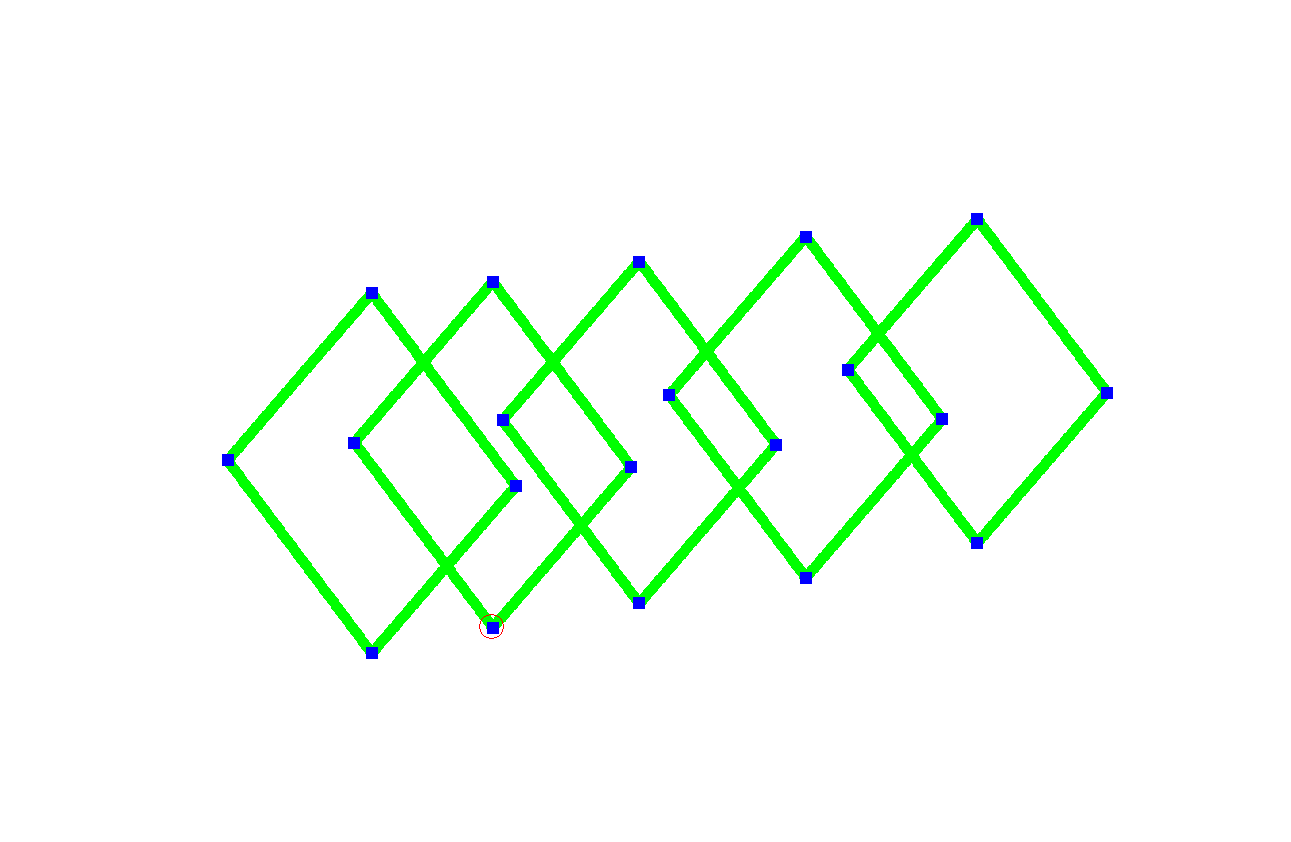

RFD-Q505, 50 MHZ (6M) 5 ELEMENTS QUAD ANTENNA

RFD-Q505, 50 MHZ (6M) 5 ELEMENTS QUAD ANTENNA

Regular price $400.00 USD
Regular price Sale price $400.00 USD
Sale Out of stock

Description

The RFD-Q505 is exceptionally high-gain 5-element quad antenna designed for the 6m band. Its ultra-low-noise characteristics help operators receive extremely weak signals with remarkable clarity. At the same time, the antenna's high gain ensures your transmitted signal is heard louder and farther, improving overall communication performance.

Constructed from high-quality materials and featuring a heavy-duty design, the RFD-Q505 is built to withstand strong winds and demanding outdoor conditions, ensuring reliable long-term operation.

Free Space

Performance at 10m AGL

SWR Plot

Electrical Specifications

Bands/Frequency

6m/ 50 – 51 MHZ

Gain( Free Space)

11.87 dBi

F/B

40 - 50  dB

VSWR

< 1.5( 800 KHz)

Impedance

50 ohm

Power rating/Matching

3 kw+/ 1:1 Maxwell Choke

Radiation Pattern

Directional

Mechanical Specifications

Boom Length

6 m

Boom Dimension

38*38*2mm + 30*30*1.6 mm

Mounting Mast Diameter

50 mm

Reflector Corner Length( Longest)

2.178 m

Connector

SO-239

Turning Radius(Vertical and Horizontal)

Vertical: 1.09m, Horizontal: 3m

Wind speed Survival

165 Km/h

Antenna Weight

12 kg

Material used

Aluminium 6063 and 6061,SS-304, Industrial Grade Polyamide Clamp (Heavy Duty) & 2.5 Sq. MM PVC Enclosed Copper Wire
