RF-DXING ANTENNA

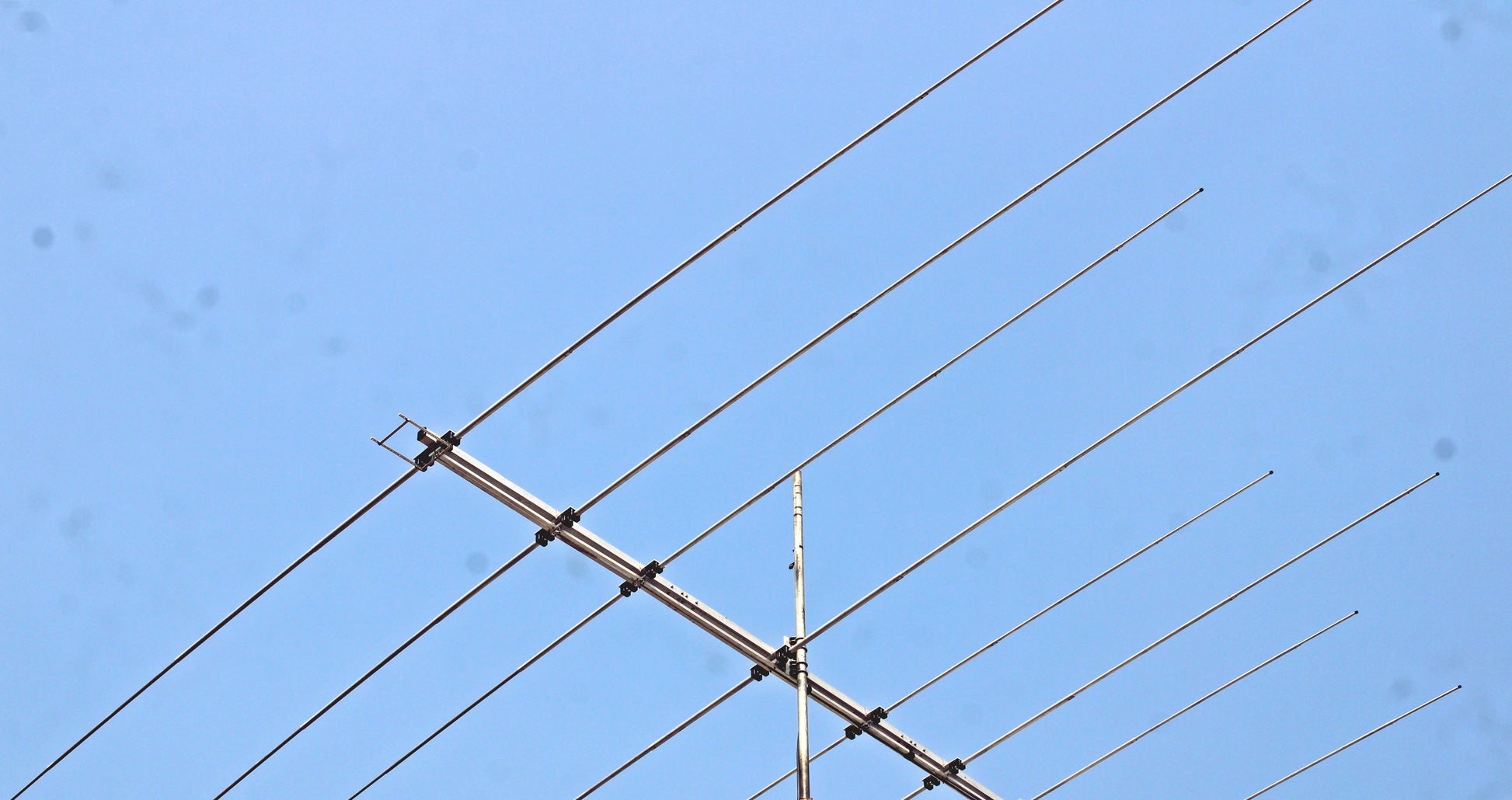

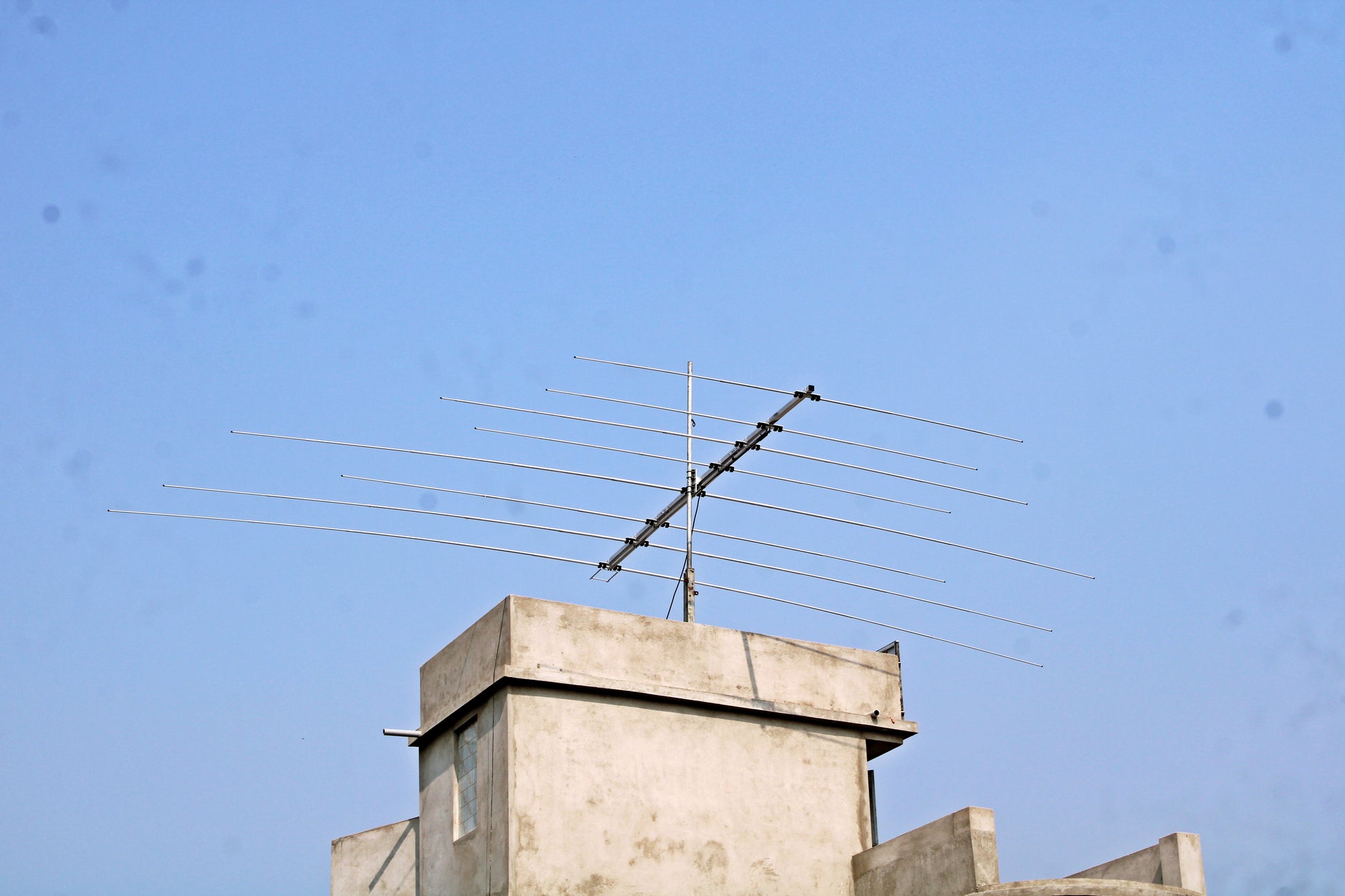

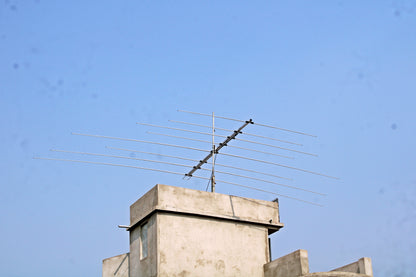

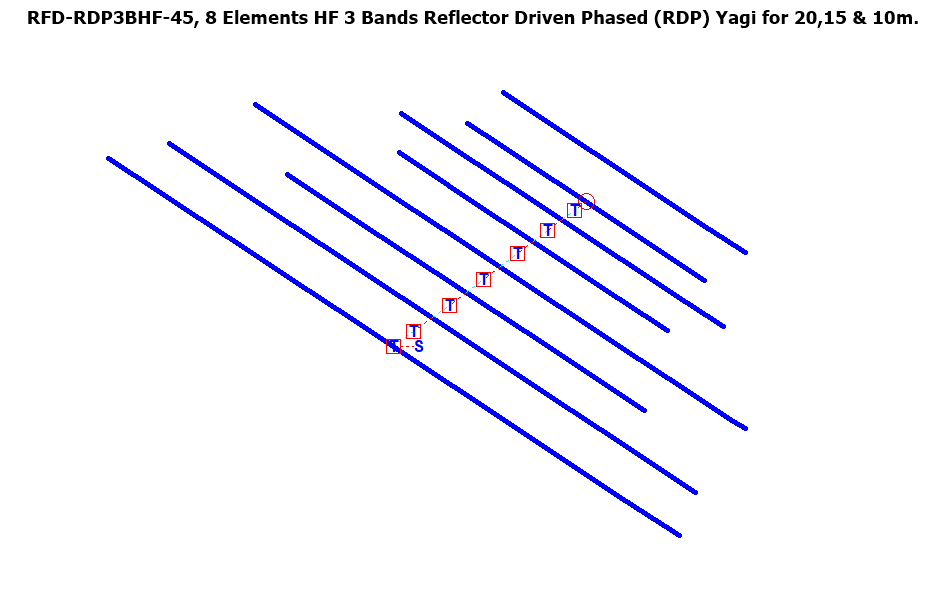

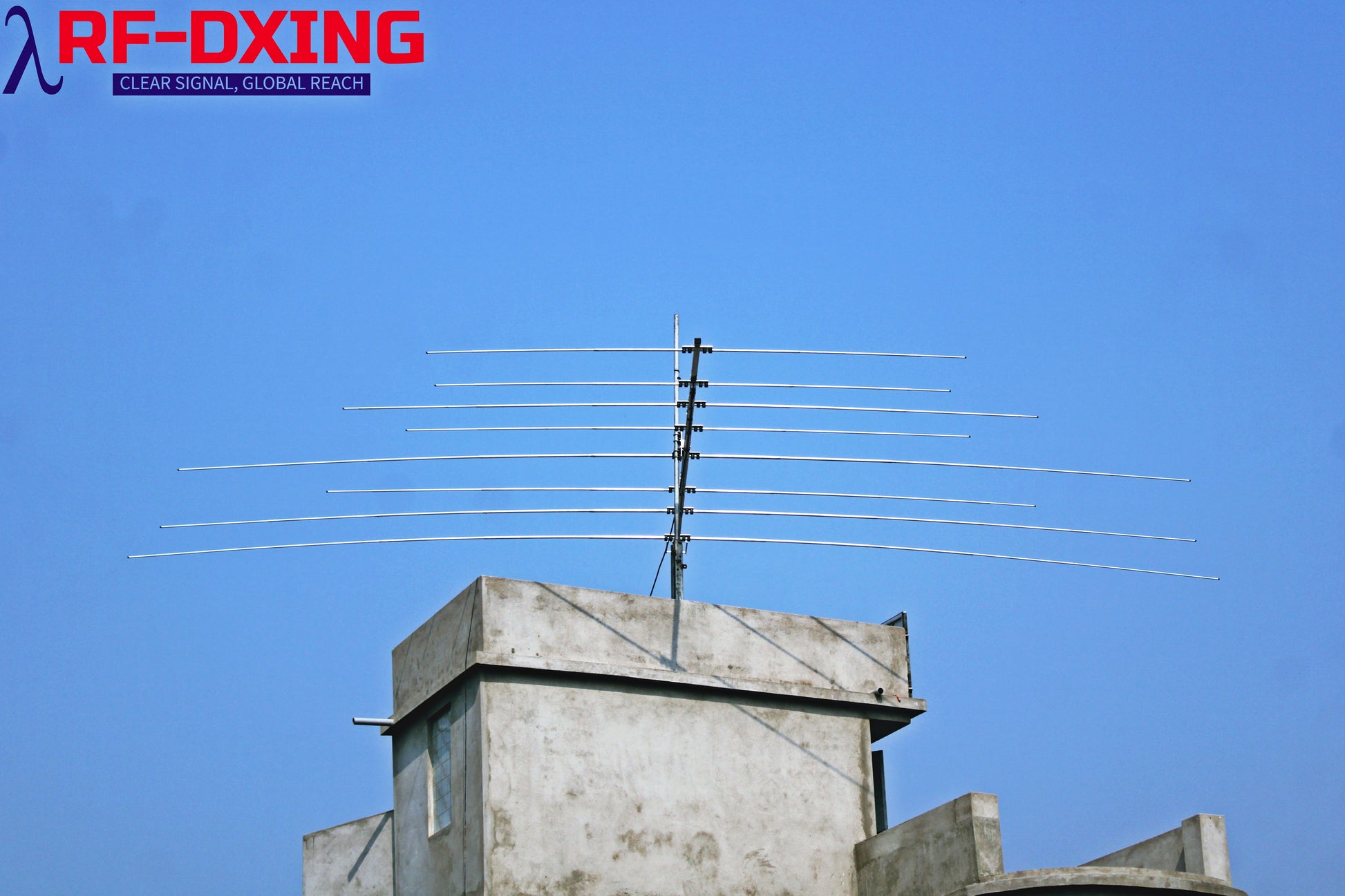

RFD-RDP3BHF-45, 8 Elements HF 3 Bands Reflector Driven Phased (RDP) Log-Yagi.

RFD-RDP3BHF-45, 8 Elements HF 3 Bands Reflector Driven Phased (RDP) Log-Yagi.

Regular price $1,390.00 USD
Regular price $0.00 USD Sale price $1,390.00 USD
Sale Out of stock
Made to order  — Production begins after order confirmation, with dispatch within 20-25 days.

.

Electrical Specifications

Bands/Frequency

20m/15m/10m

Gain( Free Space)

6.8 dBi/ 6.3 dBi/7.2 dBi

F/B

35 dB/ 20 dB/ 33 dB

VSWR

Less than 1.3 on all Bands

Impedance

50 ohm

Power rating/Matching

3 KW+/ 1:1 Maxwell choke

5 kw+/ 1:1 Aircore Choke

Radiation Pattern

Directional



Mechanical Specifications

Boom Length

5 m

Boom Dimension

50mm*50mm*2mm( 3 Sections)

Mounting Mast Diameter

1.5 Inch to 2 Inch

Longest Element

11.13 m

Tapered Elements

30 mm to 12 mm

Connector

SO-239

Turning Radius

5.57 m

Wind speed Survival

165 Km/h

Antenna Weight

40 Kg

Gross Weight Including Shipping Box

55 KG

Shipping Box Dimension

2m

Material used

Aluminum 6063,SS-304, Industrial Grade Polyamide Clamp (Heavy Duty)
