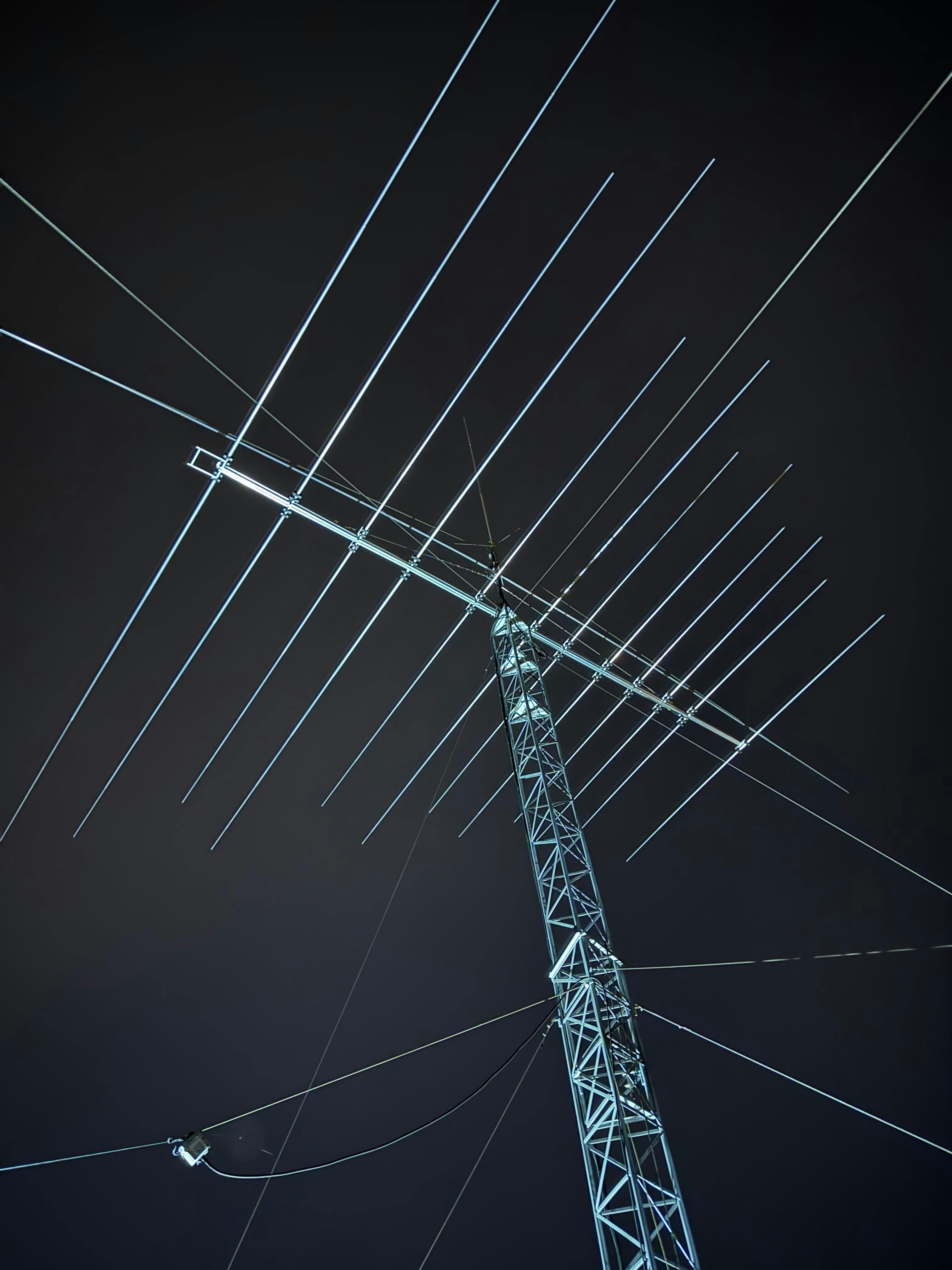

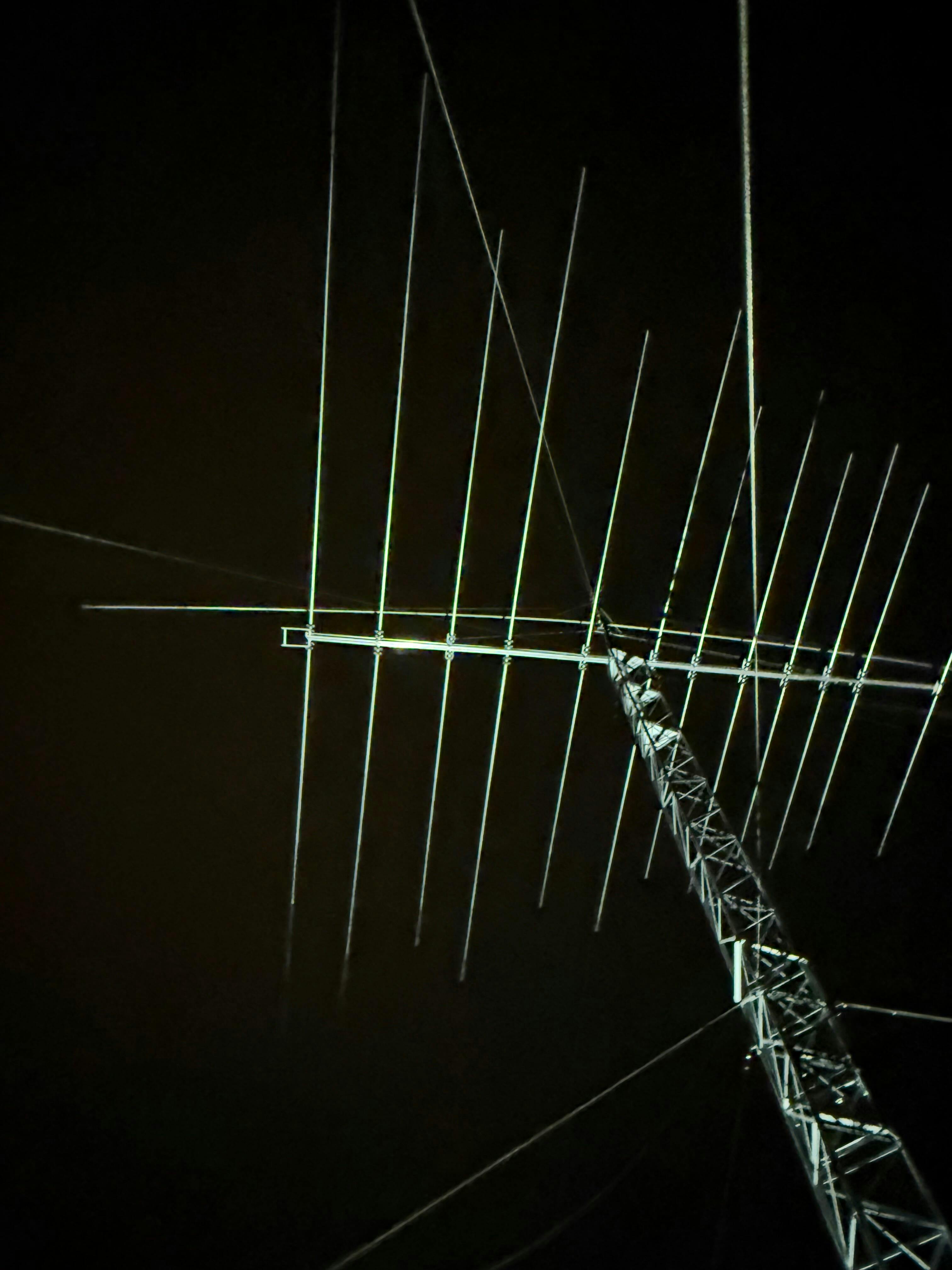

RFD-RDP5BHF-74, 12 Elements HF 5 Bands Reflector Driven Phased (RDP) Log-Yagi.
RFD-RDP5BHF-74, 12 Elements HF 5 Bands Reflector Driven Phased (RDP) Log-Yagi.
Couldn't load pickup availability
International Orders – Antenna Preparation & Payment Terms
We require 15 to 20 days to prepare antennas for international orders.
Please note that preparation time may vary depending on the antenna size.
For international buyers, we offer flexible payment options:
-
Option 1: Pay 50% in advance or any token amount, and the balance before shipping.
-
Option 2: Pay the full amount upfront, if preferred.
You’re free to choose the option that best suits your needs. Feel free to contact us with any questions or specific requirements.
Electrical Specifications
|
Bands/Frequency |
20m/17m/15m/12m/10m |
|
Gain( Free Space) |
7.05 dBi/ 7.07 dBi/7.32 dBi/7.07 dBi/7.31 dBi |
|
F/B |
35 dB/ 39 dB/ 39 dB/ 32 dB/ 30 dB |
|

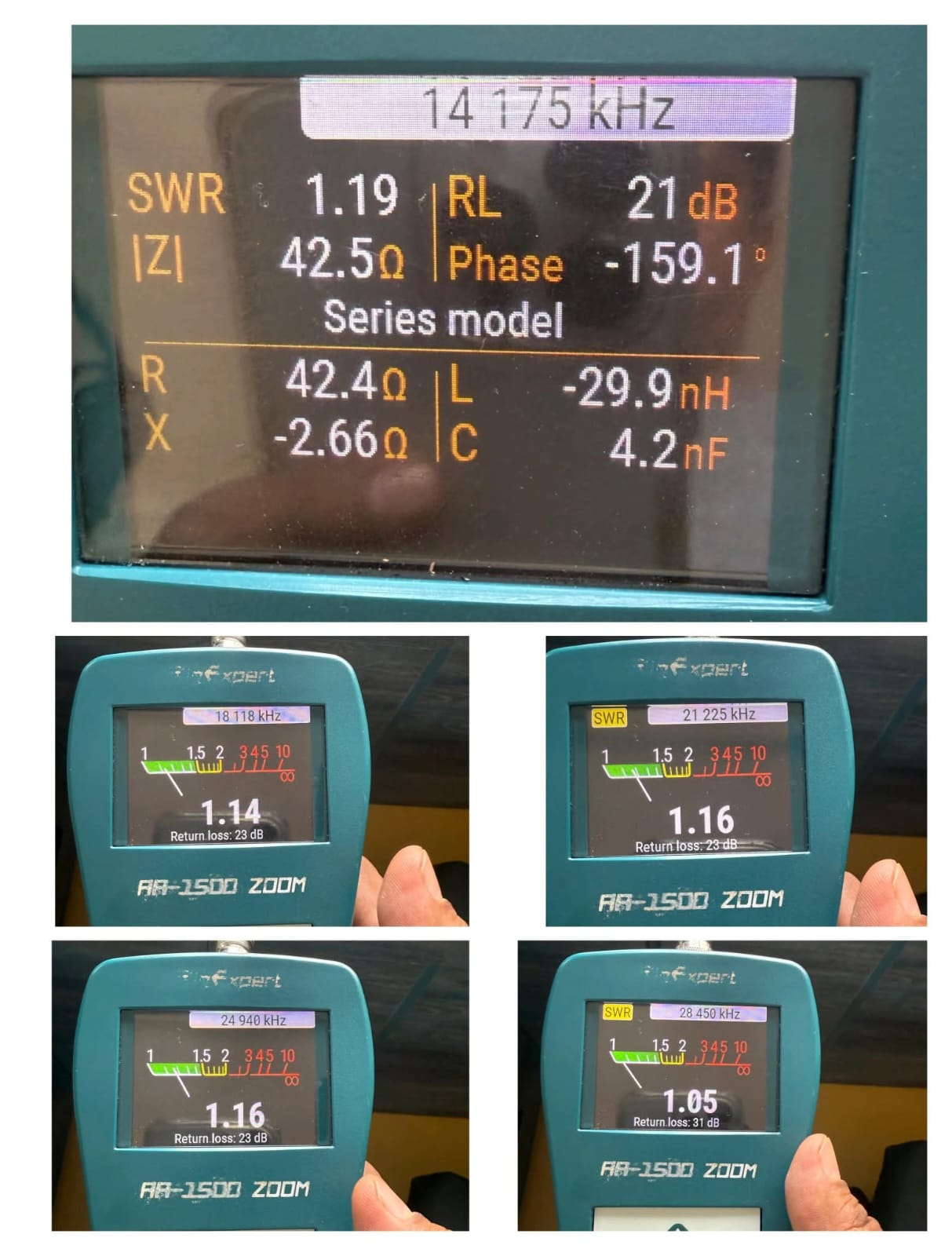

VSWR |
Less than 1.3 on all Bands |
|
Impedance |
50 ohm |
|
Power rating/Matching |
3 KW+/ 1:1 Maxwell choke |
|
Radiation Pattern |
Directional |
Mechanical Specifications
|
Boom Length |
7.45 m |
|
Boom Dimension |
50mm*50mm*5mm |
|
Mounting Mast Diameter |
1.5 Inch to 2 Inch |
|
Width of the Antenna |
11.36 m |
|
Tapered Elements |
35 mm to 12 mm |
|
Connector |
SO-239 |
|
Turning Radius |
5.68 m |
|
Wind speed Survival |
150 Km/h |
|
Antenna Weight |
60 Kg |
|

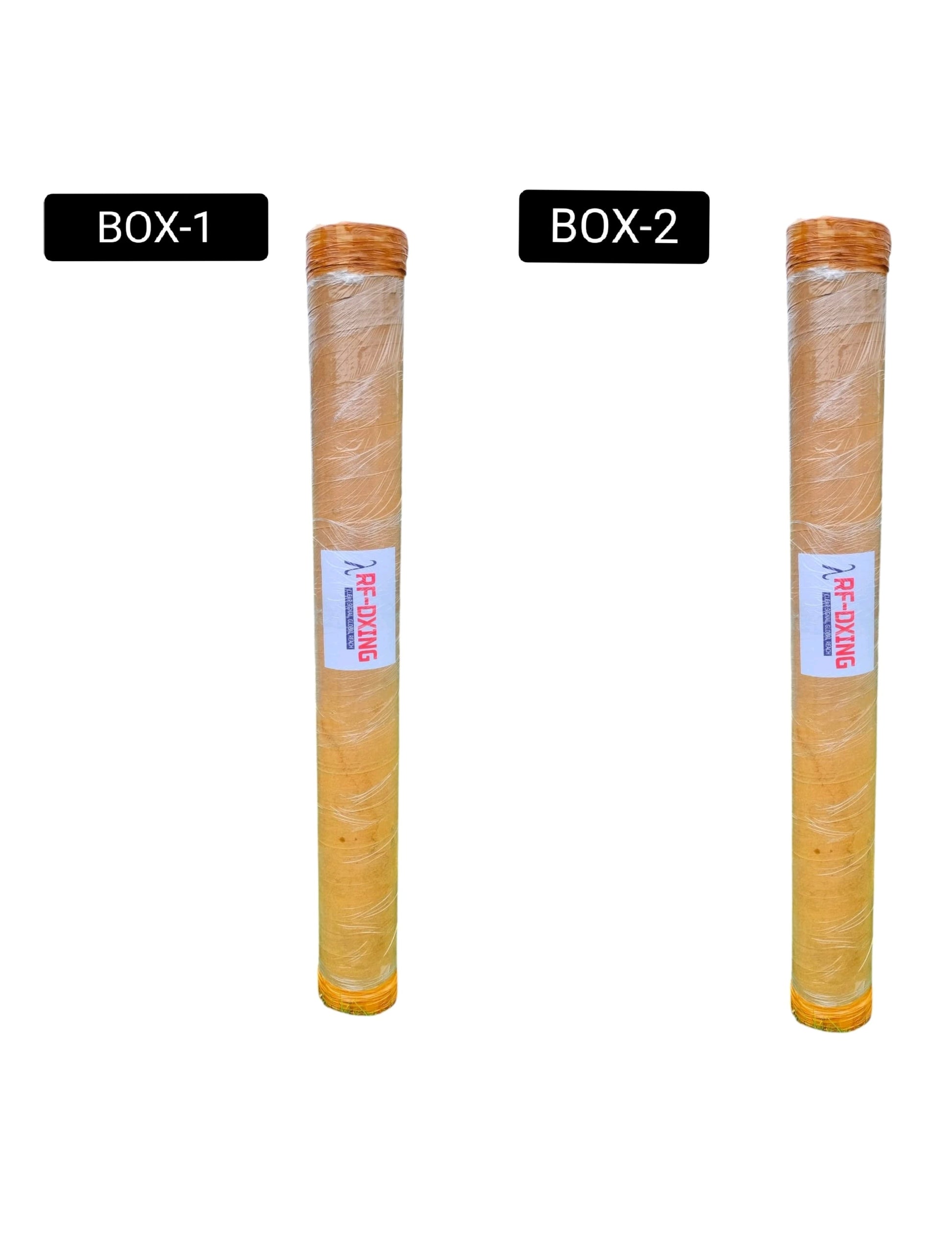

Shipping Box Dimension |
2.65 m |
|
Material used |
Aluminium 6063, 6061, SS-304, Industrial Grade Polyamide Clamp (Heavy Duty) |
Customer Reviews

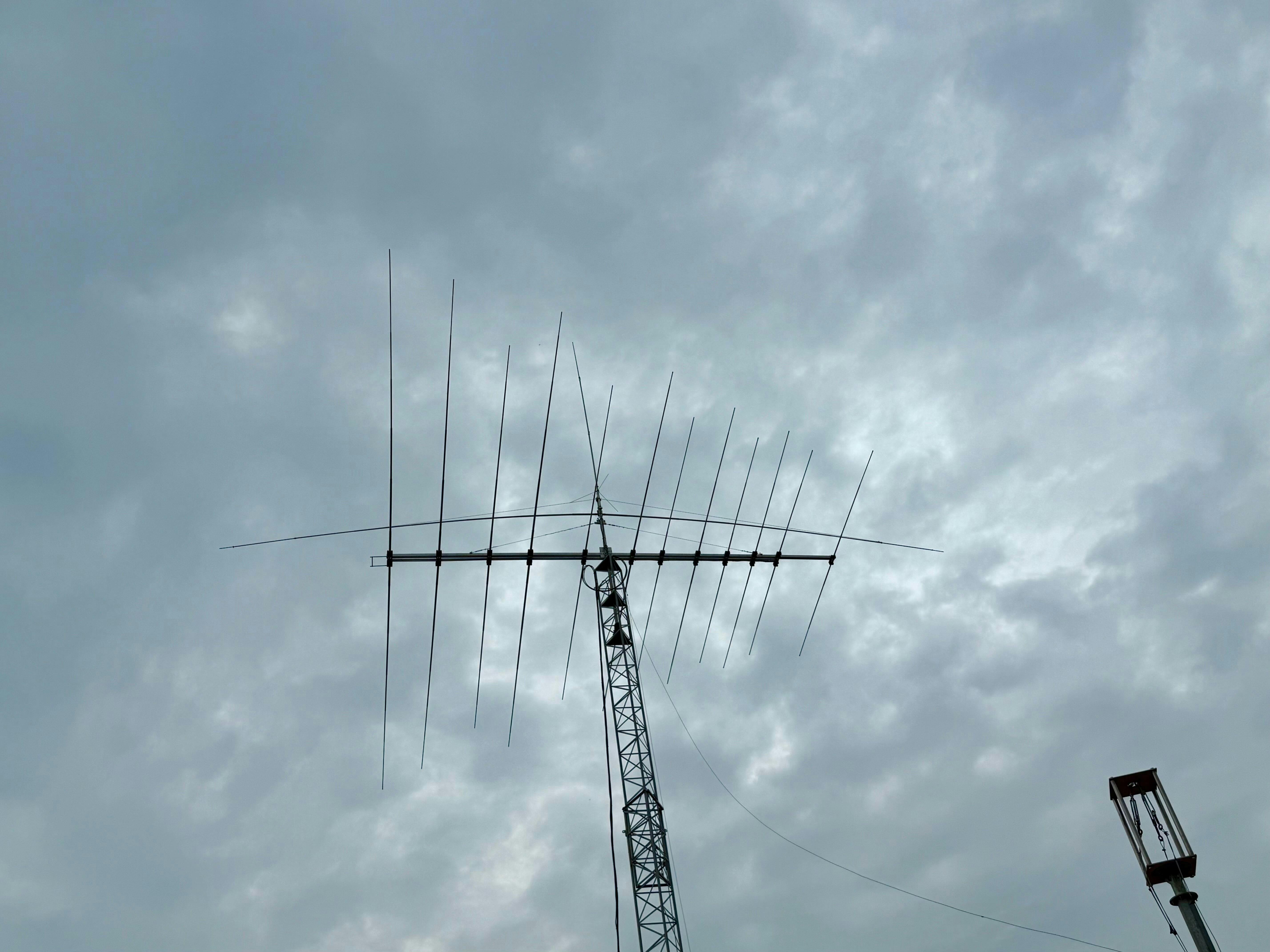

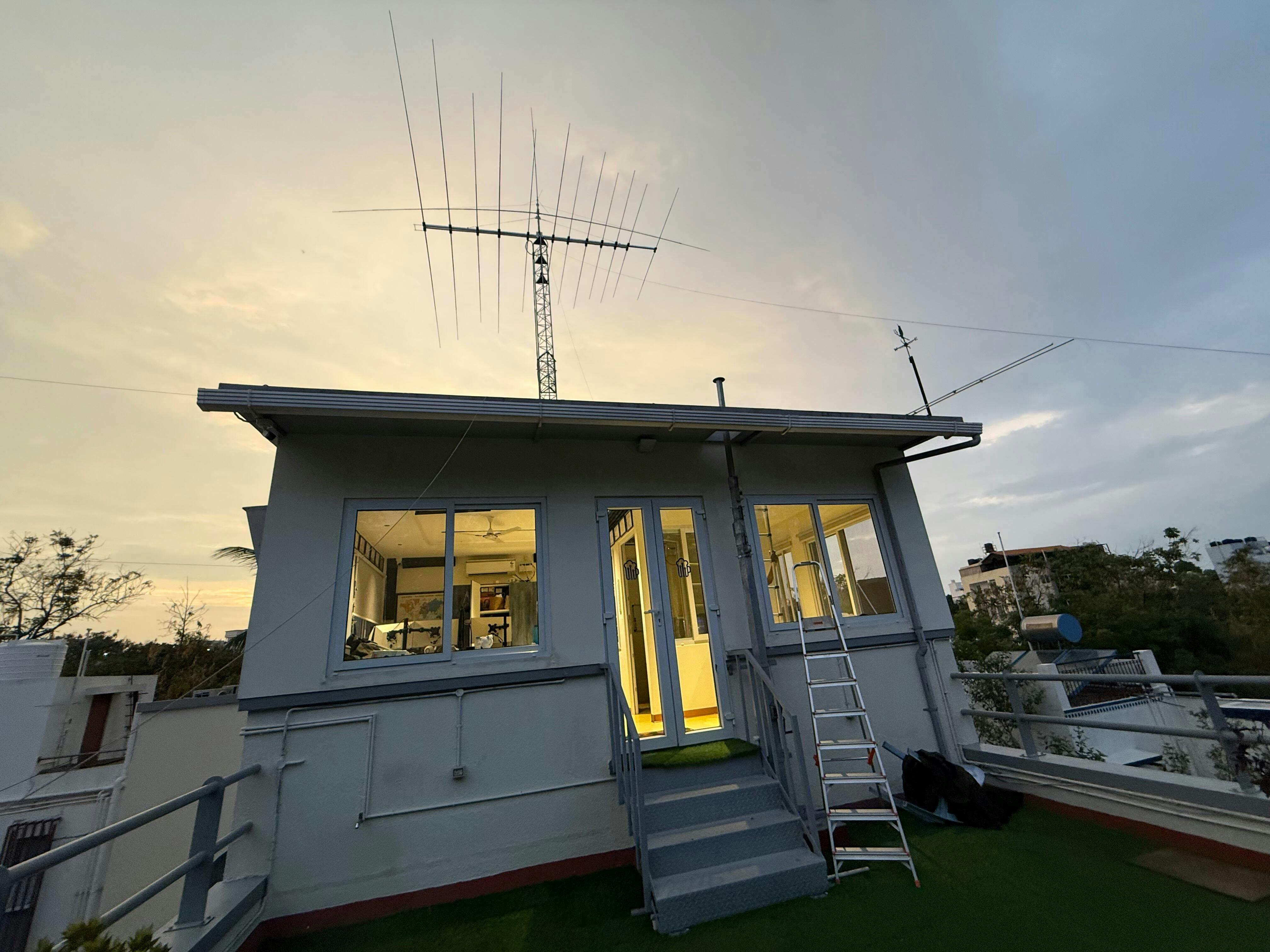

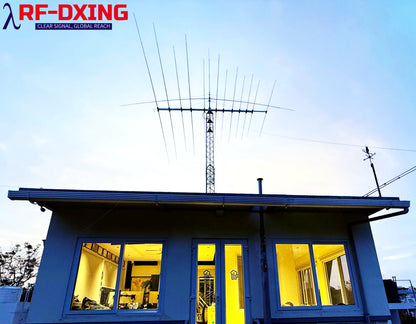

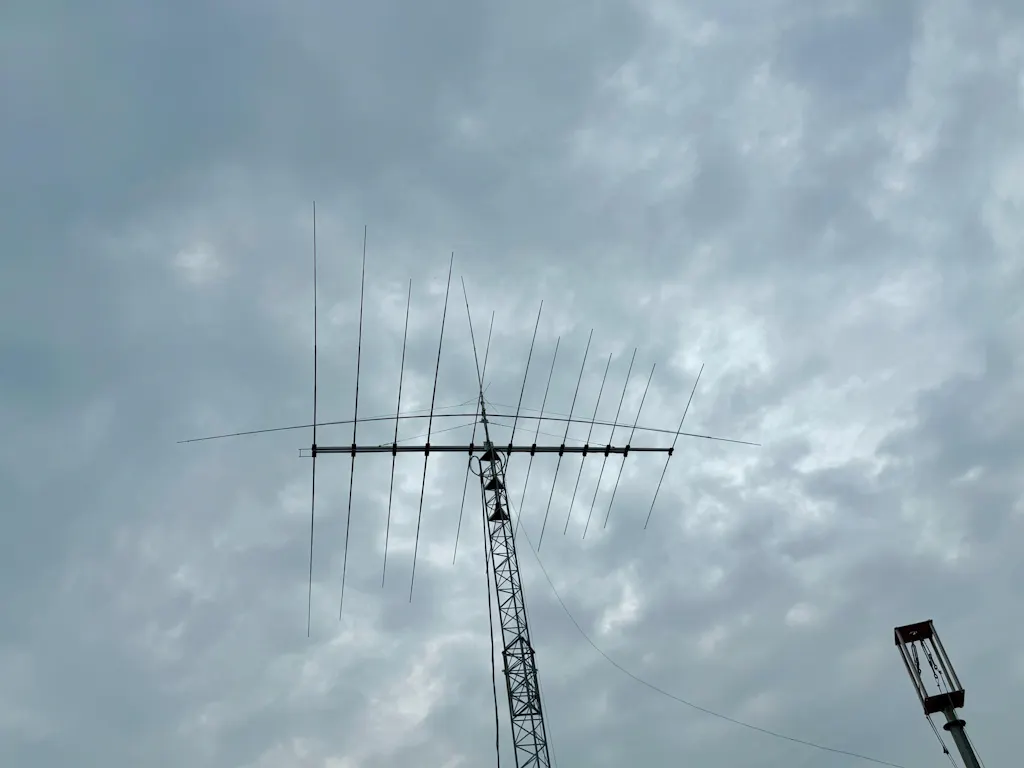

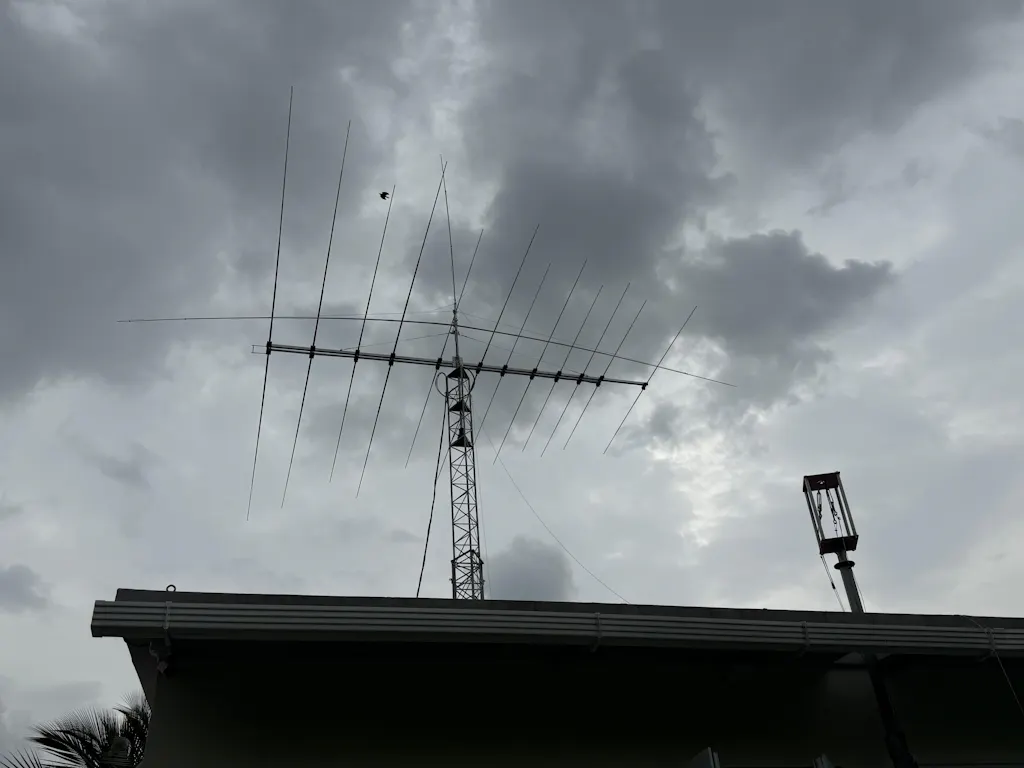

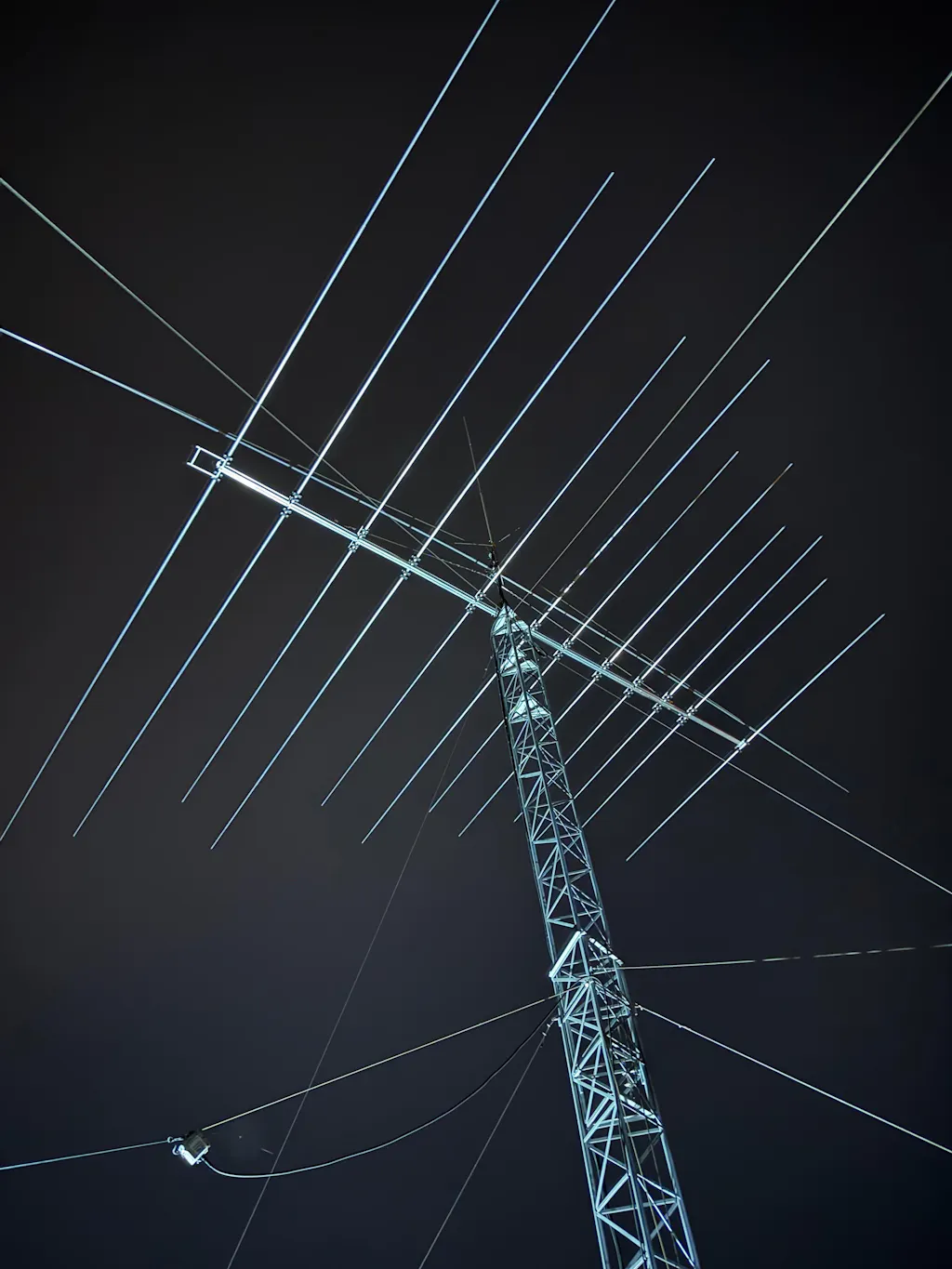

RFD-RDP5BHF-74, 12 Elements HF 5 Bands Reflector Driven Phased (RDP) Log-Yagi. Got this Log Yagi from RF Dxing and it was a fantastic decision to do that. This is installed on a 3 stage tower of 45 feet and a 10 foot stub mast. The tower itself is at about 40 feet above the ground level, making the total height almost 100' above ground. Its simply an amazing antenna and has completely changed my experience. I am now listening to weak stations from EU and W land 55/56 regularly. Ive logged 8 new countries in the last one week and am extremely happy to say this antenna is awesome. Also the build quality- this is built like a tank, weighing in at about 60-65 kilos, its has a fantastic fit and finish. Most importantly i was told that the swr will be all 1:1 and it was when we installed it!! Big congratulations to Debashish and RF Dxing for a superlative antenna!! Well done. Hari - VU2UCR
Hi Hari! Thank you so much for taking the time to leave such a positive review for our RFD-RDP5BHF-74 Log Yagi. We're thrilled to hear that it has greatly improved your experience and allowed you to log new countries. We're also glad to hear that the build quality and SWR were as expected. We truly appreciate your support and thank you for choosing RF Dxing. Happy listening! - Debashish and the RF Dxing team.
