RF-DXING ANTENNA

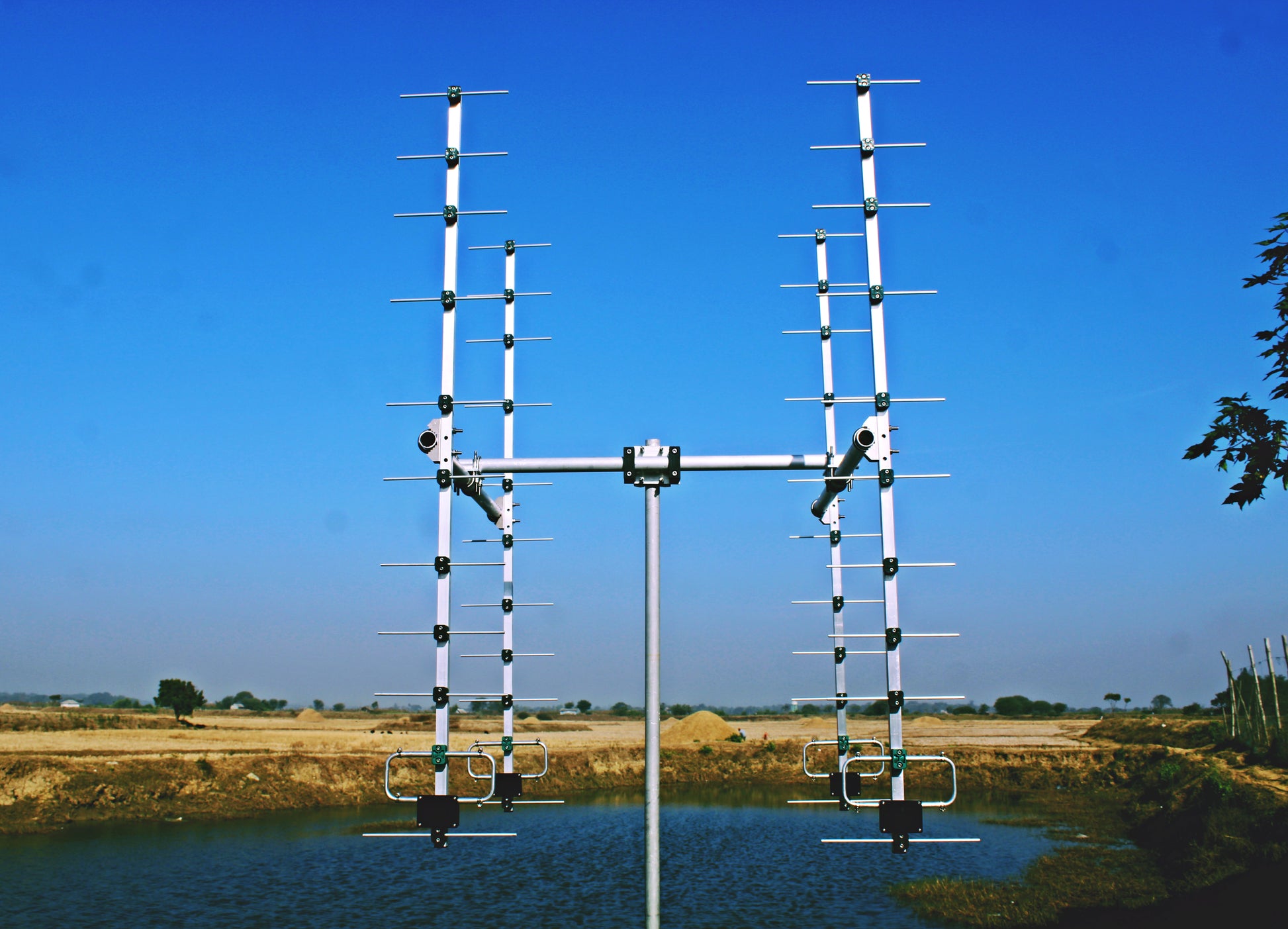

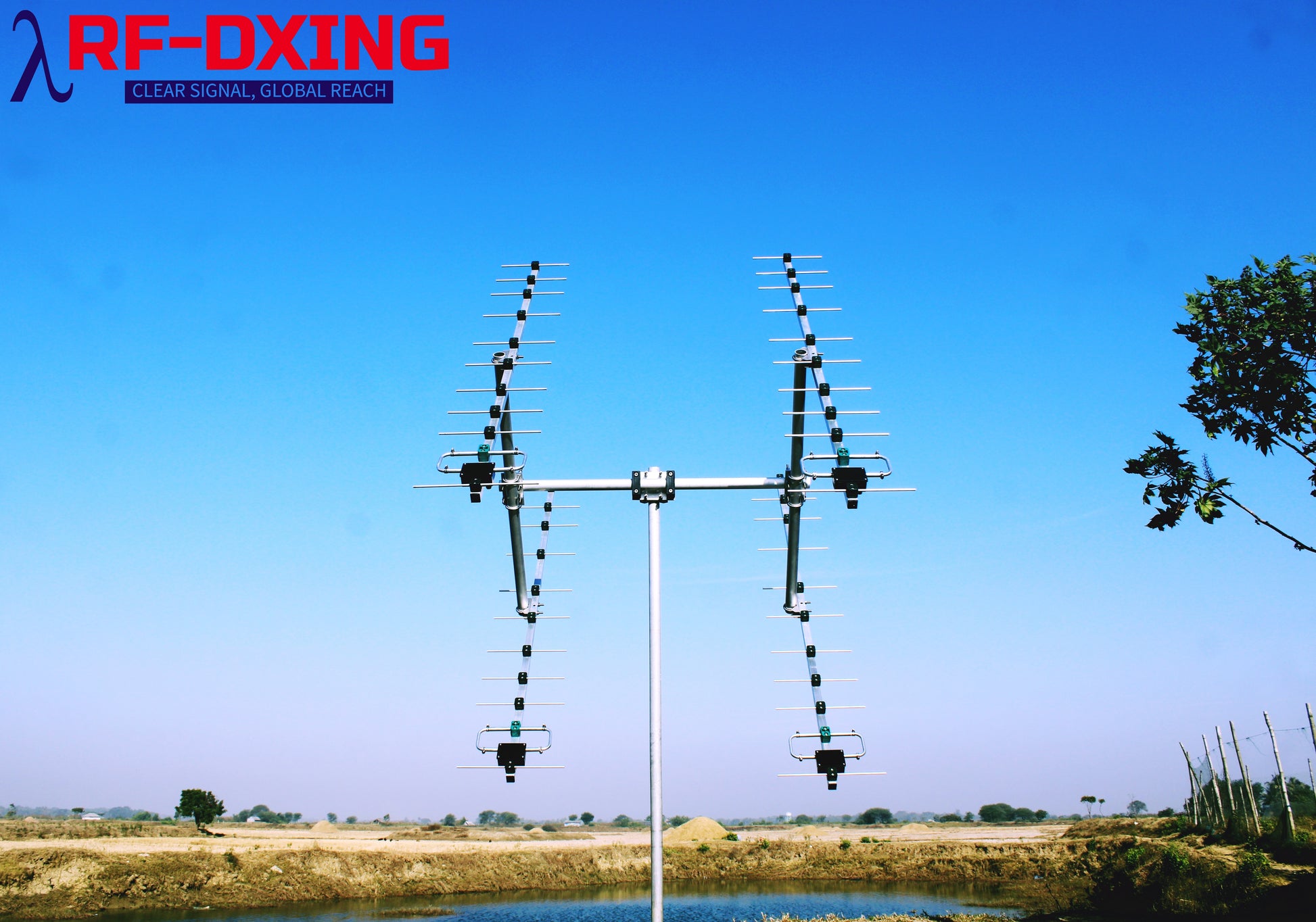

RFD-S4U, 4 Stacked UHF 11 Elements RFL Yagi Package For EME.

RFD-S4U, 4 Stacked UHF 11 Elements RFL Yagi Package For EME.

Regular price $390.00 USD
Regular price Sale price $390.00 USD
Sale Out of stock

Electrical Specifications

Bands/Frequency

70cm Band/ 430 - 440 MHz

Gain( Total 4 Stacked)

20.12 dBi( Free Space/ 24.32 dBi @ 2m AGL

F/B

27-30 dB

VSWR

Less than 1.5 (8 MHz)

Impedance

50 ohm

Power rating/Matching

900 Watts/ 1:1  choke RG142

Radiation Pattern

Directional

G/T

+8.5 dB/K



Mechanical Specifications

Each Antenna Boom Length

1.8 m

Boom Dimension

25mm*25mm*1.6mm

H-Frame Dimension

Vertical and Horizontal Stacking Distance: 1m, Made with 40mm OD Aluminium Tube, Thickness 2 mm

Connector

N-Type

Turning Radius

0.9m

Wind speed Survival

175 Km/h

Total Structure Weight

12 kg

Gross Weight Including Shipping Box

14 kg

Shipping Box Dimension

1.85 m

Material used

Aluminium 6063, 6061, SS-304, Industrial Grade PP Clamp and Injection moulded ABS DE Box



Package Contains

Product Name

Quantity

11 Elements UHF RLF Yagi

4 Unit

H-Frame

1 Unit

Power Divider/Combiner

1 Unit

Connecting Cables

4 Pieces( LMR-400)

Manual

1
