RFD-MXY3B-45, HF Triband Moxon-Yagi for 20m, 15m and 10m.

RFD-MXY3B-45, HF Triband Moxon-Yagi for 20m, 15m and 10m.

Regular price $837.00 USD
Regular price $1,047.00 USD Sale price $837.00 USD
Sale Out of stock

Description

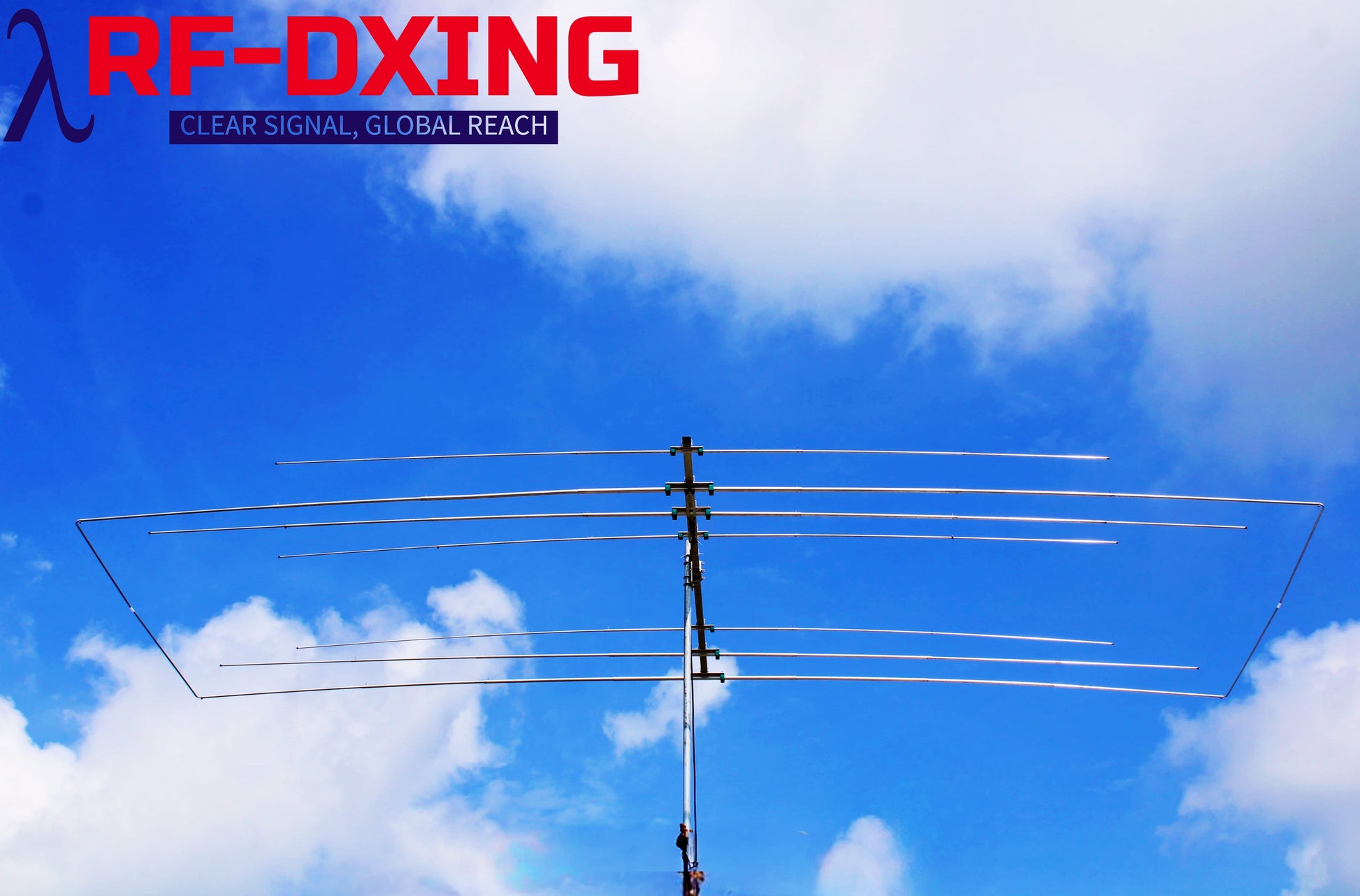

RFD-MXY3B-45 is a super compact 7 elements HF Triband yagi with Boom length is just 3.3 Meter and width is 26.5 feet. The antenna is perfect combination of yagi and Moxon. With carefully hours of optimization process for best possible gain , F/B and Lowest SWR the antenna becomes a prefect blend of yagi and Moxon that will deliver highest performance in the real world.

The antenna is heavy duty construction with highest quality materials for lifetime use. If you are looking for a Hf triband yagi with high performance and small size then this model is really a perfect choice. Its a full size antenna with no traps and loading coil so that no loss in the system. Due to Multi Driven feeding method, all bands work efficiently with no pattern distortion and same amount of power transfer to each driven elements. So RFD-MXY3B-45 is not only a small size antenna but also its perfect choice for serious dxing and contesting.

Free Space Performance result @ 14.190 MHz (11.2+ dBi Gain at 15m AGL)



















Free Space Performance result @ 21.180 MHz (11.49+ dBi Gain at 15m AGL)



















Free Space Performance result @ 28.500 MHz (12.34+ dBi Gain at 15m AGL)



















Electrical Specifications

Bands/Frequency

  • 20m Band(14-14.35 MHz)
  • 15m Band(21-21.450 MHz)
  • 10m Band( 28-29 MHz)

Gain( Free Space)

  • 6.1 dBi (Peak: 6.38 dBi) at 20m Band
  • 6.24 dBi (Peak: 6.63 dBi) at 15m Band
  • 6.81 dBi (Peak: 7.1 dBi) at 10m Band

F/B

  • 25 dB(Peak: 30 dB) at 20m Band
  • 11.36 dB(Peak: 12 dB) at 15m Band
  • 30 dB(Peak: 36 dB) at 10m Band

VSWR

Less than 1.4 at 20m, less than 1.5 at 15m & less than 1.3 at 10m

SWR Bandwidth(1:1.5): 700 KHz at 20m, 500 KHz at 15m and 900 KHz at 10m

Impedance

50 ohm

Power rating/Matching

3 KW+/ 1:1 Maxwell choke

Radiation Pattern

Directional



Mechanical Specifications

Boom Length

3.3 m

Boom Dimension

50mm*50mm*3mm

Mounting Mast Diameter

1.5 Inch to 2 Inch

Width of the Antenna

8.1 m

Tapered Elements

25 mm to 12 mm

Connector

SO-239

Turning Radius

4.5 m

Wind speed Survival

150 Km/h

Antenna Weight

25 Kg

Gross Weight Including Shipping Box

27 Kg

Shipping Box Dimension

1.85 m

Material used

Aluminum 6063, 6061, SS-304, Industrial Grade Polyamide Clamp (Heavy Duty)



Order processing Time

  • International: 30 days
  • Domestic: 25 days
